V7 Dual Bay Docking Station USB 3.0 Instruction Manual

Isingeniso

This manual provides comprehensive instructions for the setup, operation, and maintenance of your V7 Dual Bay Docking Station USB 3.0. This device is designed to provide convenient access to 2.5-inch and 3.5-inch SATA hard disk drives (HDDs) and solid-state drives (SSDs), offering high-speed data transfer and a standalone cloning function.

Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.

Okuqukethwe Kwephakheji

Image: The side of the V7 Dual Bay Docking Station packaging, detailing the included items.

Qinisekisa ukuthi zonke izinto ezibalwe ngezansi zikhona ephaketheni lakho:

• 1x V7 Dual Bay Docking Station
• 1x USB 3.0 A to B Cable
• 1x DC 12V/3A Power Adapter
• 1x Incwadi Yomsebenzisi (le dokhumenti)

Umkhiqizo Uphelileview

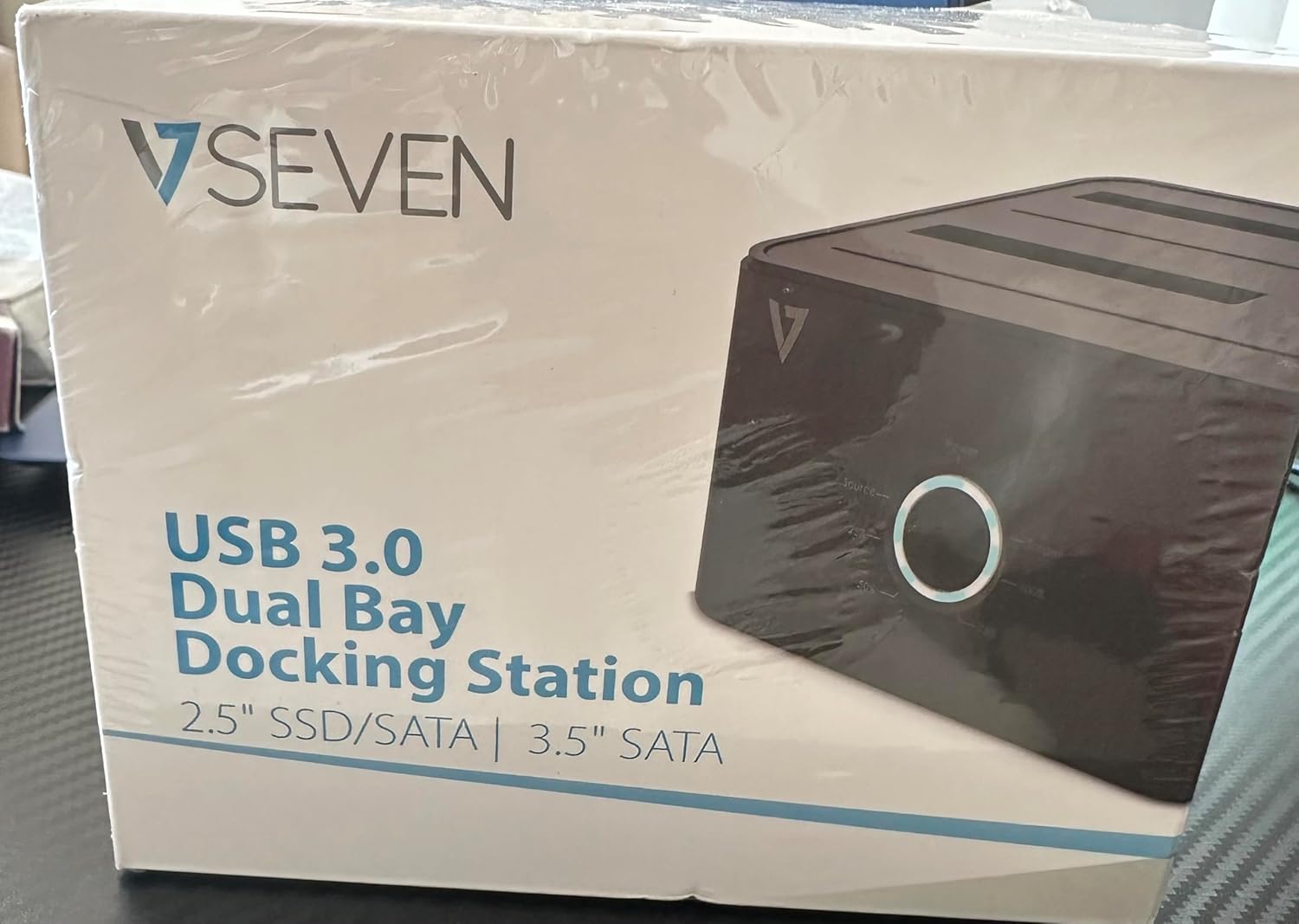

Image: The front of the V7 Dual Bay Docking Station packaging, displaying the product and its name.

The V7 Dual Bay Docking Station provides a versatile solution for managing your 2.5-inch and 3.5-inch SATA drives. Key features include:

• USB 3.0 Super-Speed Data Transfer: Achieves speeds up to 5 Gbps, significantly faster than USB 2.0.
• Dual Bay Design: Supports two SATA I/II/III HDDs or SSDs simultaneously.
• Standalone Clone Function: Allows direct cloning of one drive to another without requiring a computer.
• Ukuboniswa kwe-LED: Provides status indication during operation, especially for cloning.
• Izinto Ezigaywe Kabusha: Constructed with recycled materials, contributing to environmental sustainability.

Image: The back of the V7 Dual Bay Docking Station packaging, illustrating key features and benefits, including the use of recycled materials.

Amachweba Nezinkomba:

• USB-B Port (1x): Connects the docking station to your computer.
• SATA Drive Bays (2x): For inserting 2.5-inch or 3.5-inch SATA HDDs/SSDs.
• DC Power Input (1x): For connecting the 12V/3A power adapter.
• Power Button/LED: Controls power and indicates operational status.
• Clone Button/LEDs: Initiates the cloning process and indicates progress.

Setha

1. Xhuma Amandla: Insert the DC 12V/3A power adapter into the "DC Power Input" port on the docking station, then plug the adapter into a wall outlet.
2. Faka Amadrayivu:
   • Gently slide your 2.5-inch or 3.5-inch SATA HDD/SSD into the drive bay(s) until it is securely seated. Ensure the SATA connector aligns correctly.
   • For cloning, insert the source drive into Bay 1 (Source) and the target drive into Bay 2 (Target). The target drive must be equal to or larger in capacity than the source drive.
3. Connect to Computer (for data transfer): If you intend to use the docking station for data transfer with a computer, connect one end of the USB 3.0 A to B cable to the USB-B port on the docking station and the other end to an available USB 3.0 port on your computer.
4. Vula: Press the power button on the docking station. The power LED should illuminate.

Imiyalelo yokusebenza

A. Data Transfer Mode (Connected to Computer)

1. Ensure the docking station is powered on and connected to your computer via the USB 3.0 cable.
2. Insert one or two SATA drives into the bays.
3. Your operating system should detect the drives as external storage. You may need to initialize and format new drives through Disk Management (Windows) or Disk Utility (macOS) before use.
4. You can now access, read, and write data to the inserted drives as you would with any external storage device.
5. Always safely eject the drives from your operating system before powering off the docking station or removing the drives.

B. Standalone Clone Function (Without Computer)

The clone function allows you to duplicate a source drive to a target drive without a computer connection. The target drive must have a capacity equal to or greater than the source drive.

1. Ukulungiselela:
   • Qinisekisa ukuthi isiteshi sokumisa asixhunyiwe kunoma iyiphi ikhompyutha.
   • Faka i Umthombo IDrayivu (the drive you want to copy FROM) into Ibhayi 1.
   • Faka i I-Target Drive (the drive you want to copy TO) into Ibhayi 2.
   • Warning: All data on the target drive will be erased during the cloning process. Back up any important data on the target drive before proceeding.
2. Initiate Clone:
   • Amandla esiteshini sedokhi.
   • Press and hold the "Clone" button for approximately 3-5 seconds until the clone progress LEDs begin to flash.
3. Confirm Clone:
   • Release the "Clone" button. The 25% progress LED should start blinking.
   • Press the "Clone" button again briefly to confirm and start the cloning process.
4. Gada inqubekelaphambili: The progress LEDs (25%, 50%, 75%, 100%) will illuminate sequentially to indicate the cloning status.
5. Ukuqedwa: When the 100% LED remains solid, the cloning process is complete.
6. Power Off and Remove: Power off the docking station before removing the drives.

Isondlo

• Gcina indawo yokumisa imikhumbi ihlanzekile futhi ingenalo uthuli. Sebenzisa indwangu ethambile neyomile ukuze uyihlanze.
• Gwema ukubeka idivayisi emazingeni okushisa aphezulu, umswakama, noma elangeni eliqondile.
• Ungazami ukuyiqaqa noma ukuyilungisa ngokwakho idivayisi. Lokhu kuzosusa iwaranti.
• Qinisekisa ukuthi kungena umoya ofanele eduze kwedivayisi ngesikhathi sokusebenza.

Ukuxazulula inkinga

Imininingwane

• Imodeli: 9UDBBS-BLK
• I-Hardware Interface: I-USB 3.0 (emuva iyahambisana ne-USB 2.0)
• Isivinini Sokudluliswa Kwedatha: Up to 5 Gbps (USB 3.0 Super-Speed)
• Ukuhambisana KweDrayivu: 2.5" and 3.5" SATA I/II/III HDDs and SSDs
• I-Drive Bays: 2
• Amachweba: 1x USB-B (Host), 2x SATA (Internal), 1x DC Power Input
• Okokufaka kwamandla: DC 12V/3A (12 Watts)
• I-UPC: 662919116557
• Umkhiqizi: Ingram Micro Inc
• Okubalulekile: Made from Recycled Materials

Iwaranti kanye Nokusekela

For warranty information and technical support, please refer to the official V7 webisayithi noma uxhumane nomthengisi wakho. Gcina ubufakazi bakho bokuthenga ngezimangalo zewaranti.

Ukuze uthole olunye usizo, sicela uvakashele: www.v7world.com/support (Eksampisixhumanisi, isixhumanisi sangempela singahluka)
