Napoleon 485 Propane Gas Grill User Manual

Isingeniso

This manual provides essential information for the safe and efficient use of your Napoleon 485 Propane Gas Grill. Please read all instructions carefully before assembly, operation, or maintenance to ensure proper function and safety.

Ulwazi Lokuphepha Olubalulekile

• Always operate the grill outdoors in a well-ventilated area.
• Gcina izingane nezilwane ezifuywayo kude ne-grill ngesikhathi sokusebenza.
• Ungagcini noma usebenzise uphethiloli noma omunye umhwamuko ovuthayo noketshezi eduze kwalesi noma esinye isisetshenziswa.
• Ensure all gas connections are tight and leak-free before use.
• Ungalokothi ushiye i-grill ekhanyayo ingagadiwe.
• Refer to local codes and regulations for installation and use.

Ukusetha nokuhlanganisa

The Napoleon 485 Propane Gas Grill requires assembly. Follow the steps below for proper setup. It is recommended to have two people for assembly.

Ukuqaqa kanye Nokuhlola Ingxenye

Carefully remove all components from the packaging. Verify that all parts listed in the included parts diagram are present and undamaged. Report any missing or damaged parts to Napoleon customer service before proceeding with assembly.

Izinyathelo Zomhlangano

1. Base Cabinet Assembly: Assemble the base cabinet structure, ensuring all panels and supports are securely fastened. The cabinet provides storage and houses the propane tank.
2. Caster Wheel Installation: Attach the Easy Roll locking caster wheels to the base of the cabinet. Ensure they are securely tightened for stability and mobility.
3. Burner Box and Control Panel Attachment: Mount the main burner box and control panel assembly onto the base cabinet. Connect all gas lines and electrical components as per the detailed diagrams in the separate assembly guide.
4. Side Shelf Installation: Attach the stainless steel side shelves to the main grill body. These shelves include built-in tool hooks and condiment holders.
5. I-Lid Assembly: Secure the double-walled Lift Ease stainless steel lid to the main grill body. Ensure the hinges operate smoothly.
6. Cooking Grids and Heat Distribution Plates: Place the porcelainized cast iron WAVE cooking grids and heat distribution plates inside the burner box.
7. Ukuxhumeka kwe-Propane Tank: Connect the propane tank to the grill's gas line, ensuring a tight seal. Perform a leak test before initial use.

Umfanekiso 1: Ngaphambili view of the assembled Napoleon 485 Propane Gas Grill with the lid closed, showcasing the stainless steel construction and control panel.

Umfanekiso 2: Ngaphambili view of the Napoleon 485 Propane Gas Grill with the cabinet doors open, revealing the propane tank storage area and internal components.

Imiyalelo yokusebenza

Uhlu Lokuhlola Ngaphambi Kokusebenza

• Ensure the propane tank is full and properly connected.
• Check for any gas leaks using a soapy water solution on connections.
• Confirm the grill is on a level, stable surface.
• Vula isivalo se-grill ngaphambi kokukhanyisa noma yiziphi izimbawula.

Igniting the Burners (JETFIRE Ignition System)

1. Vula isivalo se-grill.
2. Turn on the gas supply at the propane tank valve.
3. Push in and turn one of the ergonomic control knobs to the HIGH position.
4. The Instant JETFIRE Ignition System will shoot a flame to light the burner. You should hear a "click" and see the burner ignite.
5. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes, and repeat the process.
6. Once the first burner is lit, you can light additional burners by pushing in and turning their respective control knobs to HIGH. The crossover lighting feature will ignite adjacent burners.

Ukulawula izinga lokushisa

The ergonomic control knobs allow for precise temperature adjustment. Turn the knobs between HIGH and LOW settings to achieve desired cooking temperatures. The double-walled lid helps retain heat for consistent cooking.

Cooking with WAVE Cooking Grids

The porcelainized cast iron WAVE cooking grids provide excellent heat distribution and retention, creating signature sear marks. Preheat the grill for 10-15 minutes on medium-high heat before placing food on the grids.

Isondlo

Cleaning the Cooking Grids

• After each use, while the grill is still warm, use a grill brush to remove food residue from the porcelainized cast iron WAVE cooking grids.
• For deeper cleaning, remove the grids and wash with warm soapy water. Rinse thoroughly and dry completely before reinstalling.

Ukuhlanza Kwangaphandle

• Wipe down stainless steel surfaces with a soft cloth and a stainless steel cleaner.
• Hlanza izindawo ezipendiwe ngensipho ethambile namanzi.
• Regularly inspect the grease tray and clean as needed to prevent flare-ups.

Ukuhlolwa Konyaka

• Inspect all gas hoses and connections for cracks, cuts, or excessive wear. Replace if necessary.
• Check burner ports for blockages and clean with a wire brush if needed.
• Ensure the ignition system is functioning correctly.

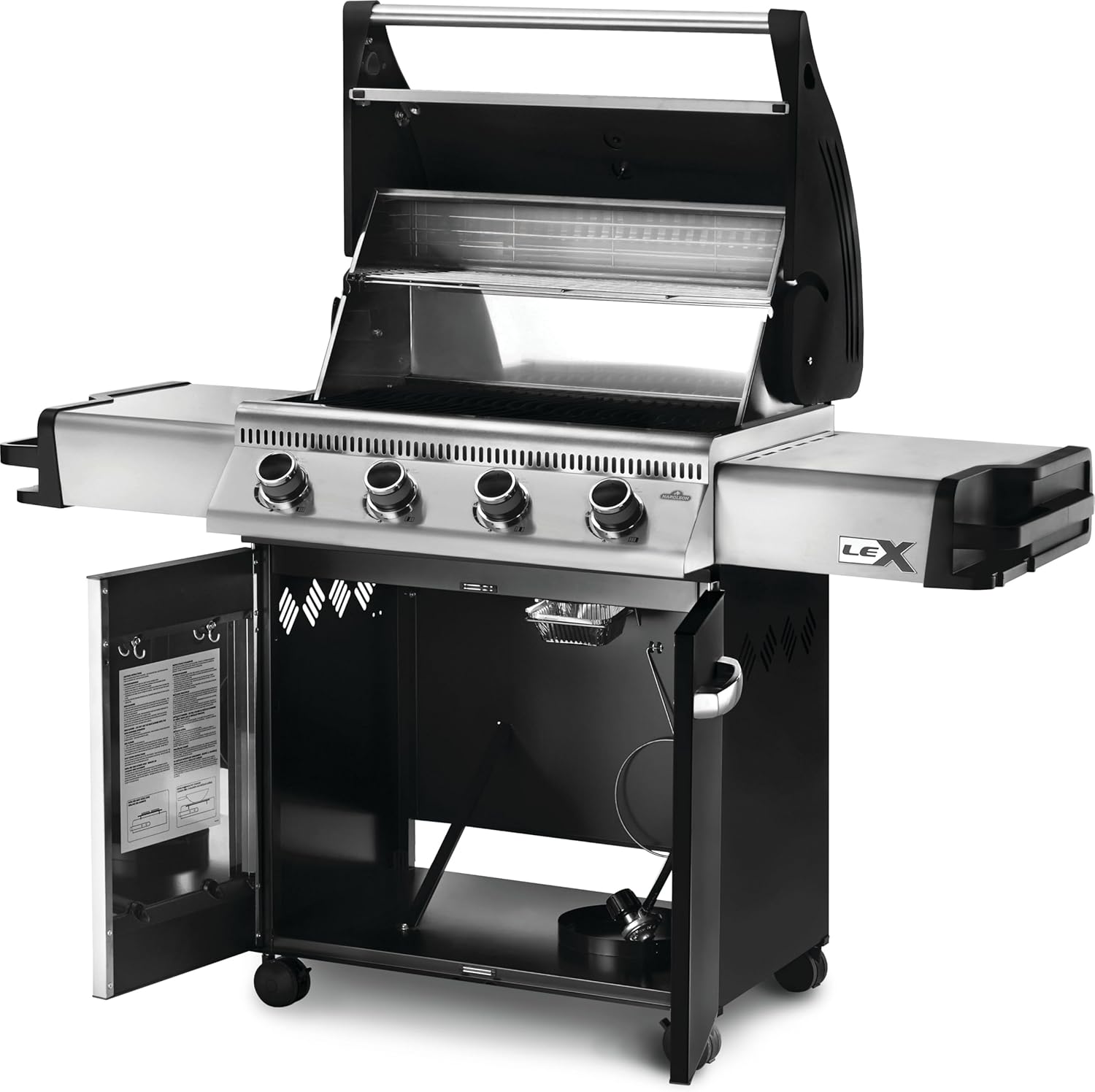

Umfanekiso 3: Uhlangothi view of the Napoleon 485 Propane Gas Grill with the lid and cabinet doors open, showing the internal components and side shelf.

Isitoreji

When not in use, especially during extended periods or inclement weather, it is recommended to cover the grill with a protective cover. Disconnect the propane tank if storing indoors.

Figure 4: The Napoleon grill protected by a black cover, suitable for outdoor storage.

Ukuxazulula inkinga

Imininingwane

Ulwazi Lwewaranti

The Napoleon 485 Propane Gas Grill comes with a Iwaranti Yonyaka ongu-15. This warranty covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and to register your product, please refer to the warranty card included with your grill or visit the official Napoleon webindawo.

Ukwesekwa Kwamakhasimende

For technical assistance, replacement parts, or further inquiries regarding your Napoleon 485 Propane Gas Grill, please contact Napoleon customer support. You can find contact information on the official Napoleon webisayithi noma kumadokhumenti anikezwe nomkhiqizo wakho.

Ungavakashela futhi Napoleon Store on Amazon ngolwazi olwengeziwe lomkhiqizo kanye nezinsiza.
