1. Isingeniso
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your LED Line Prime T8 LED Tube. Please read these instructions carefully before installation and retain them for future reference.
2. Iziyalezo Zokuphepha
- Always disconnect power before installation, replacement, or maintenance.
- Ukufakwa kufanele kwenziwe ngumuntu osebenza ngogesi oqeqeshiwe ngokuhambisana namakhodi kagesi wendawo.
- Do not use this product in environments with extreme temperatures or high humidity unless specifically rated for such conditions.
- Ensure the fixture is compatible with T8 LED tubes and the specified voltage (220-240V).
- Do not attempt to modify or disassemble the LED tube.
- Handle the glass tube with care to prevent breakage.
3. Okuqukethwe Kwephakheji
Qinisekisa ukuthi zonke izingxenye zikhona futhi azilimele lapho uvula iphakheji.
- 1 x LED Line Prime T8 LED Tube (150 cm)
- 1 x LED Starter/Fuse (for fluorescent fixture conversion)
Figure 1: LED Line Prime T8 LED Tube, showing the product both in its retail packaging and removed from the packaging, highlighting its full length.
Umfanekiso 2: Vala-up view of the LED starter/fuse, labeled 'Only use With LED Tube 1A/250V', which is essential for converting traditional fluorescent fixtures to LED.
4. Ukusetha nokufakwa
This LED tube is designed to replace traditional T8 fluorescent tubes. It requires either single-sided or dual-sided power connection. Ensure your fixture is compatible and wired correctly.
4.1. Converting a Fluorescent Fixture
- Nqamula Amandla: Turn off the main power supply to the fixture at the circuit breaker.
- Remove Old Tube and Starter: Carefully remove the existing fluorescent tube and its starter from the fixture.
- Install LED Starter: Insert the provided LED starter/fuse into the starter socket.
- Install LED Tube: Insert the LED Line Prime T8 tube into the fixture's lamp holders. Ensure it is securely seated.
- Xhuma kabusha Amandla: Restore power and test the LED tube.
Qaphela: For fixtures with electronic ballasts, the ballast must be bypassed or removed, and the fixture rewired for direct AC input. Consult a qualified electrician for this procedure.
4.2. Wiring Diagrams (Direct AC Input)
The following diagrams illustrate the correct wiring for direct AC input (bypassing the ballast). This tube supports both single-sided and dual-sided power connections.

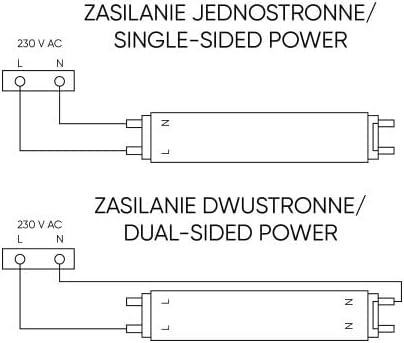

Figure 3: Wiring diagrams showing both single-sided and dual-sided power connections for the LED T8 tube. For single-sided power, both Live (L) and Neutral (N) connect to one end of the tube. For dual-sided power, Live (L) connects to one end and Neutral (N) to the other end.
- Single-Sided Power: Connect the Live (L) and Neutral (N) wires from the 230V AC supply to the pins on one end of the LED tube. The other end of the tube remains unconnected to power.
- Dual-Sided Power: Connect the Live (L) wire from the 230V AC supply to the pins on one end of the LED tube, and the Neutral (N) wire to the pins on the opposite end of the LED tube.
Always ensure proper insulation and secure connections to prevent electrical hazards.
5. Iziqondiso Zokusebenza
Once installed correctly and power is supplied, the LED Line Prime T8 tube will illuminate instantly. There are no specific operating controls for the tube itself; its function is controlled by the fixture's power switch.
6. Isondlo
- Ukuhlanza: Nqamula amandla ngaphambi kokuhlanza. Sebenzisa ethambile, eyomile, noma kancane damp cloth to wipe the surface of the tube. Do not use abrasive cleaners or solvents.
- Ukuhlola: Periodically inspect the tube and connections for any signs of damage or wear. If any damage is observed, disconnect power and replace the tube.
- Ukumiselela: When the tube reaches the end of its lifespan, disconnect power and replace it with a new LED Line Prime T8 LED tube of the same specifications.
7. Ukuxazulula izinkinga
- Tube does not light up:
- Hlola ukuthi ugesi uxhunyiwe futhi uvuliwe.
- Ensure the LED tube is correctly seated in the lamp abanikazi.
- Verify that the LED starter is correctly installed (if converting a fluorescent fixture).
- If the fixture had an electronic ballast, ensure it has been bypassed or removed and the fixture is wired for direct AC input.
- Hlola ukuxhumeka kwezintambo okuxekethile.
- Ukucwayiza:
- Qinisekisa ukunikezwa kwamandla okuzinzile.
- Verify correct wiring and connections.
- Ensure the LED tube is fully compatible with the fixture's wiring.
If problems persist, consult a qualified electrician or contact customer support.
8. Imininingwane
| Isici | Ukucaciswa |
|---|---|
| Inombolo Yemodeli | 202108 |
| Ibhrendi | Umugqa we-LED |
| Uhlobo | T8 LED Tube |
| Ukusetshenziswa kwamandla | 22 W |
| Ukushisa Kombala | 4000 K (Okumhlophe Okungathathi hlangothi) |
| I-Flux ekhanyayo | 3300 lm |
| Ukusebenza Okukhanyayo | 150 lm/W |
| Okokufaka Voltage | 220-240 V |
| Uhlobo Lwesisekelo | G13 |
| Uhlobo lwe-LED | I-SMD2835 |
| I-Angle ye-Beam | 270° |
| Inkomba Yokunikeza Umbala (CRI) | RA> 80 |
| Ubude bempilo | > 25,000 amahora |
| Imijikelezo Yokuvula / Yokuvala | 50,000 |
| I-Diffuser Material | Ingilazi |
| Ubude | 150 cm |
| I-Energy Efficiency Class | D |
Figure 4: Energy efficiency label for the LED Line Prime T8 LED Tube, model 202108, indicating an energy class of D and consumption of 22 kWh/1000h. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/1593927.
9. Iwaranti kanye Nokusekela
LED Line products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official LED Line website. For technical support or inquiries, please contact your retailer or the manufacturer directly.
