1. Isingeniso
This manual provides essential information for the safe and efficient operation of your Next YE-43020GG4 43-inch Full HD Google Android TV. Please read this manual thoroughly before using the product and retain it for future reference.

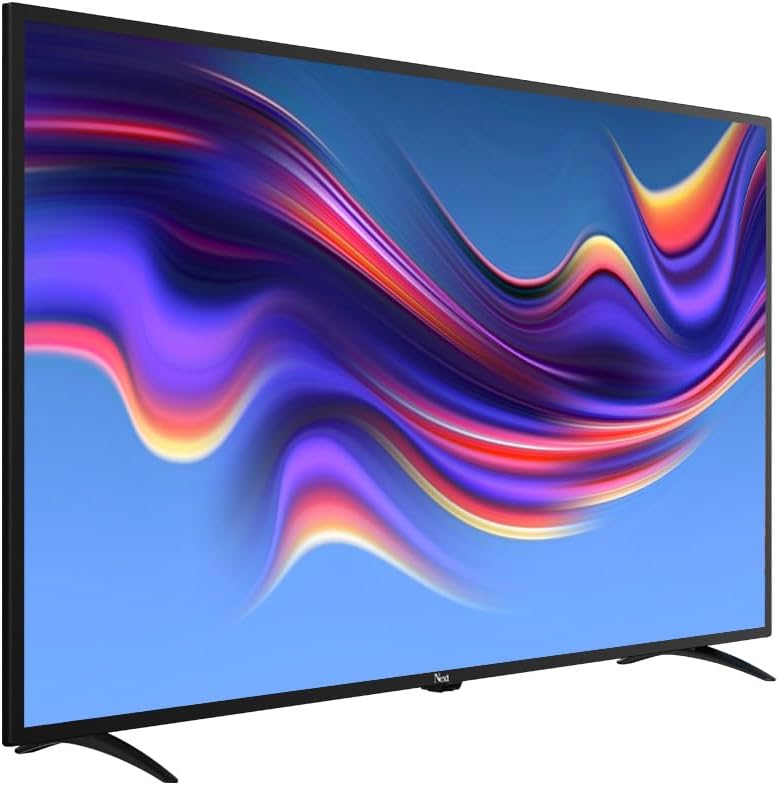

Isithombe 1.1: Ngaphambili view of the Next YE-43020GG4 43-inch Full HD Google Android TV, showcasing its sleek design and the Google Android TV interface.
The Next YE-43020GG4 is a 43-inch Full HD (1920x1080p) LED television featuring the Google Android TV operating system. It offers a dynamic contrast enhancer for improved picture quality and integrated Wi-Fi for seamless internet connectivity. This model is designed for ease of use and provides access to a wide range of applications and streaming services.
2. Ulwazi Lokuphepha
Observe the following safety precautions to prevent damage to the TV and ensure personal safety:
- Ukunikezwa kwamandla kagesi: Connect the TV only to an AC 100-240V, 50/60Hz power source. Ensure the power cord is not damaged or pinched.
- Ukungenisa umoya: Do not block ventilation openings. Allow adequate space around the TV for proper airflow to prevent overheating.
- Amanzi Nomswakama: Do not expose the TV to rain, moisture, or place objects filled with liquids on or near the TV.
- Ukuhlanza: Unplug the TV before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol sprays.
- Ukubekwa: Place the TV on a stable, level surface. If wall-mounting, ensure the mount is compatible and installed by qualified personnel.
- Umbani: During lightning storms or when unused for long periods, unplug the TV from the power outlet and disconnect the antenna cable.
- Ukusevisa: Ungazami ukulungisa i-TV ngokwakho. Thumela bonke abasebenzi besevisi abafanelekayo.
3. Okuqukethwe Kwephakheji
Qinisekisa ukuthi zonke izinto zikhona kuphakheji:
- Next YE-43020GG4 43-inch Full HD Google Android TV Unit
- Isilawuli kude
- Isitendi se-TV (izingcezu ezi-2)
- Intambo Yamandla
- Incwadi Yomsebenzisi (le dokhumenti)
- Batteries for Remote Control (may vary by region)
4. Physical Features and Connections
Familiarize yourself with the physical layout and connection ports of your television.
Isithombe 4.1: Ngemuva view of the TV with labeled connection ports.
4.1. Izixhumi zephaneli yangemuva
| Itheku | Incazelo |
|---|---|
| I-HDMI 1 (ARC) | High-Definition Multimedia Interface with Audio Return Channel support. Connect external devices like Blu-ray players or soundbars. |
| I-HDMI 2 | High-Definition Multimedia Interface. Connect external devices. |
| USB (2x) | Universal Serial Bus ports for connecting USB storage devices (e.g., flash drives) to play media or for software updates. |
| I-Ethernet | RJ45 port for wired internet connection. |
| I-DVB-S / DVB-S2 | Satellite input for connecting a satellite dish. |
| I-DVB-T / DVB-T2 | Terrestrial antenna input for connecting a digital terrestrial antenna. |
| I-DVB-C | Cable input for connecting to a cable TV network. |
| CI MODULE | Common Interface slot for inserting a CI+ module and smart card, typically used for encrypted digital TV services. |
| MINI AV-IN | Mini Audio/Video input for connecting older devices using an adapter cable (not always included). |
4.2. Side Profile
Isithombe 4.2: Left side profile ye-TV.
Isithombe 4.3: Right side profile ye-TV.
The slim design of the television allows for versatile placement options, whether on a stand or wall-mounted. The side profiles illustrate the minimal depth of the unit.
5. Setha
5.1. Ukunamathisela Isitendi se-TV
- Carefully place the TV face down on a soft, flat surface (e.g., a blanket or foam) to prevent screen damage.
- Thola izingcezu zokuma kwesobunxele nesokudla.
- Qondanisa isiqephu ngasinye sokuma nezimbobo zesikulufu ezihambisanayo phansi kwe-TV.
- Vikela izitendi usebenzisa izikulufo ezinikeziwe. Ungaqinisi kakhulu.
- Carefully lift the TV to an upright position and place it on a stable surface.
5.2. Ukukhweza Udonga (Ongakukhetha)
If you choose to wall-mount your TV, ensure you use a VESA-compatible wall mount kit (not included) and follow the instructions provided with the wall mount. It is recommended to have this installation performed by a qualified professional.
5.3. Amandla okuxhuma kanye namadivayisi angaphandle
- Xhuma intambo yamandla kokokufaka kwamandla e-TV bese uxhume endaweni ophuma kuyo odongeni.
- Connect your antenna, satellite dish, or cable TV source to the appropriate input ports (DVB-T/T2, DVB-S/S2, DVB-C).
- Connect any external devices (e.g., game consoles, Blu-ray players) to the HDMI ports.
- For wired internet, connect an Ethernet cable to the ETHERNET port. For Wi-Fi, ensure your router is on and within range.
5.4. Iwizadi Yokusetha Yokuqala
- Vula i-TV usebenzisa inkinobho yamandla kusilawuli kude noma i-TV ngokwayo.
- Follow the on-screen instructions to select your language, country, and network settings (Wi-Fi or Ethernet).
- Sign in with your Google Account to access Google Play Store, Google Assistant, and other Google services.
- Complete the channel scan for terrestrial, satellite, or cable broadcasts.
6. Iziqondiso Zokusebenza
6.1. Ukulawula Okukudeview
Isithombe 6.1: The remote control for your Next Google Android TV, featuring quick access buttons for popular streaming services and voice control.
The remote control provides access to all TV functions. Insert two AAA batteries (not included) into the battery compartment, observing polarity.
- Inkinobho yamandla: Ivula noma ivale i-TV.
- Iphedi Yokuzulazula (Phezulu/Phansi/Kwesobunxele/Kwesokudla/Kulungile): Izulazula kumamenyu futhi iqinisekise okukhethiwe.
- Inkinobho Emuva: Ibuyela esikrinini sangaphambilini.
- Inkinobho Yasekhaya: Ifinyelela isikrini sasekhaya se-Android TV.
- Ivolumu phezulu/Phansi: Ilungisa izinga levolumu.
- Isiteshi Phezulu/Phansi: Ishintsha iziteshi ze-TV.
- I-Netflix, i-YouTube, i-Prime Video, Izinkinobho ze-Google Play: Ukufinyelela okuqondile kulezi zinhlelo zokusebenza.
- Google Assistant Button (Microphone Icon): Yenza kusebenze isilawuli sezwi.
6.2. Ukusebenzisa umsizi we-Google
Isithombe 6.2: Voice search functionality via the remote control, activated by the Google Assistant button.
Press the Google Assistant button on your remote and speak into the microphone to:
- Cinga movies, TV shows, or information.
- Lawula amadivayisi ahlakaniphile ekhaya.
- Open applications.
- Thola izimpendulo zemibuzo.
6.3. Accessing Applications and Streaming Services
From the Android TV home screen, you can access pre-installed applications or download new ones from the Google Play Store. Use the dedicated buttons on the remote for quick access to popular streaming platforms.
Isithombe 6.3: The Next Google Android TV provides access to a wide range of streaming applications, enhancing your entertainment options.
7. Isondlo
7.1. Ukuhlanza i-TV
- Isikrini: Sula kahle isikrini ngendwangu ethambile, engenantambo. Ukuze uthole amamaki anenkani, kancane dampen the cloth with water or a specialized screen cleaner (ensure it's safe for LED screens) and wipe gently. Do not spray liquid directly onto the screen.
- IKhabhinethi: Wipe the TV cabinet with a soft, dry cloth. Avoid using abrasive cleaners, waxes, or solvents.
- Ngaphambi kokuhlanza: Ngaso sonke isikhathi khipha i-TV ekuxhumekeni kukagesi ngaphambi kokuhlanza.
7.2. Ukuvuselelwa Kwesoftware
Your Android TV may receive software updates periodically. It is recommended to keep your TV's software updated to ensure optimal performance and access to the latest features and security patches. You can usually check for updates in the TV's settings menu under "About" or "System Update."
8. Ukuxazulula izinkinga
Bheka ithebula elilandelayo ngezinkinga ezivamile nezisombululo zazo:
| Inkinga | Imbangela Engenzeka / Isixazululo |
|---|---|
| Awekho Amandla |
|
| Asikho Isithombe, kodwa Umsindo Ukhona |
|
| Awukho Umsindo, kodwa Isithombe Sikhona |
|
| Isilawuli kude Asisebenzi |
|
| Izinkinga zokuxhumana nge-Wi-Fi |
|
| Izinhlelo zokusebenza Ziyaphahlazeka noma Ukubanda |
|
9. Imininingwane
Technical specifications for the Next YE-43020GG4 43-inch Full HD Google Android TV:

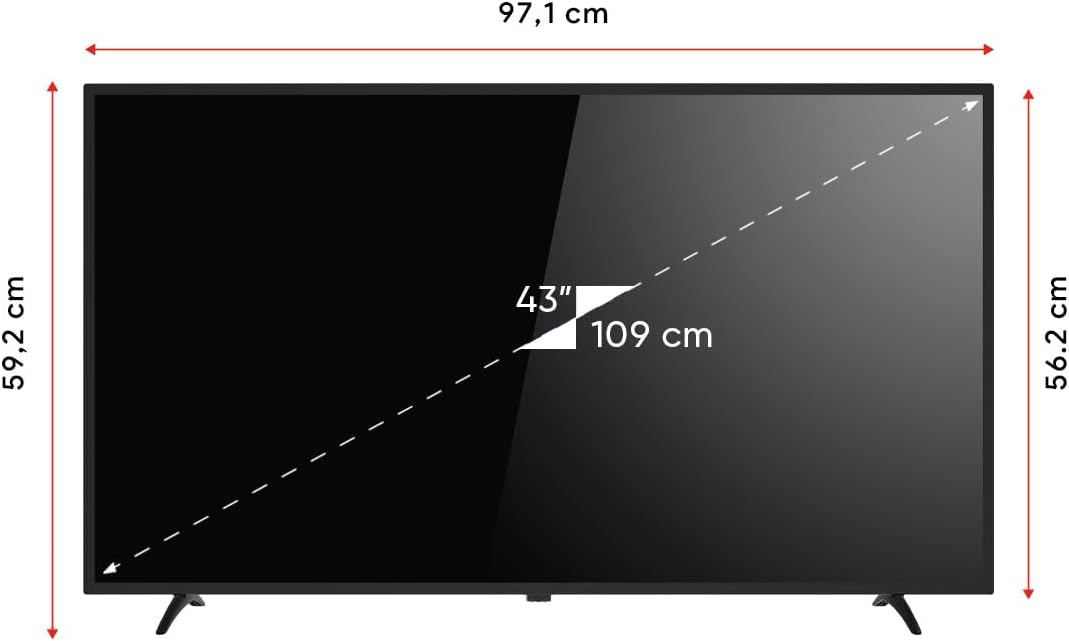

Isithombe 9.1: Dimensions of the Next YE-43020GG4 TV.
| Isici | Imininingwane |
|---|---|
| Igama Lemodeli | YE-43020GG4 |
| Ibhrendi | Olandelayo |
| Usayizi Wesikrini | Amasentimitha amane (43 cm) |
| Bonisa Ubuchwepheshe | I-LED |
| Isixazululo | I-HD Egcwele (1920x1080p) |
| Isilinganiso Sokuvuselela | 60 Hz |
| Isistimu esebenzayo | I-Google Android TV |
| Ukuxhumana | I-Wi-Fi, i-Ethernet |
| Izimbobo ze-HDMI | 2 (1x ARC) |
| Izimbobo ze-USB | 2 |
| I-Aspect ratio | 16:9 |
| Isilinganiso Sokuqhathanisa | 3000:1 |
| Izici ezikhethekile | Dynamic Contrast Enhancer, Google Assistant |
| Ubukhulu bomkhiqizo (WxDxH) | 97.1 x 19.4 x 59.2 cm |
| Isisindo Somkhiqizo | 5.9 kg |
| Unyaka Wemodeli | 2024 |
Isithombe 9.2: EU Energy Label for the Next YE-43020GG4, indicating its energy efficiency rating and consumption.
10. Iwaranti kanye Nokusekela
10.1. Ulwazi Lwewaranti
Your Next YE-43020GG4 television comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of the warranty. Keep your purchase receipt as proof of purchase for warranty claims.
10.2. Ukwesekwa Kwamakhasimende
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Next customer support. Contact details can typically be found on the manufacturer's official webindawo noma ekhadini lewaranti.
Uma uxhumana nosekelo, sicela ube nolwazi olulandelayo olulungile:
- Igama Lemodeli: YE-43020GG4
- Serial Number (located on the back of the TV)
- Usuku Lokuthenga
- Incazelo ecacile yendaba
