1. Isingeniso
This manual provides essential information for setting up, operating, and maintaining your ViewSonic VG3456A 34-inch Ultrawide QHD 1440p IPS Monitor. Please read it thoroughly before use.
I ViewSonic VG3456A is designed to enhance productivity with its 34-inch ultrawide 21:9 WQHD (3440x1440p) IPS display and integrated docking capabilities. It features 100W USB-C power delivery, Gigabit Ethernet, and ergonomic adjustments for a streamlined workspace.
2. Ulwazi Lokuphepha
Observe the following safety guidelines to ensure proper operation and prevent damage:
- Ensure the monitor is placed on a stable, level surface.
- Ungavimbi izikhala zokungenisa umoya esibukweni.
- Sebenzisa kuphela i-adaptha yamandla namakhebuli ahlinzekwe umenzi.
- Avoid exposing the monitor to moisture or extreme temperatures.
- Disconnect power before cleaning the monitor.
3. Yini EseBhokisini
Qinisekisa ukuthi zonke izinto zikhona ephaketheni lomkhiqizo:
- ViewSonic VG3456A Monitor
- Ikhebula Lamandla
- Ikhebula le-HDMI
- Cable Type-C Cable
- Quick Start Guide
Image: The contents of the ViewSonic VG3456A monitor box, showing the monitor, power cable, HDMI cable, USB Type-C cable, and a Quick Start Guide.
4. Setha
4.1. ISigungu Somhlangano
The monitor features an easy-to-install quick-release stand. Attach the base to the upright section, then secure the stand to the monitor. Refer to the included Quick Start Guide for detailed steps.
Image: A diagram illustrating the simple, tool-free assembly of the monitor stand, highlighting the quick-release mechanism.
4.2. Ukuxhuma Amadivayisi Akho
The VG3456A offers versatile connectivity options:
- Uxhumano lwe-USB-C: Connect your laptop or compatible device using the provided USB Type-C cable. This single cable can provide video, audio, data transfer, and up to 100W power delivery to your device.
- HDMI/DisplayPort: Use an HDMI or DisplayPort cable to connect to other video sources.
- I-Ethernet (RJ45): Connect an Ethernet cable to the RJ45 port for reliable network connectivity.
- Uhlobo A lwe-USB: Utilize the integrated USB hub for connecting peripherals like keyboards, mice, or external storage.
Isithombe: A enemininingwane view of the monitor's rear panel, highlighting the HDMI, DisplayPort, 100W USB Type-C, 15W USB Type-C, USB Type-A, and RJ45 Ethernet ports.
Image: A laptop connected to the monitor with a single USB-C cable, illustrating how the monitor acts as a docking station to reduce cable clutter.
4.3. Vula amandla
Connect the power cable to the monitor and a power outlet. Press the power button located on the monitor's front or bottom bezel.
4.4. Video: USB Type-C Connectivity Overview
Video: This video demonstrates the single-cable USB Type-C connectivity of ViewSonic monitors, showing how it simplifies connections for power, video, and data transfer.
5. Ukusebenzisa i-Monitor Yakho
5.1. Imenyu yokubonisa okusesikrinini (OSD).
Navigate the OSD menu using the buttons on the monitor's bezel to adjust settings such as brightness, contrast, color, input source, and ViewMode presets.
5.2. Ukulungiswa Kwe-ergonomic
The VG3456A features an ergonomic stand allowing for tilt, swivel, and height adjustments to optimize your viewukunethezeka:
- Ukutsheka: Adjust the screen's vertical angle (up to 40 degrees).
- I-Swivel: Jikelezisa isikrini ngokuvundlile.
- Ukulungiswa kobude: Raise or lower the screen to your preferred height.
Image: An illustration of the monitor's ergonomic capabilities, including tilt, swivel, and height adjustment, designed for user comfort.
5.3. vDisplayManager Software
The integrated vDisplayManager software provides quick and easy OSD control and customized screen templates for efficient multi-tasking. This software is available for download from the manufacturer's webindawo.
Image: A visual representation of the vDisplayManager software interface, demonstrating its features for managing display settings and screen layouts.
5.4. Eye Care Technology
The monitor incorporates eye care technologies such as a Blue Light Filter and Flicker-Free display to reduce eye strain during extended use.
Image: A graphic explaining the monitor's eye care features, including Blue Light Filter and Flicker-Free technology, designed to enhance viewinduduzo.
6. Isondlo
6.1. Ukuhlanza Isikrini
Sula kahle isikrini ngendwangu ethambile, engenantambo. Ukuze uthole amamaki anenkani, kancane dampen the cloth with water or a mild, non-abrasive screen cleaner. Avoid spraying liquid directly onto the screen.
6.2. Cleaning the Casing
Sebenzisa indwangu ethambile, eyomile ukuhlanza imonitha casing. Do not use strong detergents or abrasive cleaners.
7. Ukuxazulula izinkinga
7.1. No Image on Screen
- Qinisekisa ukuthi ikhebuli yamandla ixhunywe ngokuvikelekile kusiqapha kanye nesiphuma samandla.
- Verify that the video cable (USB-C, HDMI, or DisplayPort) is properly connected to both the monitor and your device.
- Hlola ukuthi umthombo wokufaka olungile ukhethiwe yini kumenyu ye-OSD.
- Confirm your device is powered on and outputting a video signal.
7.2. Power Delivery Issues (USB-C)
- Ensure your device supports USB-C Power Delivery and is compatible with the monitor's 100W output.
- Try reconnecting the USB-C cable.
- If issues persist, try a different USB-C cable or power cycle the monitor and your device.
7.3. Network Connectivity Issues (RJ45)
- Verify the Ethernet cable is securely connected to the monitor and your network router/switch.
- Check your device's network settings.
8. Imininingwane
| Isici | Imininingwane |
|---|---|
| Usayizi Wesikrini | 34 amayintshi |
| Isixazululo | 3440 x 1440 (WQHD) |
| I-Aspect ratio | 21:9 |
| Uhlobo Lwephaneli | IPS |
| Isilinganiso Sokuvuselela | 100Hz |
| I-USB-C Power Delivery | Kufika ku-100W |
| Ukuxhumana | 2x HDMI 2.0, 1x DisplayPort (in), 1x 100W USB Type-C, 1x 15W USB Type-C, 4x USB Type-A, 1x Ethernet (RJ45) |
| Izipikha | 2x 5-watt izipikha ezihlanganisiwe |
| Ergonomics | Tilt, Swivel, Height Adjustment |
| I-VESA Mount Iyahambisana | Yebo (100 x 100 mm) |
| Ubukhulu (LxWxH) | 9.3 x 32.2 x 21.02 amayintshi |
| Isisindo sento | 19.4 amakhilogremu |

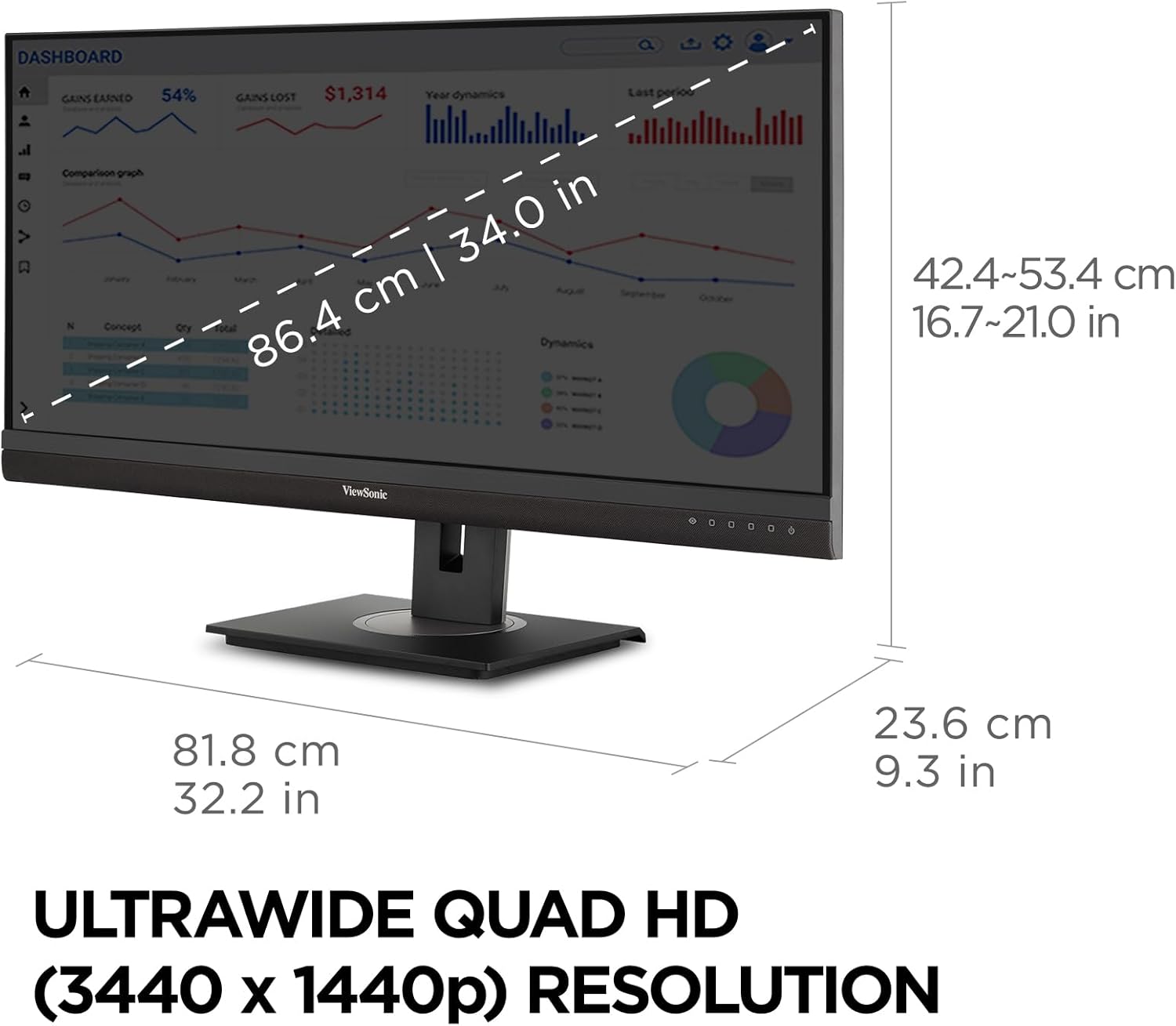

Image: A diagram illustrating the physical dimensions of the monitor, including screen size and overall measurements.
9. Iwaranti
I ViewSonic VG3456A monitor comes with a 3-Year Limited Warranty. For detailed warranty terms and conditions, please refer to the official ViewSonic webindawo noma ikhadi lewaranti elifakwe nomkhiqizo wakho.
Image: An icon representing the 3-year warranty provided with the product.
10. Ukusekela
For technical assistance, product registration, or further information, please visit the official ViewUsekelo lwe-Sonic webindawo: www.viewsonic.com/us/support.
Ungaxhumana futhi ViewSonic customer support directly for assistance.
