Akitas S12 Corded Vacuum Cleaner User Manual

Isingeniso

Thank you for choosing the Akitas S12 Corded Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read this manual thoroughly before first use and keep it for future reference.

Imiyalo yokuphepha

Ngaso sonke isikhathi landela izinyathelo zokuphepha eziyisisekelo lapho usebenzisa izinto zikagesi ukuze unciphise ingozi yomlilo, ukushaqeka kukagesi, noma ukulimala.

• Qinisekisa ukuthi unikezwa amandla ngevolthitage matches the rating label on the vacuum cleaner.
• Ungasebenzisi i-vacuum cleaner ezindaweni ezimanzi noma ukuze uqoqe uketshezi.
• Ungathathi izinto ezishisayo noma ezibhemayo, njengogwayi, umentshisi, noma umlotha oshisayo.
• Gcina izinwele, izingubo ezixegayo, iminwe, nazo zonke izingxenye zomzimba kude nezintuba nezinyakazayo.
• Khipha ipulaki lapho ingasetshenziswa nangaphambi kokuhlanza noma ukusevisa.
• Ungasebenzisi ngentambo eyonakele noma ipulaki. Uma into esetshenziswayo ingasebenzi ngendlela ebekufanele, iwisiwe, yonakele, ishiywe ngaphandle, noma iwiswe emanzini, yibuyisele esikhungweni sesevisi.
• Lolu hlelo lokusebenza lusetshenziswa ekhaya kuphela.

Izingxenye Zomkhiqizo

The Akitas S12 vacuum cleaner comes with several components designed for versatile cleaning.

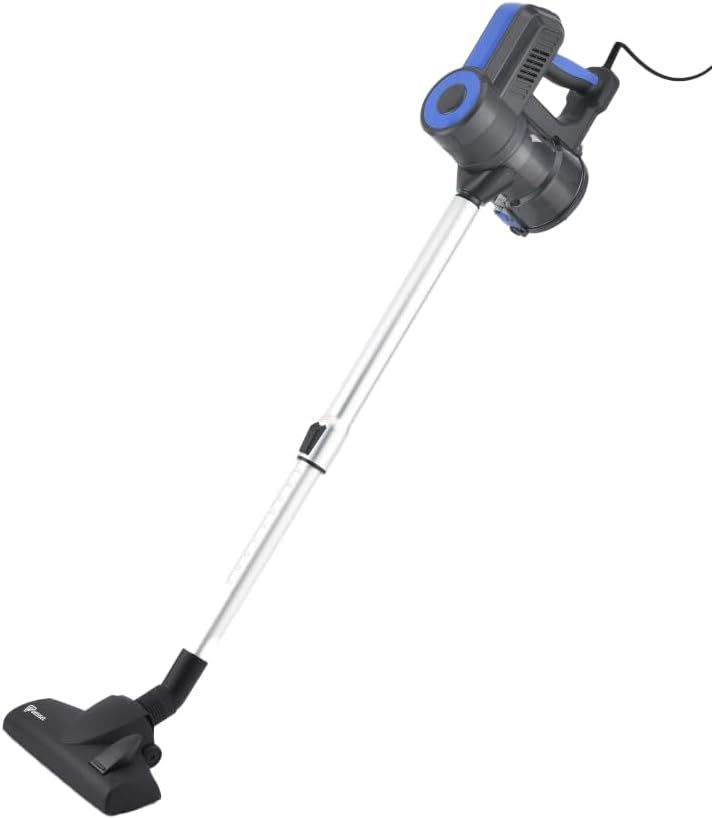

Image: The Akitas S12 vacuum cleaner shown as a full stick vacuum and as a compact handheld unit.

• Iyunithi Eyinhloko: Contains the motor, dustbin, and handle.
• Ishubhu yeTelescopic: Lightweight aluminum tube for extended reach.
• Floor Brush Head: Patented German Wessel Werk 2-in-1 brush head suitable for carpets and hard floors.
• Ithuluzi le-Crevice: Okwezikhala namakhona amancane.
• Ibhulashi Nozzle: Kwezinto zokuhlobisa kanye nezindawo ezithambile.
• Ibakaki Lentaba Yodonga: Okokugcina okulula.

Ukusetha nokuhlanganisa

Follow these steps to assemble your Akitas S12 vacuum cleaner:

1. Attach the Telescopic Tube: Insert the telescopic tube into the main unit until it clicks securely into place.
2. Namathisela inhloko yebhulashi laphansi: Connect the floor brush head to the other end of the telescopic tube, ensuring it locks firmly.
3. Ukucushwa Okubanjwe Ngesandla: For handheld use, detach the telescopic tube and floor brush head. Attach the crevice tool or brush nozzle directly to the main unit.

Image: Visual representation of the vacuum cleaner in its full stick configuration, handheld mode with brush nozzle, and handheld mode with crevice tool, demonstrating assembly versatility.

Imiyalelo yokusebenza

Operating your Akitas S12 vacuum cleaner is straightforward:

1. Ukuxhuma kwamandla: Xhuma intambo kagesi endaweni kagesi efanelekile (240 Volts).
2. Vula/Vala: Cindezela inkinobho yamandla etholakala esibambweni seyunithi eyinhloko ukuze uvule noma uvale isihlanzi se-vacuum.
3. Ukuhlanza Izindawo:
   • For floors and carpets, use the floor brush head. The Wessel Werk 2-in-1 brush head is designed for optimal performance on both surfaces.
   • For hard-to-reach areas, car interiors, or upholstery, switch to the handheld configuration with the appropriate attachment (crevice tool or brush nozzle).

Image: The Akitas S12 vacuum cleaner demonstrating its versatility, being used as a handheld unit for car interiors and couch cleaning, and with the telescopic tube for high-reach areas like curtains.

Isondlo

Ukunakekela okuvamile kuqinisekisa ukusebenza kahle futhi kwelula isikhathi sempilo yesicoci sakho se-vacuum.

Ukuthulula i-Dustbin

The Akitas S12 features a 0.8-liter bagless dustbin. Empty it regularly to maintain suction power.

1. Disconnect the vacuum cleaner from the power outlet.
2. Press the dustbin release button (one-click operation) to detach the dustbin from the main unit.
3. Hold the dustbin over a waste bin and open the bottom flap to release the collected debris.
4. Close the flap and reattach the dustbin to the main unit until it clicks.

Image: A hand holding the main unit of the Akitas S12 vacuum cleaner over a waste bin, with the dustbin flap open to show debris being emptied.

Ukuhlanza Isihlungi se-HEPA

The HEPA filter is washable and should be cleaned regularly, especially if suction power decreases.

1. Disconnect the vacuum cleaner from the power outlet.
2. Susa udoti njengoba kuchaziwe ngenhla.
3. Twist and pull out the HEPA filter assembly from the dustbin.
4. Rinse the HEPA filter and its protective mesh under cool running water until the water runs clear. Do not use detergent.
5. Allow the filter to air dry completely for at least 24 hours before reassembling. Do not use a dryer or direct heat.
6. Once dry, reinsert the filter assembly into the dustbin and reattach the dustbin to the main unit.

Image: Hands demonstrating the process of rinsing both the pleated HEPA filter and its plastic mesh housing under running water.

Important: All bagless cylinder vacuums require checking for blockage and filter cleaning. Failure to check blockage and filters may result in overheating, power cutoff, or reduced suction power.

Image: A warning sign stating the importance of checking for blockages and cleaning filters in bagless cylinder vacuums to prevent overheating or reduced suction.

Ukuxazulula inkinga

If you encounter issues with your Akitas S12 vacuum cleaner, refer to the table below for common problems and solutions.

Imininingwane

• Imodeli: S12
• Ibhrendi: Akitas
• Amandla: 600 Watts
• Amandla Okumunca: 17KPa
• Voltage: 240 volts
• Amandla we-Dustbin: 0.8 amalitha
• Isistimu Yokuhlunga: True Cyclone HEPA Filtration (Washable)
• Izinga Lomsindo: 68db
• Ubukhulu bomkhiqizo: 30 x 15 x 95 cm
• Isisindo Sento: 2.8 kg
• Izici ezikhethekile: Portable, Lightweight, Washable Filter, HEPA, Patented German Wessel Werk 2-in-1 Brush Head, Aluminium Telescopic Tube, Wall Mount Bracket Inclusive.

Iwaranti kanye Nokusekela

For warranty information and customer support, please refer to the documentation included with your purchase or contact Akitas customer service directly. Specific warranty terms may vary by region and retailer.
