Incwadi Yomsebenzisi Ye-Amazon Basics Handheld Gimbal Stabiliser

Isingeniso

The Amazon Basics Handheld Gimbal Stabiliser is designed to provide smooth and steady footage for your smartphone photography and videography. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

Image: The Amazon Basics Handheld Gimbal Stabiliser with a smartphone attached, ready for use.

Okuqukethwe Kwephakheji

Before you begin, please verify that all items are present in the package:

• 1N Handheld Gimbal with attached holder
• 1N Charging cable
• Incwadi Yomsebenzisi ye-1N (le dokhumenti)
• 1 I-Tripod
• 1N Hanging belt

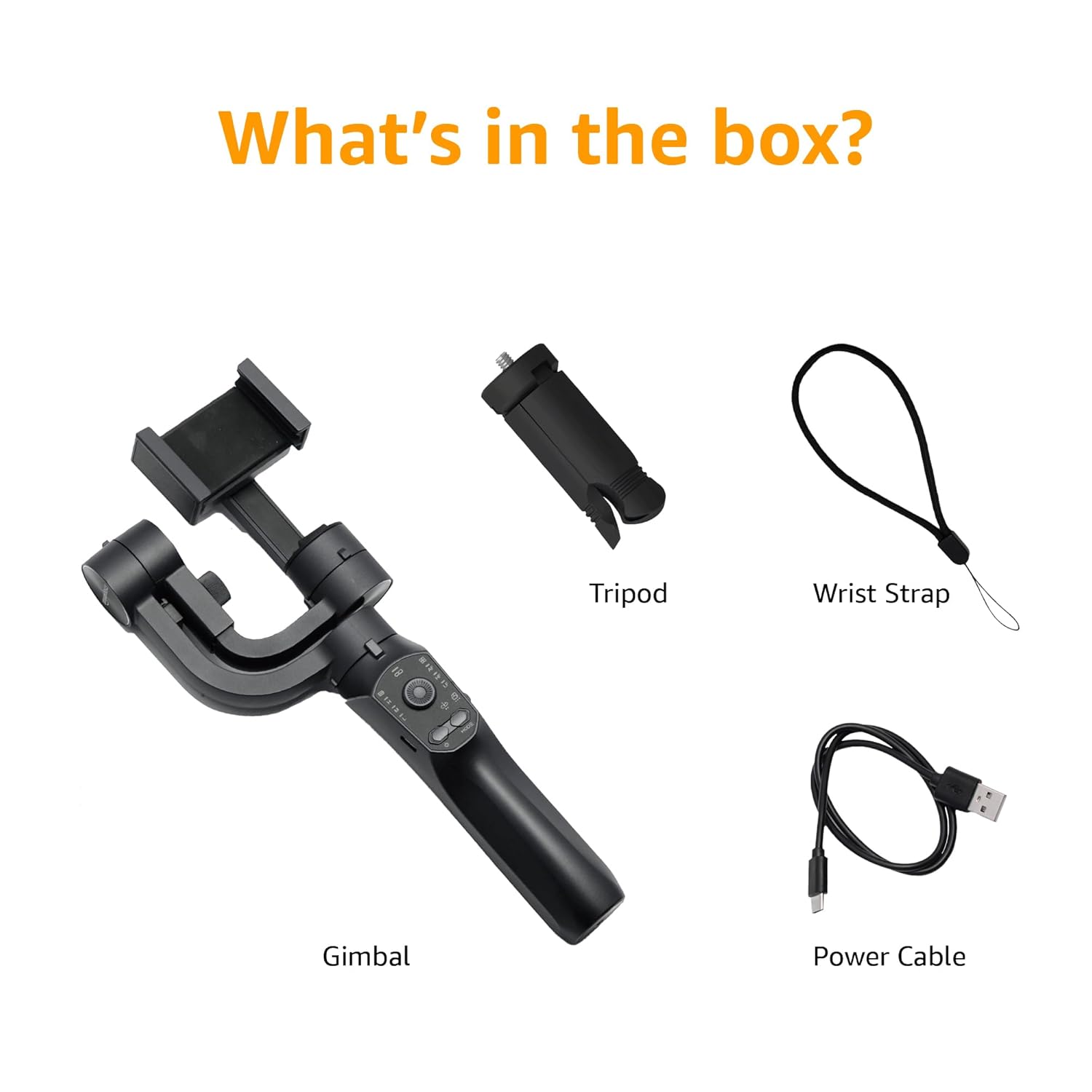

Image: A visual representation of the package contents, including the gimbal, tripod, power cable, and wrist strap.

Izingxenye Zomkhiqizo

Familiarize yourself with the different parts of your gimbal stabiliser:

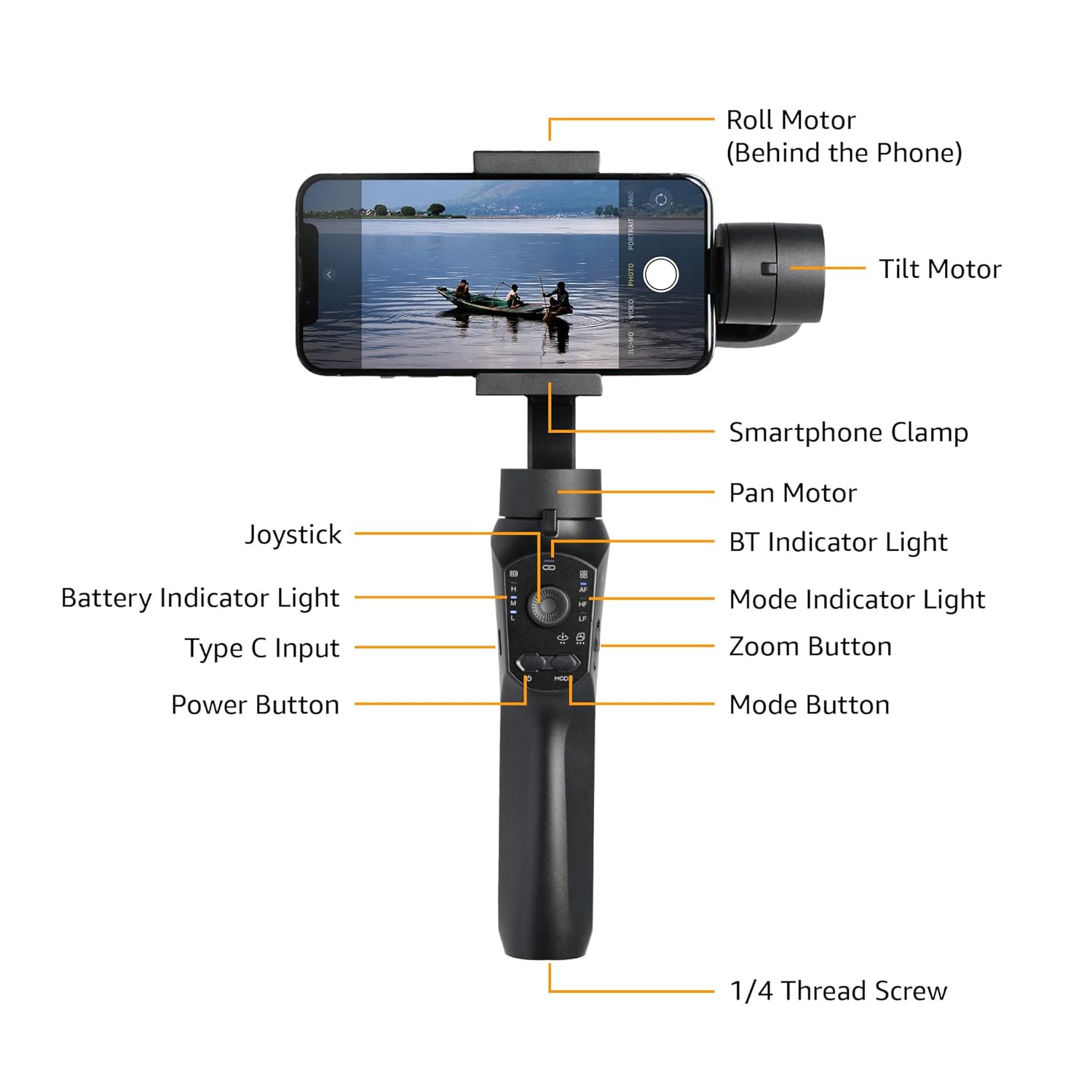

Image: Labeled diagram showing the various components of the gimbal, including the Roll Motor, Tilt Motor, Smartphone Clamp, Pan Motor, BT Indicator Light, Mode Indicator Light, Zoom Button, Mode Button, Power Button, Type C Input, Battery Indicator Light, Joystick, and 1/4 Thread Screw.

• I-Roll Motor: Controls the roll axis (rotation along the lens axis).
• I-Tilt Motor: Controls the tilt axis (up and down movement).
• I-Smartphone Clamp: Securely holds your smartphone.
• I-Pan Motor: Controls the pan axis (left and right rotation).
• Induku yokudlala: For manual control of gimbal movement.
• BT Indicator Light: Ibonisa isimo sokuxhuma kwe-Bluetooth.
• Ukukhanya Kwesikhombi Sebhethri: Ibonisa ileveli yebhethri yamanje.
• Okokufaka Kohlobo C: Charging port for the gimbal.
• Inkinobho yamandla: Turns the gimbal on/off.
• Mode Indicator Light: Ibonisa imodi yokusebenza yamanje.
• Inkinobho yokusondeza: Controls digital zoom (via app).
• Inkinobho yemodi: Switches between different operating modes.
• 1/4 Thread Screw: For attaching accessories like the included tripod.

Setha

1. Charge the Gimbal: Before first use, fully charge the gimbal using the provided Type-C charging cable. The battery indicator light will show charging status.
2. Install the Smartphone:
   • Extend the smartphone clamp and carefully place your smartphone in the center.
   • Ensure the phone is balanced as centrally as possible within the clamp to reduce motor strain.
3. Manual Balancing (Crucial):

   Important: Do not switch on this Gimbal without manual balancing. Doing so may lead to motor damage and fast battery draining.

   • With the smartphone mounted, adjust the position of the phone within the clamp until it remains level when you release it. This minimizes the work the motors need to do.
   • Adjust the horizontal arm if necessary to achieve perfect balance.
4. Vula: Press and hold the Power Button until the gimbal powers on and stabilizes.
5. Landa uhlelo lokusebenza: Download the "Gimbal Pro" app from your smartphone's app store (available for Android and iOS). This app unlocks advanced features and controls.
6. Xhuma nge-Bluetooth: Open the Gimbal Pro app and follow the on-screen instructions to connect your gimbal via Bluetooth. The BT Indicator Light will confirm a successful connection.

Image: An illustration demonstrating the three axes of stabilization: Tilt Axis, Roll Axis, and Pan Axis, which work together to keep footage iqinile.

Imiyalelo yokusebenza

Ukusebenza Okuyisisekelo

• Vula/Vala: Cindezela bese ubamba Inkinobho Yamandla.
• I-Joystick Control: Use the joystick to manually control the pan and tilt movements of the gimbal.
• Inkinobho yemodi: Press the Mode Button to cycle through different operating modes (e.g., Pan Follow, Lock Mode, FPV). The Mode Indicator Light will change accordingly.
• Inkinobho yokusondeza: Use the Zoom Button to zoom in or out within the Gimbal Pro app.
• Multifunction Push Key: This key allows you to focus or zoom, providing a more professional photography experience.

Advanced Features (via Gimbal Pro App)

The Gimbal Pro app unlocks a variety of advanced shooting modes and features:

• Facial Tracking: Automatically tracks a subject's face to keep them in frame.
• Isikhathi seqile: Capture stunning time-lapse videos.
• Ukunyakaza Okunensa: Record high-frame-rate videos for slow-motion effects.
• Intelligent Zoom: Provides precise zoom control.
• Hitchcock Mode: Creates a "Dolly Zoom" effect.
• Mad Dog Mode: A dynamic, fast-response mode.
• Imodi yokuqala: Rotates the camera 360 degrees along the roll axis.
• Imodi ye-FPV: Follows the gimbal's orientation for an immersive first-person view.

Isithombe: I-Visual examples of features available through the mobile app, including Facial Tracking, Time Lapse Shooting, Slow Motion, and Intelligent Zoom.

Image: Icons illustrating various shooting modes such as Mad Dog Mode, Hitchcock Mode, Inception Mode, and FPV Mode, available on the gimbal.

Portrait-to-Landscape Rotation

The gimbal supports effortless rotation between portrait and landscape orientations for versatile shooting.

Image: A three-panel image demonstrating the gimbal's ability to effortlessly rotate a smartphone from portrait to landscape orientation.

Ibhethri nokushaja

The gimbal is equipped with a 3600mAh Lithium Ion battery, providing up to 10 hours of operational time.

• Iyashaja: Connect the provided Type-C cable to the gimbal's charging port and a suitable USB power source.
• Umsebenzi Webhange Lamandla: The gimbal can also function as a power bank to charge your smartphone during extended shoots. Connect your smartphone to the gimbal's Type-C port using a compatible cable.
• Inkomba Yebhethri: Monitor the battery level using the Battery Indicator Lights on the control panel.

Isondlo

• Ukuhlanza: Use a soft, dry cloth to clean the gimbal. Avoid using harsh chemicals or abrasive materials.
• Isitoreji: Store the gimbal in a cool, dry place away from direct sunlight and extreme temperatures.
• Ukunakekelwa kwebhethri: For long-term storage, charge the battery to approximately 50-60% to prolong its lifespan. Recharge every 3 months if not in use.
• Gwema ukulayisha ngokweqile: Do not mount smartphones heavier than the recommended payload capacity (approx. 180 grams, as per user experience). Overloading can damage the motors.

Ukuxazulula inkinga

Imininingwane

Image: A diagram illustrating the dimensions of the gimbal in both folded and extended states.

Iwaranti kanye Nokusekela

This Amazon Basics Handheld Gimbal Stabiliser comes with a Iwaranti ekhawulelwe yeminyaka engu-1 kusukela ngedethi yokuthenga.

For warranty claims, technical support, or any product-related inquiries, please contact Amazon Basics customer service or refer to the official Amazon support channels.
