I-Hunter Newsome 52396 Ifeni Yophahla Yangaphakathi engu-52-intshi ene-LED Light Incwadi Yemiyalelo

1. Umkhiqizo Uphelileview

The Hunter Newsome 52-inch ceiling fan is designed for indoor use, featuring a low-profile mount suitable for rooms with ceilings under 9 feet. It includes an integrated LED light and is controlled via pull chains. The fan incorporates WhisperWind® motor technology for quiet operation and SureSpeed® for optimized airflow, ensuring comfort in large bedrooms, living rooms, kitchens, and home offices.

Figure 1.1: Hunter Newsome 52-inch Indoor Ceiling Fan with LED Light in Matte Black.

Figure 1.2: Hunter Newsome 52-inch Indoor Ceiling Fan with LED Light, highlighting its 52-inch size and Newsome model name.

Quality Features

Hunter fans are designed and tested to ensure durability, quiet operation, and efficient airflow. The following video highlights some of the key quality aspects of Hunter ceiling fans.

2. Izingxenye Ezihlanganisiwe

Before beginning installation, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.

• 52-inch Ceiling Fan (Matte Black finish)
• 5 Reversible Blades
• Integrated LED Light Fixture
• Izibani ze-LED eziyi-2
• 2 Pull Chains
• I-Hardware yokukhweza
• Imanuwali yokufaka

Figure 2.1: Visual representation of the components included in the Hunter Newsome 52396 package.

3. Imininingwane

The following table details the technical specifications of the Hunter Newsome 52396 ceiling fan:

Figure 3.1: Fan Dimensions for Low Profile Intaba.

4. Imiyalelo yokufaka

This section outlines the general steps for installing your Hunter Newsome ceiling fan. For detailed, step-by-step instructions, please refer to the dedicated installation manual included with your product (Figure 4.1).

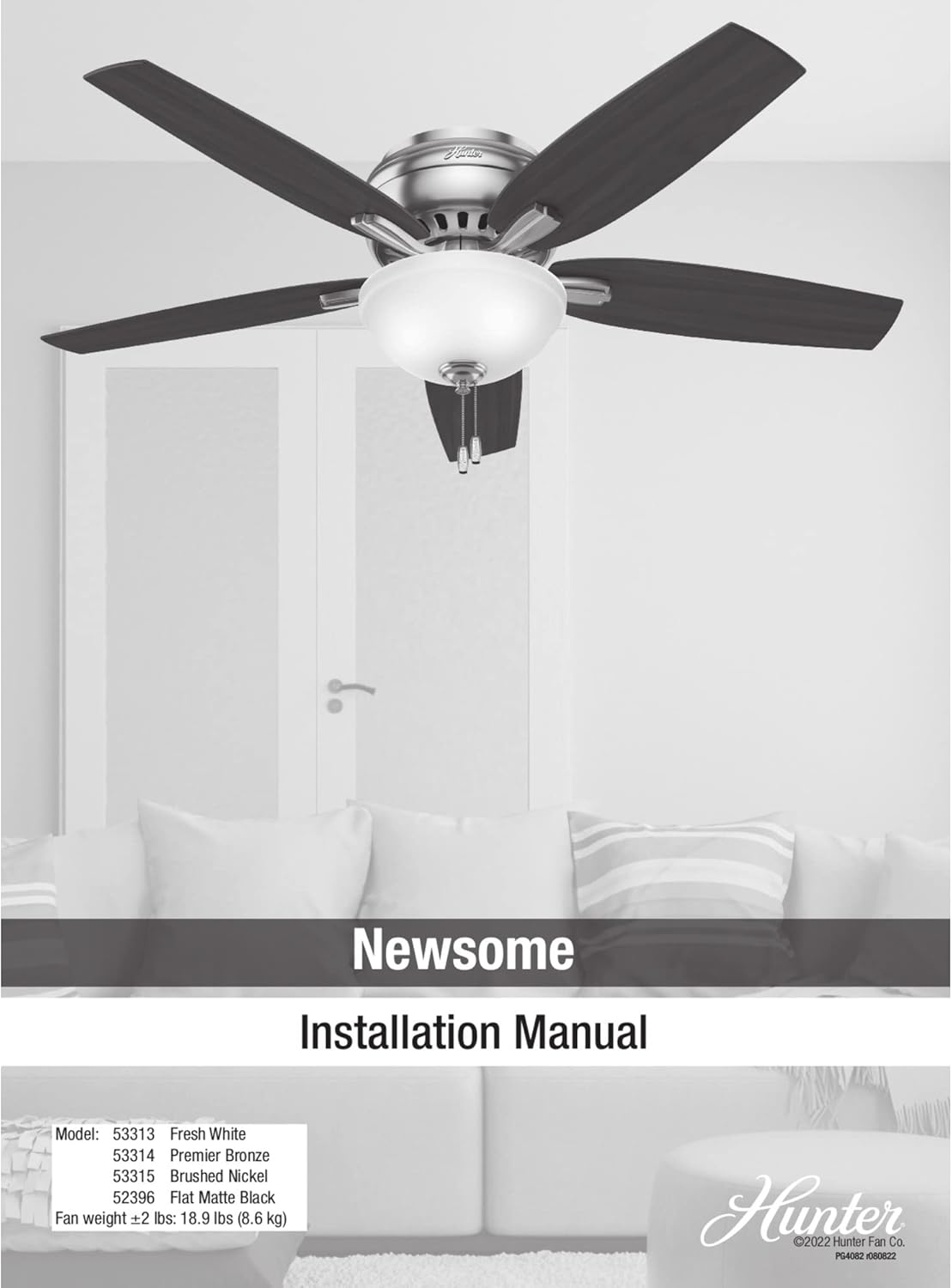

Figure 4.1: Hunter Newsome Installation Manual cover.

Izinyathelo Zokuphepha

• Qinisekisa ukuthi ugesi unqanyuliwe ku-circuit breaker ngaphambi kokufakwa.
• Consult a qualified electrician if you are unfamiliar with electrical wiring.
• Mount the fan to a ceiling joist or a fan-rated outlet box capable of supporting the fan's weight (approximately 19 pounds).

Ekhweza Ifeni

• Secure the mounting bracket to the ceiling outlet box.
• Connect the electrical wiring according to local codes and the included wiring diagram.
• Namathisela ukuhlanganiswa kwenjini yefeni kubakaki abakhwezwayo.

Figure 4.2: Hunter Newsome fan installed in a bedroom, demonstrating its low-profile ubuhle.

Umfanekiso 4.3: Omunye view of the Hunter Newsome fan in a bedroom setting.

Attaching Blades and Light Kit

• Securely attach the five reversible fan blades to the motor housing.
• Install the LED light kit and bulbs.
• Attach the glass bowl and pull chains.

Figure 4.4: Close-up of the integrated LED light fixture and pull chain mechanism.

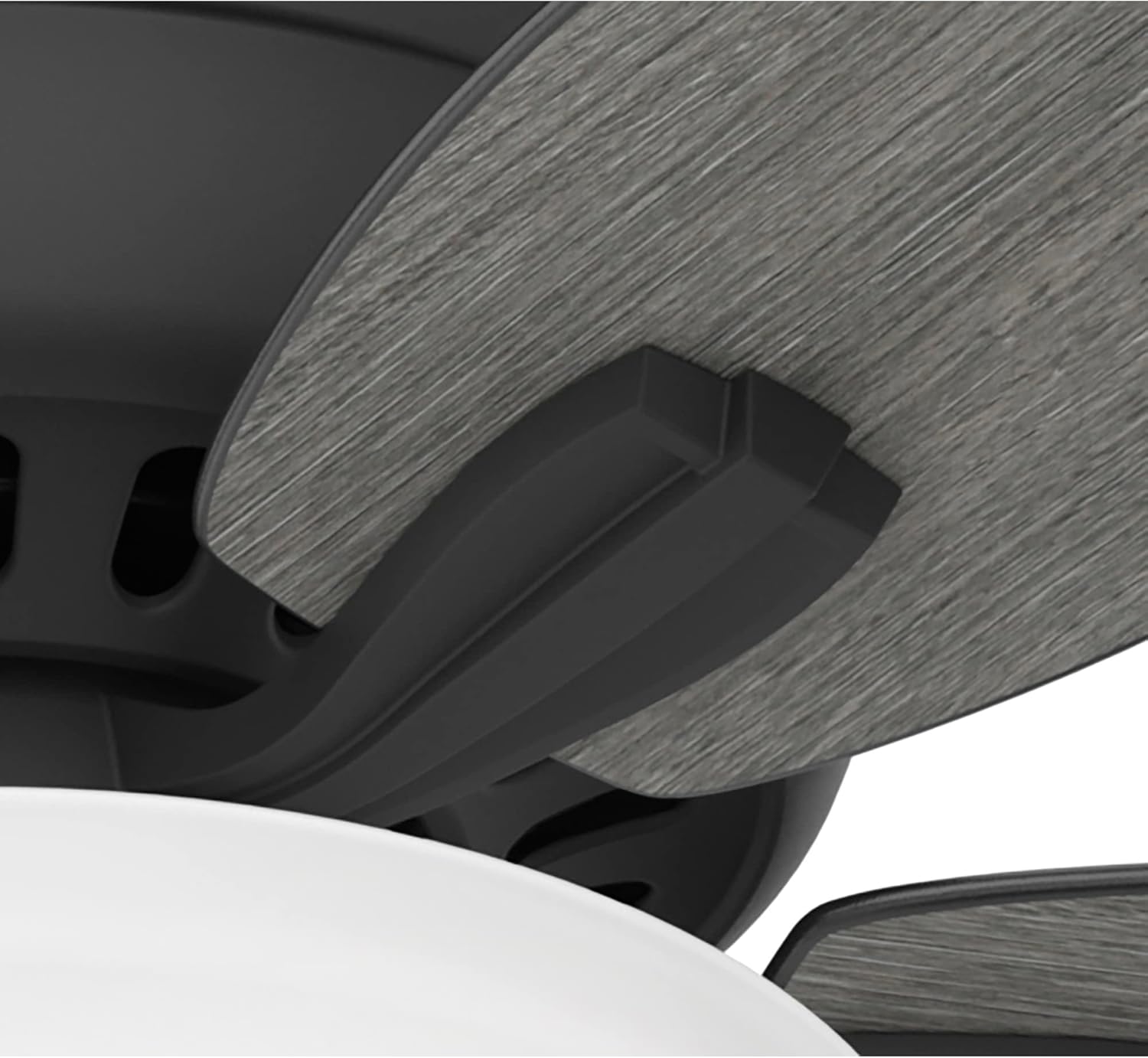

Figure 4.5: Detail of how the fan blades attach to the motor housing.

Umfanekiso 4.6: View of the fan's motor housing, featuring the Hunter brand emblem.

5. Iziqondiso Zokusebenza

The Hunter Newsome ceiling fan is operated using two pull chains: one for fan speed and one for the light.

Ukulawula Isivinini Sabalandeli

• Pull the fan speed chain repeatedly to cycle through the three available speeds (High, Medium, Low) and Off.

Ukulawula Ukukhanya

• Pull the light chain to turn the LED light On or Off.

Ama-Blades Abuyiseleka emuva

The fan features reversible blades, allowing you to change the blade finish to match your decor. To reverse the direction of airflow for seasonal comfort, locate the reverse switch on the fan motor housing (typically a small slide switch).

• For cooling (summer), set the switch to ensure downward airflow.
• For heat circulation (winter), set the switch to ensure upward airflow.

Figure 5.1: Fan blades showing the wood grain finish option.

Figure 5.2: Fan blades showing the matte black finish option.

6. Isondlo Nokunakekela

Regular maintenance ensures the longevity and optimal performance of your Hunter Newsome ceiling fan.

• Ukuhlanza: Periodically clean the fan blades and motor housing with a soft, damp indwangu. Gwema izinto zokuhlanza ezilimazayo ezingase zilimaze isiphetho.
• I-Blade Balancing: If the fan wobbles, ensure all blade screws are tight. A balancing kit (not included) can be used if wobbling persists.
• Ukushintshwa Kwebhalbhu Elikhanyayo: The fan uses energy-efficient LED bulbs. If replacement is needed, ensure power is off and use bulbs of the same type and wattage.
• Ukuhlolwa Konyaka: Annually check all connections and mounting hardware for tightness.

7. Umhlahlandlela wokuxazulula izinkinga

Bheka ithebula elingezansi ngezinkinga ezivamile nezisombululo zazo.

8. Quality and Testing

Hunter is committed to producing high-quality, reliable ceiling fans. The following video provides insight into the rigorous testing and certification processes that Hunter products undergo to ensure safety and performance.

9. Ulwazi Lwewaranti

The Hunter Newsome 52396 ceiling fan comes with a limited lifetime motor warranty. This warranty covers defects in materials and workmanship of the fan motor for the lifetime of the original purchaser. For full details, terms, conditions, and exclusions, please refer to the warranty documentation included with your purchase or visit the official Hunter webindawo.

10. Ukwesekwa Kwamakhasimende

For further assistance, technical support, or replacement parts, please contact Hunter Customer Service. You can also find more information and products by visiting the Hunter Store.

• Vakashela i- Hunter Store on Amazon.
• Refer to the official Hunter website for direct contact information and additional resources.
