Incwadi Yomsebenzisi Yephrinta Yerisidi Ye-Everycom EC-901 Thermal POS

1. Isingeniso

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Everycom EC-901 Thermal POS Receipt Printer. Please read this manual thoroughly before using the printer to ensure proper functionality and longevity.

Umfanekiso 1: Everycom EC-901 Thermal POS Receipt Printer. This image displays the compact design of the printer with a sample receipt emerging from the top.

Izici Eziyinhloko:

• Isivinini Sokuphrinta Esisheshayo: Up to 160mm per second for efficient receipt generation.
• Ukulayishwa Kwamaphepha Okulula: Drop-in paper loading mechanism for quick and simple media changes.
• Idizayini Ehlangene: Integrated power supply for a clean and space-saving workstation.
• Variable Paper Width: Supports both 58mm and 80mm thermal paper rolls.
• Built-In Buzzer: Provides audible notifications for various printer statuses.
• Isisiki Esizenzakalelayo: Automatically cuts receipts after printing for convenience.
• Ukuxhumana: USB and LAN interfaces for versatile integration.

2. Ukusetha nokufakwa

2.1 Ukukhipha kanye nokuqinisekiswa kokuqukethwe

Carefully unpack the printer and verify that all components are present. The package should contain:

• Everycom EC-901 Thermal POS Receipt Printer
• Roll paper × 1 (for initial testing)
• CD-ROM (containing drivers, utility software, and digital manuals)
• Umhlahlandlela Wephepha
• Paper Bearing
• Ikhebula le-USB
• Ikhebula le-Adapter yamandla

2.2 Ukuxhuma Iphrinta

1. Ukuxhuma kwamandla: Connect the power adapter cable to the printer's power port and then to a suitable power outlet.
2. Uxhumano Lwedatha:
   • Isixhumi esibonakalayo se-USB: Connect the provided USB cable from the printer's USB port to an available USB port on your computer or POS system.
   • Isixhumi esibonakalayo se-LAN: For network printing, connect an Ethernet cable from the printer's LAN port to your network router or switch.

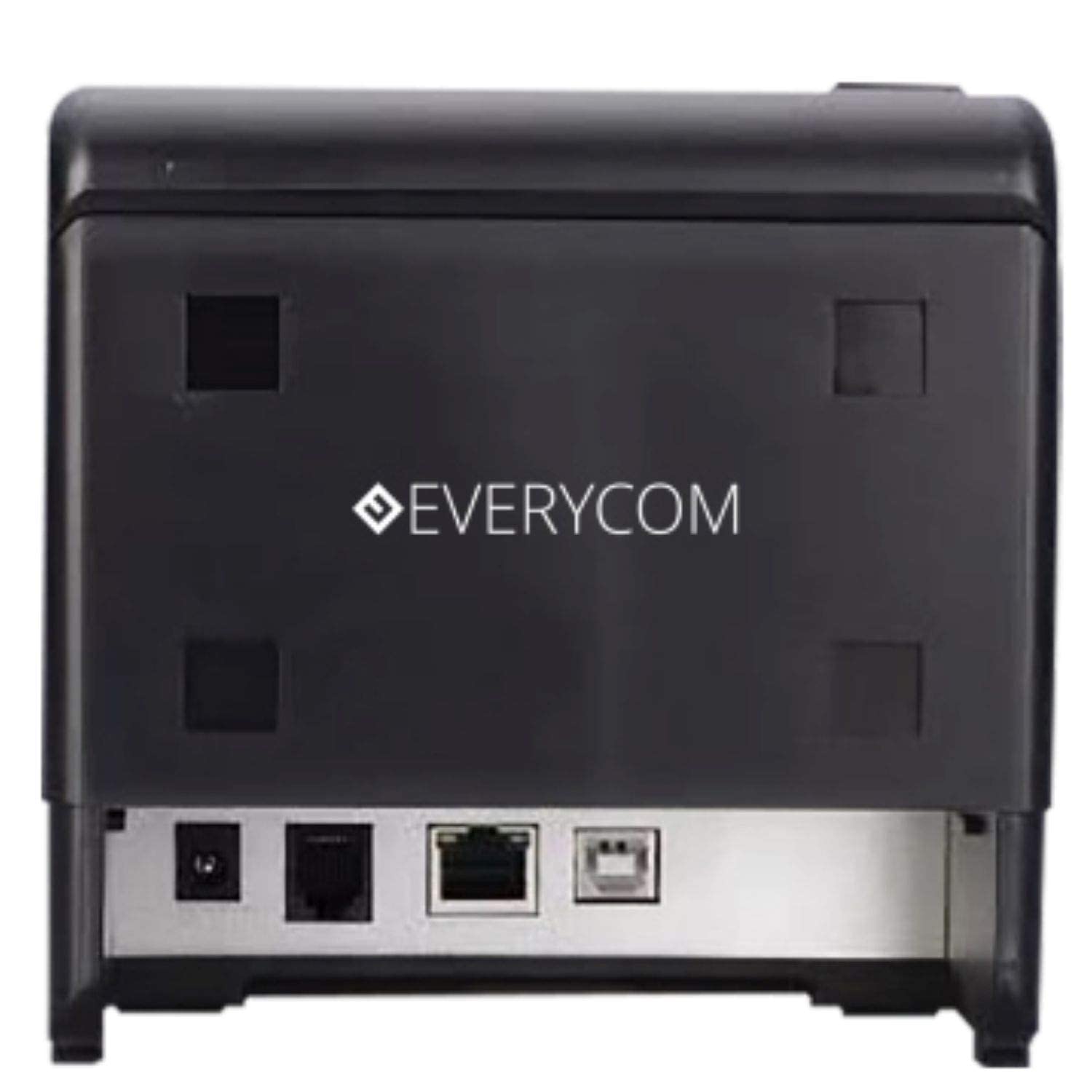

Umfanekiso 2: Ngemuva view of the Everycom EC-901 printer. This image highlights the various connectivity ports including USB, LAN, and the power input.

2.3 Ukulayisha Iphepha Elishisayo

The EC-901 printer features a convenient drop-in paper loading system.

1. Qinisekisa ukuthi iphrinta icishiwe noma ikwimodi yokulinda.
2. Press the cover open button (usually located on the side or front) to open the top cover of the printer.
3. Insert the thermal paper roll into the paper compartment with the printing side facing the print head. Ensure the roll is seated correctly and feeds smoothly.
4. Donsa inani elincane lephepha lidlule endaweni yokusika.
5. Close the top cover firmly until it latches securely. The printer will automatically feed the paper to the correct position.

Umfanekiso 3: Everycom EC-901 printer with the top cover open. This image illustrates the internal compartment where the thermal paper roll is loaded.

2.4 Ukufakwa komshayeli

Insert the provided CD-ROM into your computer's optical drive and follow the on-screen instructions to install the printer drivers and utility software. Alternatively, drivers can be downloaded from the Everycom official webindawo.

3. Ukusebenzisa Iphrinta

3.1 Ukuvula / Ukuvula

To power on the printer, press the power switch located on the front or side of the unit. The power indicator light will illuminate. To power off, press the switch again.

3.2 Amarisidi Okuphrinta

Once the printer is connected and drivers are installed, you can print receipts from your POS software or application. The printer supports fast printing at up to 160mm per second.

3.3 Auto Cutter Function

The EC-901 is equipped with an auto cutter that automatically cuts the receipt paper after each print job, ensuring clean and professional-looking receipts.

3.4 Buzzer Notifications

The built-in buzzer provides audible alerts for various printer statuses, such as paper out, cover open, or error conditions. Refer to the utility software for configuring buzzer settings.

3.5 Ukusebenza Komsindo Ophansi

Thermal printers generally operate with reduced noise levels, making the EC-901 suitable for various work environments where quiet operation is desired. The printer uses heat for printing, eliminating the need for ink cartridges and contributing to lower operating noise.

4. Isondlo

Regular maintenance ensures optimal performance and extends the lifespan of your Everycom EC-901 printer.

4.1 Ukuhlanza Ikhanda Lokuphrinta

The thermal print head should be cleaned periodically to maintain print quality. Use a soft, lint-free cloth dampifakwe i-isopropyl alcohol. Sula ngobumnene indawo yekhanda lokuphrinta. Qinisekisa ukuthi iphrinta icishiwe futhi ipholile ngaphambi kokuhlanza.

4.2 Cleaning the Platen Roller

The platen roller can accumulate paper dust. Clean it with a soft cloth dampened with isopropyl alcohol. Rotate the roller manually to clean its entire surface.

4.3 Ukuhlanza Ingaphandle

Wipe the exterior of the printer with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.

5. Ukuxazulula izinkinga

If you encounter issues with your printer, refer to the following common troubleshooting steps:

• Awekho Amandla: Ensure the power cable is securely connected to both the printer and the power outlet. Check if the power switch is in the 'On' position.
• Akukho Okuphumayo Kokuphrinta:
  • Verify that the paper roll is loaded correctly and there is sufficient paper.
  • Check the data cable connection (USB or LAN) to your computer/POS system.
  • Ensure the printer drivers are correctly installed and the printer is selected as the default printer in your software.
  • Check for any error indicator lights or buzzer sounds.
• Ikhwalithi Yokuphrinta Engalungile:
  • Hlanza ikhanda lokuphrinta njengoba kuchaziwe esigabeni Sokulungisa.
  • Qinisekisa ukuthi usebenzisa iphepha lokushisa elisezingeni eliphezulu.
  • Adjust print density settings through the printer driver if available.
• Ama-Paper Jam:
  • Open the top cover and carefully remove any jammed paper.
  • Ensure the paper roll is installed correctly and not too tight or loose.
  • Clean the paper path and platen roller.

For persistent issues, please contact Everycom customer support.

6. Imininingwane

The following table details the technical specifications of the Everycom EC-901 Thermal POS Receipt Printer:

7. Iwaranti kanye Nokusekela

7.1 Ulwazi Lwewaranti

The Everycom EC-901 Thermal POS Receipt Printer comes with a Iwaranti yonyaka ongu-1 from the date of purchase. Please retain your purchase receipt as proof of warranty. The warranty covers manufacturing defects under normal use conditions. It does not cover damage caused by misuse, accidents, unauthorized repairs, or consumables.

7.2 Ukwesekwa Kwamakhasimende

For technical assistance, warranty claims, or any product-related inquiries, please contact Everycom Customer Care:

• Inombolo Yamahhala: 1800 121 4480
• Amahora Okusebenza: Monday - Saturday, 10:00 AM - 6:30 PM (Except on Public Holidays)

Umfanekiso 4: Everycom Customer Service details. This image provides the toll-free number and working hours for customer support.
