UNIWEIGH Digital Pocket Scale P-200 Instruction Manual

1. Isingeniso

Thank you for choosing the UNIWEIGH Digital Pocket Scale P-200. This precision instrument is designed for accurate weighing of small items, offering a maximum capacity of 200 grams with a readability of 0.01 grams. Its compact and durable design makes it ideal for various applications, including measuring jewelry, coins, spices, and other small objects. Please read this manual carefully to ensure proper use and maintenance of your scale.

2. Umkhiqizo Uphelileview

The UNIWEIGH P-200 Digital Pocket Scale features a robust design with multiple functions to enhance your weighing experience.

Izici Eziyinhloko:

• Idizayini Ephathekayo: Rubberized, shock-resistant clamshell design for durability and easy transport.
• Ukunemba okuphezulu: Accurate readings from 0.03g to 200g with 0.01g readability.
• Izindlela Zokukala Eziningi: Supports g, oz, ozt, dwt, ct, gn.
• Umsebenzi we-Tare: Easily zero out the weight of containers.
• Isibonisi se-LCD esikhanyayo: Clear and easy-to-read display in all lighting conditions.
• Ukuvala ngokuzenzakalela: Conserves battery life with a 180-second automatic shut-off.
• Overload & Low Battery Indication: Provides alerts for optimal performance.
• Easy Calibration: Includes a 50g calibration weight for user calibration.

Izingxenye Zomkhiqizo:

The scale comes with the main unit, a protective flip case, a 50g calibration weight, and two AAA batteries.

Image: The UNIWEIGH Digital Pocket Scale P-200, shown open with its stainless steel weighing platform, LCD display, control buttons, and a 50g calibration weight. Two AAA batteries are also visible.

Image: A collage highlighting the scale's features: a protective flip case, magnetic design for secure closure, an easy-to-clean stainless steel platform, a clear LCD display, and user-friendly control buttons.

3. Setha

3.1 Ukufakwa kwebhethri

1. Open the battery compartment located on the underside of the scale.
2. Faka amabhethri amabili e-AAA, uqinisekise ukuthi i-polarity (+/-) ilungile.
3. Vala ikhava yengxenye yebhethri ngokuphephile.

3.2 Ukusetshenziswa Kokuqala

1. Place the scale on a flat, stable, and vibration-free surface.
2. Press the 'ON/OFF' button to turn on the scale. The LCD display will light up and show '0.00g' when ready for use.

4. Iziqondiso Zokusebenza

4.1 Izinto Zokulinganisa

1. Ensure the scale is turned on and displays '0.00g'.
2. Gently place the item(s) to be weighed onto the center of the stainless steel platform.
3. Funda isisindo esivezwe esikrinini se-LCD.

4.2 Umsebenzi weTare

The Tare function allows you to subtract the weight of a container, so you only measure the net weight of the contents.

1. Place an empty container on the weighing platform.
2. Press the 'TARE' button. The display will reset to '0.00g'.
3. Add the items you wish to weigh into the container. The display will show only the weight of the items.

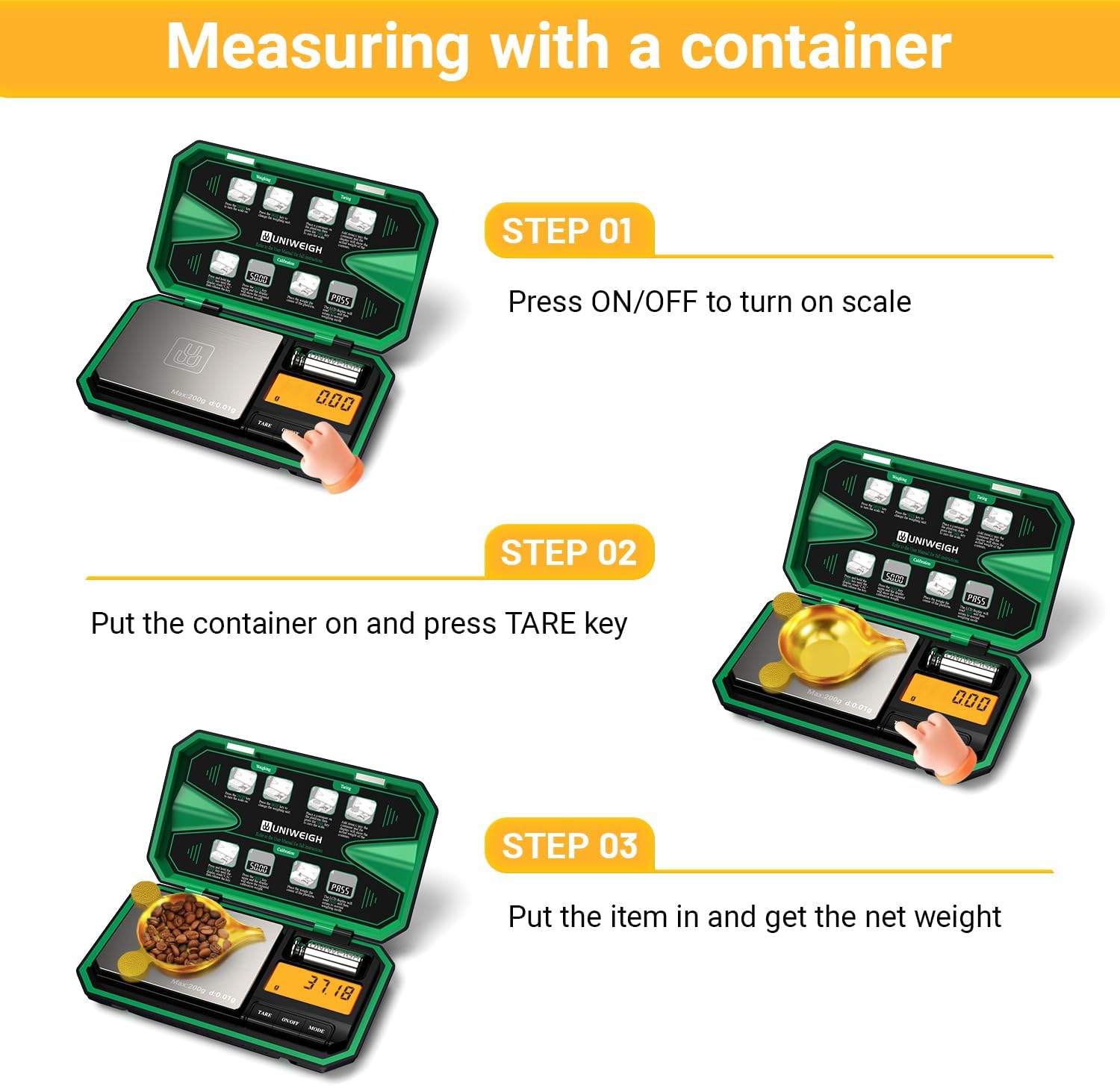

Image: A visual guide demonstrating the three steps for measuring with a container: 1. Turn on the scale, 2. Place the container and press TARE, 3. Add items to get the net weight.

4.3 Ukuguqulwa kweyunithi

The scale supports 6 different weighing units.

1. With the scale on, press the 'MODE' button repeatedly to cycle through the available units: g (grams), oz (ounces), ozt (troy ounces), dwt (pennyweights), ct (carats), gn (grains).
2. Select the desired unit before weighing or convert the displayed weight after weighing.

Image: The scale's LCD display cycling through various measurement units, including grams, ounces, troy ounces, pennyweights, carats, and grains, illustrating the unit conversion feature.

4.4 Ukulinganisa

Calibration ensures the accuracy of your scale. It is recommended to calibrate periodically or if you suspect inaccurate readings.

1. Turn the scale ON and wait until '0.00g' is displayed.
2. Press and HOLD the 'MODE' button until 'CAL' is displayed, then release the button.
3. Press the 'MODE' button again. The display will show the required calibration weight (e.g., '50.00g').
4. Place the included 50g calibration weight gently onto the center of the platform.
5. The display will show 'PASS' and then return to normal weighing mode, indicating successful calibration.

5. Isondlo

5.1 Ukuhlanza

• Wipe the stainless steel platform with a soft, damp indwangu. Ungasebenzisi izinto zokuhlanza ezidukayo noma ucwilise isikali emanzini.
• Keep the scale clean and dry to ensure accurate readings and prolong its lifespan.

5.2 Isitoreji

• Store the scale in its protective clamshell case when not in use to prevent damage.
• Avoid storing the scale in extreme temperatures, high humidity, or areas with strong vibrations.
• Susa amabhethri uma isikali singeke sisetshenziswe isikhathi eside ukuvimbela ukuvuza.

6. Ukuxazulula izinkinga

If you encounter any issues with your UNIWEIGH Digital Pocket Scale, please refer to the following common problems and solutions:

7. Imininingwane

• Ibhrendi: UNIWEIGH
• Inombolo Yemodeli: P-200
• Amandla: 200 amagremu
• Ukufundeka: 0.01 amagremu
• Amayunithi Wesisindo: g, oz, ozt, dwt, ct, gn
• Uhlobo lokubonisa: I-LCD ekhanyayo
• Amandla: 2 x AAA Amabhethri (afakiwe)
• Okubalulekile: Acrylonitrile Butadiene Styrene, Rubber, Stainless Steel
• Ubukhulu bomkhiqizo: 5.71 x 3.43 x 0.94 amayintshi
• Isisindo Sento: Amagremu angu-225 (cishe ama-ounces angu-7.9)
• Izici ezikhethekile: Auto Shut Off, Tare Function, Precision Balanced, Portable, Easy Calibration

8. Iwaranti kanye Nokusekela

UNIWEIGH is committed to providing quality products and customer satisfaction. If you encounter any problems with your Digital Pocket Scale P-200, please contact our customer support team. We are dedicated to providing timely solutions and assistance.

For support, please refer to the contact information provided with your product packaging or visit the official UNIWEIGH webindawo.
