Radiolink T8S FHSS 8CH RC Handle Transmitter User Manual

Isingeniso

This manual provides comprehensive instructions for the Radiolink T8S FHSS 8-channel RC Handle Transmitter. It covers product features, specifications, setup procedures, operation guidelines, and maintenance tips to ensure optimal performance and longevity of your device. Please read this manual thoroughly before using the transmitter.

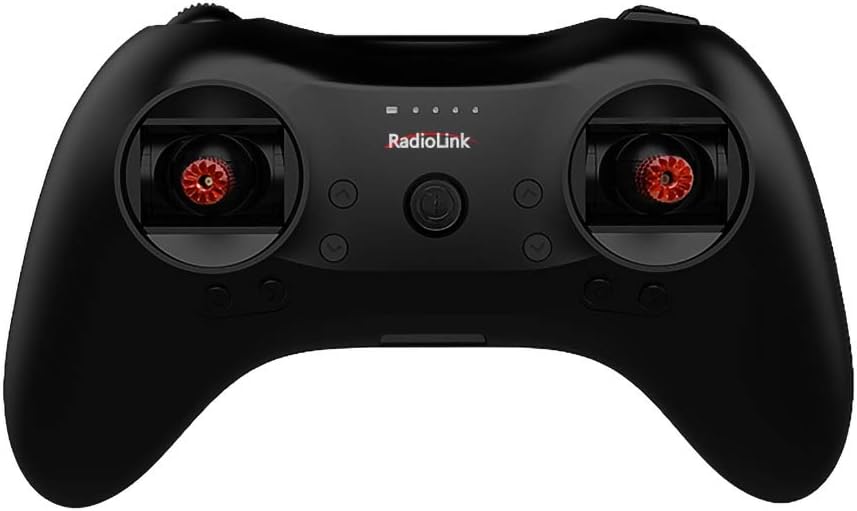

Isithombe: Ngaphambili view of the Radiolink T8S FHSS 8-channel RC Handle Transmitter, showcasing its ergonomic design and dual joysticks.

Izici Eziyinhloko

• Excellent Anti-interference: FHSS 67CH pseudo random frequency hopping for stable remote control up to 2000 meters in air. Supports SBUS, PPM, and PWM output with 3ms response for 8 channels.
• Idizayini ye-Ergonomic: Compact size and suitable weight with removable joysticks for comfortable, extended use.
• USB Charging and Low Consumption: Built-in 1S 800mAh lithium battery, rechargeable via USB. Provides approximately 5 hours of operation on a full charge.
• Multiple Model Support: Compatible with fixed-wing aircraft, gliders, multicopters, RC cars, and boats. Works with R6FG, R6F, R7FG, R8EF, and R8FM mini receivers. This package includes R8FM and R8EF receivers.
• App Setup and USB Upgrade: Parameters can be configured and modified using an Android App. USB port allows for firmware upgrades and new function additions.

Isithombe: I-overview graphic highlighting key features of the T8S transmitter, including FHSS, 2KM control distance, mini receiver compatibility, app parameter setup, USB charging, SBUS/PPM/PWM support, USB upgrade, and 8-channel functionality.

Okuqukethwe Kwephakheji

Iphakheji ejwayelekile ihlanganisa izinto ezilandelayo:

• 1 * T8S Transmitter
• 1 * R8EF / R8FM / MINI Receiver (Optional, specific model included as per purchase)
• 1 * Ikhebula le-USB

Imininingwane Yezobuchwepheshe

Isithombe: Eduze view of the R8EF and R8FM mini receivers, illustrating their compact size and connection points.

Umhlahlandlela Wokusetha

1. Ukushaja ibhethri

The T8S transmitter features a built-in 1S 800mAh lithium battery. To charge the battery, connect the transmitter to a computer or a mobile charger using the provided USB cable. The green battery indicator will flash when the voltage is below 3.7V, signaling a low battery alarm.

Image: Close-up of the Radiolink T8S transmitter's top, showing the USB charging port.

Imiyalelo yokusebenza

1. Transmitter Controls Overview

The T8S transmitter features a standard layout for intuitive control. Familiarize yourself with the various switches, buttons, and sticks:

Image: Detailed diagram of the Radiolink T8S transmitter, labeling the throttle/rudder stick, aileron/elevator stick, power button, trimmer buttons, battery indicator, three-way switches (flight mode switch), toggle-switch (PTZ adjustment), and push-button (camera shutter).

• Throttle/Rudder Stick: Controls throttle and rudder movements.
• Aileron/Elevator Stick: Controls aileron and elevator movements.
• Inkinobho yamandla: Ivula/ivale isidlulisi.
• Trimmer Buttons: Used for fine-tuning control surfaces.
• Inkomba Yebhethri: Ibonisa ileveli yebhethri yamanje.
• Three-way Switches (Flight Mode Switch): Configurable for different flight modes.
• Toggle-switch (PTZ Adjustment): Used for Pan-Tilt-Zoom adjustments.
• Push-button (Camera Shutter): Can be assigned for camera functions.

Basic menu, advanced menu, and various mix controls can be customized for channels 6 and above. Flight modes are typically set using the two 3-way switches in the flight controller PIX by default.

2. Multiple Model Compatibility

The T8S transmitter is designed for versatility, supporting a wide range of RC models. It is compatible with fixed-wing aircraft, gliders, multicopters, RC cars, and RC boats. The receiver with a 21cm antenna is particularly suitable for RC boat control.

Image: Graphic illustrating the Radiolink T8S transmitter's compatibility with various RC models, including fixed-wing aircraft, gliders, multicopters, RC cars, and RC boats.

3. App Setup and USB Upgrade

Parameters for the T8S can be easily configured and modified using a dedicated Android application. This allows for advanced customization of settings. Additionally, the USB port enables firmware upgrades, ensuring your transmitter always has the latest features and improvements.

Image: Screenshot of the Mission Planner software interface, showing various flight mode settings and calibration options, demonstrating the advanced configuration capabilities.

Isondlo

• Ukuhlanza: Use a soft, dry cloth to clean the transmitter. Avoid using solvents or abrasive cleaners.
• Isitoreji: Gcina i-transmitter endaweni epholile, eyomile kude nelanga eliqondile namazinga okushisa aphezulu.
• Ukunakekelwa kwebhethri: For long-term storage, ensure the built-in lithium battery is charged to approximately 50% to prolong its lifespan. Avoid fully discharging the battery.
• Ukuvuselelwa kwe-Firmware: Regularly check the Radiolink official webisayithi lezibuyekezo ze-firmware ukuze kuqinisekiswe ukusebenza kahle nokufinyelela ezicini ezintsha.

Ukuxazulula inkinga

• I-Transmitter Ayivuli: Ensure the battery is sufficiently charged. Connect the transmitter to a USB power source to charge.
• Receiver Not Binding:
  1. Verify that the transmitter and receiver are within 1 meter during the binding process.
  2. Confirm that the receiver is receiving power.
  3. Ensure the ID SET button on the receiver is pressed correctly for one second and released.
• Loss of Control Range:
  1. Check for potential interference sources in the operating environment.
  2. Ensure the receiver antenna is properly positioned and not obstructed.
  3. Verify the transmitter battery level.
• Impendulo Yokulawula Engalungile:
  1. Recalibrate the transmitter sticks and channels if necessary.
  2. Check the settings in the Android App for any misconfigurations.

Iwaranti kanye Nokusekela

For warranty information, technical support, or service inquiries, please refer to the official Radiolink webisayithi noma uthinte umdayisi wakho ogunyaziwe. Gcina irisidi lakho lokuthenga njengobufakazi bokuthenga izimangalo zewaranti.

Manufacturer recommended age for this product is 15 years and up.
