ViewIncwadi Yomsebenzisi ye-Sonic VP3481 engu-34-inch UWQHD engu-100Hz Curved Monitor

1. Isingeniso

I ViewSonic VP3481 monitor offers an immersive curved screen with stunning UWQHD+ 3440x1440 resolution. Designed for precise color accuracy, it delivers incredible detail and vivid colors across wide viewing angles. This monitor supports HDR10 for a wider dynamic range and richer contrast, making it suitable for video editing, content development, and other color-critical applications. Key features include a 100Hz refresh rate, AMD FreeSync™ technology for smooth playback, and versatile connectivity options including USB 3.1 Type-C, DisplayPort, and HDMI.

2. Setha

2.1. Okuqukethwe Kwephakheji

Before beginning installation, please verify that all items listed below are present in your package:

• I-LCD Monitor
• Ikhebula Lamandla
• I-adaptha ye-AC/DC
• Ikhebula le-USB 3.1 Uhlobo C
• Ikhebula le-USB 3.0
• DP kuya DP Cable
• HDMI 2.0 Ikhebula
• Ikhebula Lomsindo
• Factory Color Calibration Report

2.2. Gada Umhlangano

Carefully remove the monitor from its packaging. Attach the monitor stand to the back of the display panel. Ensure all connections are secure before placing the monitor on a stable surface.

Figure 2.2.1: Monitor dimensions for proper placement and setup.

2.3. Ukuxhumana

The VP3481 monitor offers flexible connectivity options to integrate with various devices. Connect your computer or other video sources using the appropriate cables.

• I-USB 3.1 Type-C: This single cable solution supports audio, data, video, and charging (up to 60W) for compatible laptops and devices, reducing cable clutter.
• I-HDMI 2.0: Two HDMI ports are available, supporting HDCP 2.2 content protection for secure 4K content playback.
• I-DisplayPort: One DisplayPort input is provided for high-resolution video and audio transmission.
• Ihabhu le-USB 3.0: The monitor features a built-in USB 3.0 hub with three downstream ports and two upstream ports for connecting peripherals.

Figure 2.3.1: USB Type-C provides a single-cable solution for multiple functions.

Umdwebo 2.3.2: Ngaphezuluview of the monitor's input/output ports.

3. Ukusebenzisa i-Monitor

3.1. Vula/Vala

Cindezela inkinobho yamandla etholakala kumonitha ukuze uyivule noma uyivale. Isibani senkomba yamandla sizokhanyisa uma isiqapha sisebenza.

3.2. Izici zokubonisa

The VP3481 offers advanced display technologies for an optimal viewisipiliyoni:

• UWQHD (3440x1440p) Resolution: Experience sharp, detailed images across the expansive 34-inch curved screen.
• Izilinganiso Zokuvuselela ze-100Hz: Enjoy smooth, tear-free visuals, ideal for fast-paced content and video editing.
• Ukusekelwa kwe-HDR10: Delivers a wider dynamic range of vivid colors and richer contrast for a more immersive viewisipiliyoni.
• AMD FreeSync™ Technology: Synchronizes the monitor's refresh rate with your graphics card to eliminate screen tearing and stuttering.

Figure 3.2.1: HDR10 support enhances color and contrast for stunning visuals.

Figure 3.2.2: The 100Hz refresh rate and AMD FreeSync™ ensure smooth playback.

3.3. Color Accuracy and Calibration

The VP3481 is engineered for ultimate color accuracy, providing 100% sRGB color space coverage and a Delta E<2 accuracy value. An integrated color uniformity function ensures consistent chromaticity across the screen, and a 14-bit 3D look-up table generates a smooth palette of 4.39 trillion colors.

For professional applications, hardware calibration is available with the optional ViewSonic Colorbration Kit (sold separately), allowing for quick and easy monitor calibration.

Figure 3.3.1: Curved viewing experience optimized for color-critical tasks.

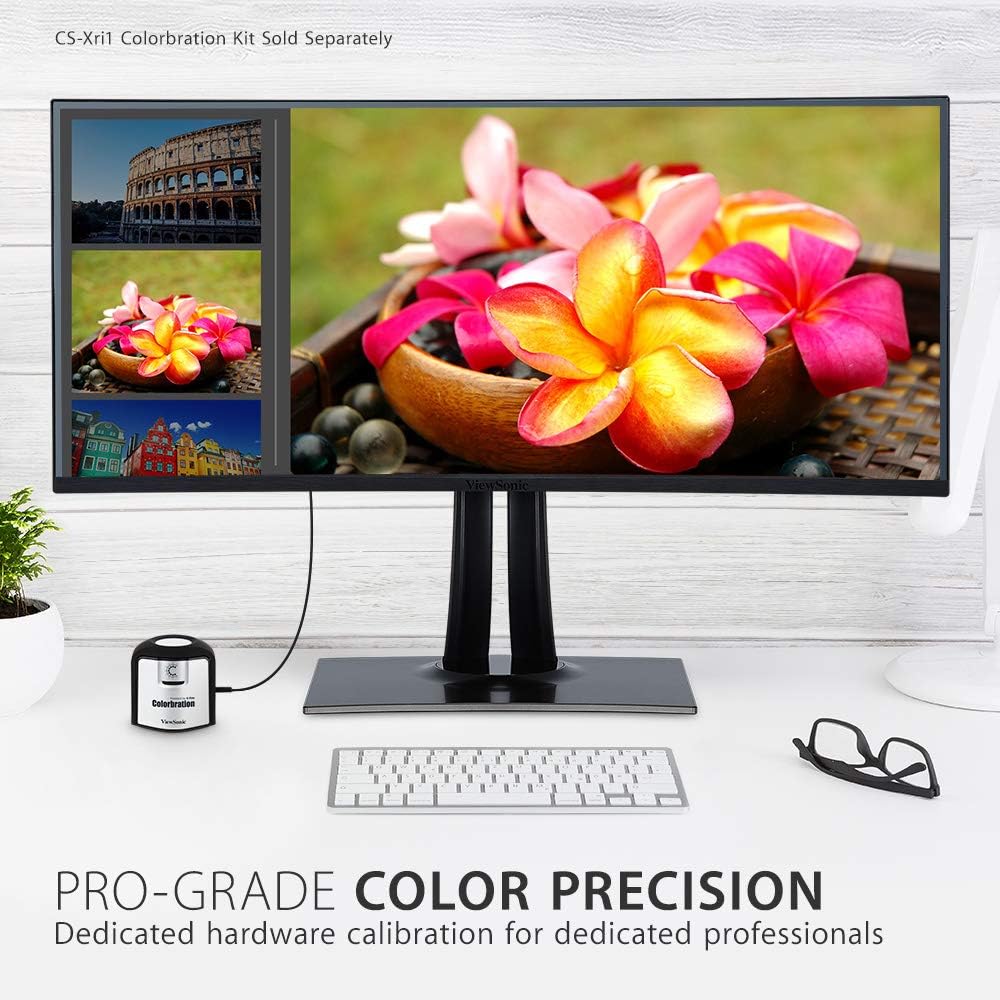

Figure 3.3.2: Dedicated hardware calibration is available for professional color precision.

4. Isondlo

Ukuqinisekisa ukuphila isikhathi eside nokusebenza kahle kwakho ViewSonic VP3481 monitor, follow these maintenance guidelines:

• Ukuhlanza isikrini: Sula kahle isikrini ngendwangu ethambile, engenantambo. Ukuze uthole amamaki anenkani, kancane dampFaka indwangu ngamanzi noma isihlanzi sesibuko esithambile, esingagugi. Gwema ukusebenzisa izihlanzi ezisekelwe kotshwala noma amakhemikhali anamandla.
• Ukuhlanza i-Casing: Sebenzisa indwangu ethambile, eyomile ukuhlanza i-monitor's casing. Ungasebenzisi izihlanzi eziwuketshezi ngqo ku-casing.
• Ukungenisa umoya: Qinisekisa ukuthi izimbobo zokungena komoya eziqaphayo azivinjiwe ukuvikela ukushisa ngokweqile.
• Ukuphathwa kwamandla: Khipha imonitha ku-outlet yamandla phakathi neziphepho zombani noma lapho ingeke isetshenziswe isikhathi eside.

5. Ukuxazulula izinkinga

If you encounter issues with your ViewSonic VP3481 monitor, refer to the following common troubleshooting steps:

• Awekho Amandla: Ensure the power cable and AC/DC adapter are securely connected to both the monitor and a working power outlet. Check if the power indicator light is on.
• No Signal/Blank Screen: Verify that the video cable (USB-C, HDMI, or DisplayPort) is correctly connected to both the monitor and your computer. Ensure the correct input source is selected on the monitor.
• Image Problems (Distorted, Flickering, Incorrect Colors): Check your computer's display settings for correct resolution and refresh rate. Ensure the video cable is not damaged. Perform a factory reset via the monitor's On-Screen Display (OSD) menu.
• Awukho Umsindo: If using the monitor's built-in speakers or headphone jack, ensure the audio cable is connected (if applicable) and the volume is not muted or set too low on both the monitor and your computer.
• Izimbobo ze-USB azisebenzi: Ensure the USB upstream cable is connected from the monitor to your computer. Check device drivers on your computer.

6. Imininingwane

7. Iwaranti kanye Nokusekela

I ViewSonic VP3481 monitor comes with an industry-leading 3-year limited warranty. This coverage includes access to our US-based customer service team for technical assistance and support. For detailed warranty terms and conditions, please refer to the official ViewSonic webisayithi noma imibhalo efakwe nomkhiqizo wakho.

Ukuze uthole olunye usizo, sicela uvakashele i- ViewSonic Store noma uxhumane nokwesekwa kwamakhasimende.
