Alesis Virtue AHP-1W Digital Piano User Manual

1. Isingeniso

This manual provides essential information for the setup, operation, and maintenance of your Alesis Virtue AHP-1W Digital Piano. Please read these instructions thoroughly before using the instrument to ensure proper function and longevity.

Image 1: The Alesis Virtue AHP-1W Digital Piano, shown with its included stand and adjustable bench.

2. Yini EseBhokisini

Qinisekisa ukuthi zonke izinto ezilandelayo zifakiwe kuphakheji yakho:

• I-Virtue Digital Piano
• Isitendi sepiyano esinokuphumula komculo namaphedali angu-3
• Ibhentshi lepiyano elilungisekayo
• Izingxenye Zomhlangano
• I-adaptha yamandla
• Umhlahlandlela Womsebenzisi (le dokhumenti)
• Incwadi Yokuphepha Nesiqinisekiso

3. Setha

3.1 Umhlangano

The Alesis Virtue AHP-1W Digital Piano requires assembly of the stand, pedals, and bench. Follow the detailed instructions provided in the separate Assembly Parts guide. Ensure all screws and fasteners are securely tightened for stability.

3.2 Ukuxhuma Amandla

1. Connect the included Power Adapter to the DC IN port on the rear of the digital piano.
2. Plug the Power Adapter into a standard electrical outlet.

3.3 Audio and Data Connections

The Alesis Virtue AHP-1W offers various connectivity options:

• Stereo 1/4-inch Output: Okokuxhuma kwangaphandle amplifiers, mixers, or recording interfaces.
• MIDI In & Out: For connecting to MIDI devices such as sound modules, computers, or other keyboards.
• Okokukhiphayo kwe-USB: For connecting the piano to a computer for MIDI data transfer.
• Thumb Drive Input: For playing back or recording audio files via a USB flash drive.
• Okokufaka Kwesisizi: For connecting external audio sources like MP3 players.

Image 2: Rear panel connections of the Alesis Virtue AHP-1W, including Stereo 1/4-inch Output, MIDI In & Out, Power Adapter input, Thumb Drive input, and USB Output.

4. Iziqondiso Zokusebenza

4.1 Ukusebenza Okuyisisekelo

1. Vula/Vala: Press the Power button located on the control panel to turn the instrument on or off.
2. Ukulawula ivolumu: Adjust the Master Volume knob to set the overall output level of the built-in speakers or connected headphones.

4.2 Amazwi namathoni

The Alesis Virtue AHP-1W features 360 built-in premium voices. Use the dedicated voice selection buttons or the data dial to browse and select different instrument sounds, including acoustic pianos, electric pianos, organs, strings, and more.

• Layer Mode: Combine two different voices to play simultaneously when a key is pressed. Refer to the full user guide for specific instructions on activating and adjusting layer mode.
• Imodi yokuhlukanisa: Divide the keyboard into two sections, each with a different voice. This allows for playing two different instruments with the left and right hands.

Image 3: Detail of the Alesis Virtue AHP-1W control panel, emphasizing the 360 built-in sounds, 88 velocity-sensitive keys, and the three integrated pedals (sustain, soft, sostenuto).

4.3 Educational Features and Modes

The digital piano includes several features designed to assist with learning and practice:

• Imodi Yesifundo: Divides the 88-key keyboard into two identical sections with the same pitch and voice, facilitating practice with a teacher or another student.
• I-Metronome: A built-in metronome with an adjustable tempo range (30-280 BPM) helps maintain rhythm and timing during practice.
• One-Touch Song Mode: Access 160 built-in accompaniment styles. The backlit LCD screen displays chord names and notation.
• Izingoma zedemo: Features 80 demo songs for listening and learning.
• Imodi Yokuqopha: Allows users to record their performances and play them back for review.
• Skoove Lessons: The product includes a 3-month premium subscription to Skoove, an online platform offering interactive piano lessons.

Image 4: The Alesis Virtue AHP-1W Digital Piano, illustrating the location of the powerful 30-watt stereo speakers and the headphone output for private practice.

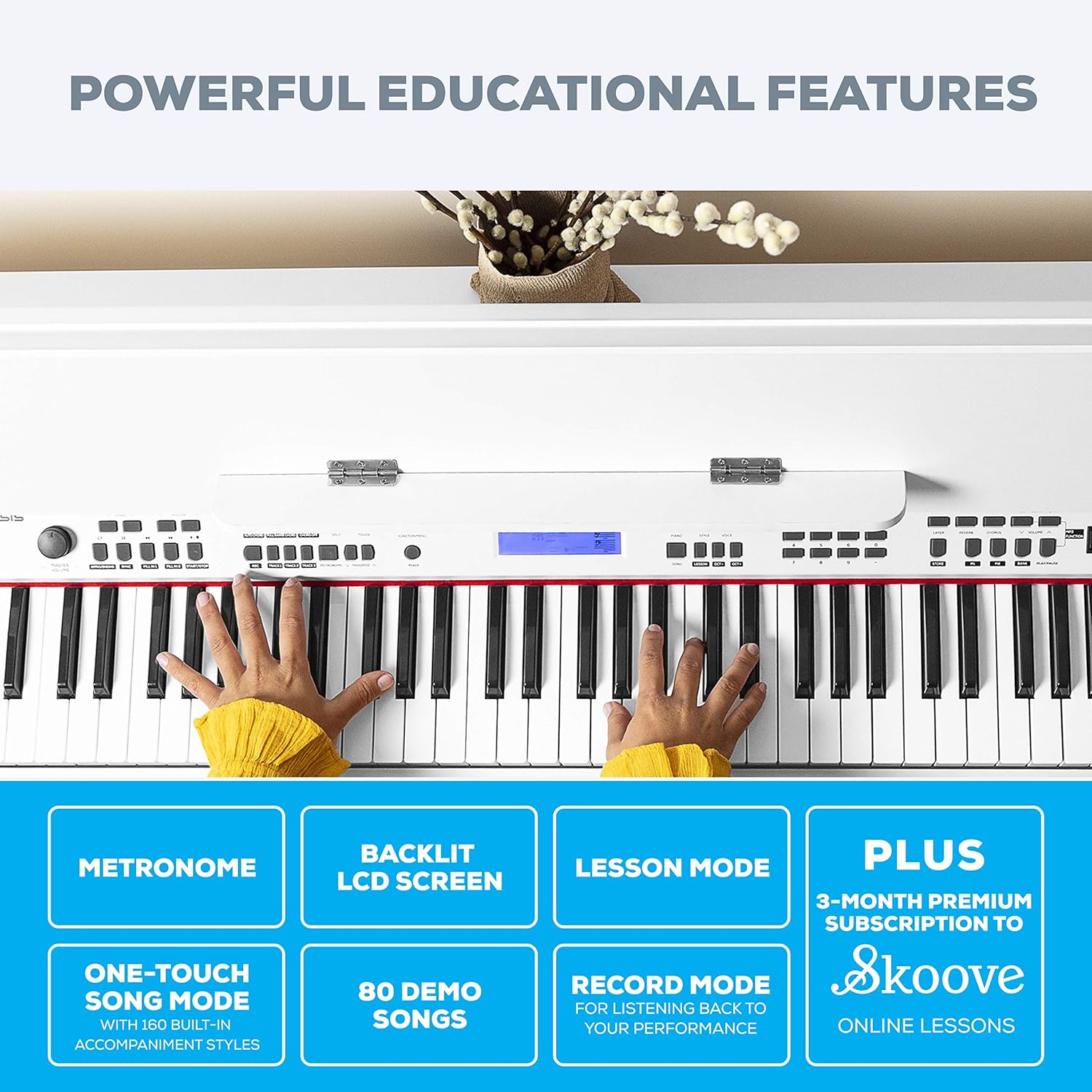

Image 5: The Alesis Virtue AHP-1W control panel, showcasing the backlit LCD screen and buttons for Metronome, Lesson Mode, One-Touch Song Mode, Demo Songs, and Record Mode.

5. Isondlo

To ensure the longevity and optimal performance of your Alesis Virtue AHP-1W Digital Piano, follow these maintenance guidelines:

• Ukuhlanza: Sebenzisa indwangu ethambile neyomile ukusula ubuso bepiyano. Uma ungcolile, susa kancaneamp cloth can be used, followed by a dry cloth. Avoid abrasive cleaners, solvents, or waxes.
• Imvelo: Keep the instrument away from direct sunlight, heat sources, and excessive humidity or dust. Extreme temperature changes can affect performance.
• Ezokuthutha: When moving the piano, ensure it is powered off and all cables are disconnected. Handle with care to prevent damage.

6. Ukuxazulula izinkinga

If you encounter issues with your Alesis Virtue AHP-1W, consult the following common troubleshooting steps:

• Awukho Umsindo:
  • Ensure the power adapter is securely connected and the piano is turned on.
  • Check the Master Volume knob and increase the volume.
  • If headphones are connected, disconnect them to check speaker output.
  • Verify that the correct voice is selected and not set to a silent patch.
• Okhiye Abaphenduli:
  • Qinisekisa ukuthi insimbi ivuliwe.
  • Check if any mode (e.g., Lesson Mode) is active that might affect key response.
• Umsindo Ohlanekezelwe:
  • Lower the Master Volume.
  • If connected to external audio equipment, check their volume levels and connections.

For more detailed troubleshooting or issues not covered here, refer to the comprehensive User Guide or contact Alesis customer support.

7. Imininingwane

8. Iwaranti kanye Nokusekela

For detailed warranty information and terms of service, please refer to the included Safety & Warranty Manual. For technical support, product registration, or additional inquiries, visit the official Alesis webisayithi noma uxhumane nomnyango wabo wesevisi yamakhasimende.

Isikhulu se-Alesis Webindawo: www.alesis.com
