1. Isingeniso
This manual provides detailed instructions for the installation, operation, and maintenance of the EPEVER Tracer3210AN MPPT Solar Charge Controller. The Tracer3210AN is designed for solar power systems, featuring Maximum Power Point Tracking (MPPT) technology to maximize energy harvest from solar panels. It supports 12V/24V DC auto-work systems and is compatible with various battery types, including Lead-acid (Sealed, Gel, Flooded) and Lithium-ion (LiFePO4, Li(NiCoMn)O2).
Izici ezibalulekile zifaka:
- Advanced MPPT control algorithm with tracking efficiency ≥99.5%.
- Uhlelo oluzenzakalelayo voltage recognition (12V/24V).
- Support for multiple battery types: Sealed, Gel (AGM), Flooded, LiFePO4, Li(NiCoMn)O2, and User-defined.
- Umklamo oyisisekelo ongemuhle ovamile.
- Ivolumu ezimeletage regulation constant voltage output function.
- Upgraded ultra-quiet design.
- LCD display for operational status and parameter settings.
- Communication interface (RS485) for external monitoring and parameter adjustment.
2. Iziyalezo Zokuphepha
Please read all instructions and warnings in this manual before installation and operation. Failure to follow these instructions may result in electric shock, fire, or severe injury.
- Ensure all wiring is correctly connected and securely fastened.
- Do not disassemble or attempt to repair the controller yourself. Contact qualified personnel for service.
- Install the controller in a well-ventilated area, away from flammable materials and corrosive gases.
- Qinisekisa ukuthi isistimu voltage is compatible with the controller's specifications.
- Always connect the battery first, then the solar panel, and finally the load. Disconnect in the reverse order.
- Wear appropriate personal protective equipment, including eye protection, when working with batteries and solar panels.
3. Umkhiqizo Uphelileview
The EPEVER Tracer3210AN is a compact and efficient solar charge controller. It features an LCD display for real-time monitoring and two buttons for navigation and settings.
Umfanekiso 3.1: Ngaphambili view of the EPEVER Tracer3210AN MPPT Solar Charge Controller, showing the LCD display and control buttons.
The controller's top and bottom panels feature connection terminals and heat dissipation fins.
Umfanekiso 3.2: Phezulu naphansi views of the controller, highlighting the terminals and model information.
4. Ukusetha nokufakwa
Proper installation is critical for the safe and efficient operation of your solar system. Follow the connection order carefully.
4.1 Ukuxhunywa kwezintambo
The Tracer3210AN uses common negative grounding. Ensure all connections are tight to prevent loose contacts and overheating.
Figure 4.1: Connection diagram illustrating the proper sequence for connecting the battery, load, and PV panel to the solar charge controller.
- Xhuma Ibhethri: Connect the battery to the controller's battery terminals (marked with a battery symbol). Observe polarity.
- Xhuma Umthwalo: Connect the DC load to the controller's load terminals (marked with a light bulb symbol). Observe polarity.
- Connect the PV Panel: Connect the solar panel array to the controller's PV terminals (marked with a solar panel symbol). Observe polarity.
Important: Disconnect in the reverse order: PV Panel → Load → Battery.
4.2 No-Battery Mode (G3 Version)
The G3 version of the Tracer-AN series supports a "No-Battery Mode," allowing direct connection to an inverter without a battery. This mode is suitable for specific applications where immediate power conversion is required.
Figure 4.2: Illustration of the controller operating in Battery Mode (with battery) and No-Battery Mode (direct to inverter).
Warning for No-Battery Mode:
- For high-frequency inverters: PV input power > (load output power + inverter conversion efficiency + controller conversion efficiency).
- For power frequency inverters: PV input power > (load output power + inverter conversion efficiency + controller conversion efficiency × 2).
5. Ukusebenza
The controller's LCD display provides real-time system information, and the two buttons (SELECT and ENTER) allow for navigation and parameter adjustment.
5.1 I-LCD Display Interface
The LCD cycles through various screens displaying parameters such as PV voltage, ibhethri voltage, charging current, load current, and energy statistics.
Umfanekiso 5.1: Eksamples of the LCD browse interface screens and the menu for setting battery types.
5.2 Ukusetha Uhlobo Lwebhethri
The controller supports various battery types. It is crucial to select the correct battery type for optimal charging and battery longevity. The default setting is "Sealed" lead-acid battery.
Ukusetha uhlobo lwebhethri:
- Press the "SELECT" button to navigate through the display interfaces until you reach the battery type setting screen.
- Press the "ENTER" button to enter the setting mode.
- Use the "SELECT" button to cycle through the available battery types (Sealed, Gel, Flooded, LiFePO4, Li(NiCoMn)O2, User).
- Press "ENTER" to confirm your selection.
For "User" defined battery types, detailed parameters can be set via optional accessories like MT50, WiFi adapter, BLE adapter, or PC software. Refer to the battery manufacturer's specifications for accurate user-defined parameters.
Figure 5.2: Table detailing voltage parameters for various battery types (Sealed, Gel, Flooded, User, LiFePO4, Li(NiCoMn)O2).
6. Isondlo
Ukugcinwa njalo kuqinisekisa ukuthi isilawuli sakho sokushaja selanga sihlala isikhathi eside futhi sisebenza kahle.
- Inhlanzeko: Gcina isilawuli sihlanzekile futhi singenalo uthuli kanye nemfucumfucu. Sebenzisa indwangu eyomile ukuhlanza.
- Izixhumanisi: Periodically check all wiring connections for tightness. Loose connections can cause overheating and damage.
- Ukungenisa umoya: Ensure the installation area has adequate ventilation to prevent overheating. Keep the heat sink fins clear of obstructions.
- Izimo Zemvelo: Qinisekisa ukuthi indawo yokusebenza ihlala ngaphakathi kwezinga lokushisa elishiwo kanye nomswakama.
7. Ukuxazulula izinkinga
This section addresses common issues you might encounter with the Tracer3210AN controller.
- Akukho Ukuboniswa/Amandla:
- Hlola uxhumo lwebhethri futhi uqinisekise i-polarity efanele.
- Qinisekisa umthamo webhethritage is within the controller's operating range (8-32V).
- Akukho Ukushaja:
- Ensure PV panel connections are correct and secure.
- Check PV panel voltage; it must be higher than battery voltage for charging to occur.
- Verify solar panel output under current light conditions.
- Load Not Working:
- Check load connections and ensure correct polarity.
- Verify load current does not exceed the controller's rated load current.
- Hlola ivolumu yebhethritage; if it's too low, the load output may be disconnected to protect the battery.
- Incorrect Battery Type Setting:
- Ensure the selected battery type matches your installed battery. Incorrect settings can lead to improper charging and reduced battery life. Refer to Section 5.2 for instructions on setting battery type.
For persistent issues, refer to the detailed troubleshooting guide in the full product manual or contact technical support.
8. Imininingwane
Detailed technical specifications for the EPEVER Tracer3210AN MPPT Solar Charge Controller.
Figure 8.1: Electrical parameters for Tracer 1210AN G3, 2210AN G3, 3210AN G3, and 4210AN G3 models.
| Ipharamitha | Inani |
|---|---|
| Imodeli | Tracer3210AN (G3) |
| Inkokhelo Elinganiselwe/Yokukhipha Okwamanje | 30 Amp |
| Isistimu Yokuzisholo Umqtage | 12V/24V DC Auto Work |
| Ubukhulu. Amandla Wokufaka we-PV | 390W (12V system) / 780W (24V system) |
| Ubukhulu. I-PV Open Circuit Voltage | 100V (at min. operating temp) / 92V (at 25°C) |
| Ibhethri Voltage Ibanga | I-8V ~ 32V |
| I-MPP Voltage Ibanga | V(BAT+2V) ~ 72V |
| Ukugawula | Okuvamile Okubi |
| Tracking Efficiency | ≥99.5% |
| Ubukhulu. Ukuguqulwa Ngempumelelo | 98% |
| I-Working Environment Temperature | -25°C ~ +50°C (-13°F ~ 122°F) |
| Izinga Lokushisa Lesitoreji | -20°C ~ +70°C (-4°F ~ 158°F) |
| Isikhathi se-LCD Backlight | 60S (Okuzenzakalelayo) |
| Izindawo zokulawula | #6 AWG (16mm²) |
| Recommended Wire Cable | #8 AWG (10mm²) |
| Ubukhulu (L×W×H) | 228 × 164 × 55 mm (8.98 × 6.46 × 2.17 amayintshi) |
| Isisindo | 1.26 kg (2.77 lbs) |
| Indawo ebiyelwe | IP30 |
Figure 8.2: Product packaging with dimensions for the Tracer 3210AN.
9. Izesekeli Ongazikhethela
The Tracer3210AN controller can be enhanced with various optional accessories for remote monitoring and advanced parameter configuration.
- Remote Meter (MT50/MT52): Provides a remote display for monitoring system status and modifying parameters.
- WiFi Adapter (EPEVER-WiFi-2.4G-RJ45-D): Enables wireless monitoring and control via a mobile application.
- Bluetooth Adapter (EPEVER-BLE-RJ45-D): Allows Bluetooth connectivity for monitoring and control via a mobile application.
- eLOG01: Data logger for recording system performance.
- USB-RS485 Cable: For connecting the controller to a PC for monitoring and advanced settings using PC software.

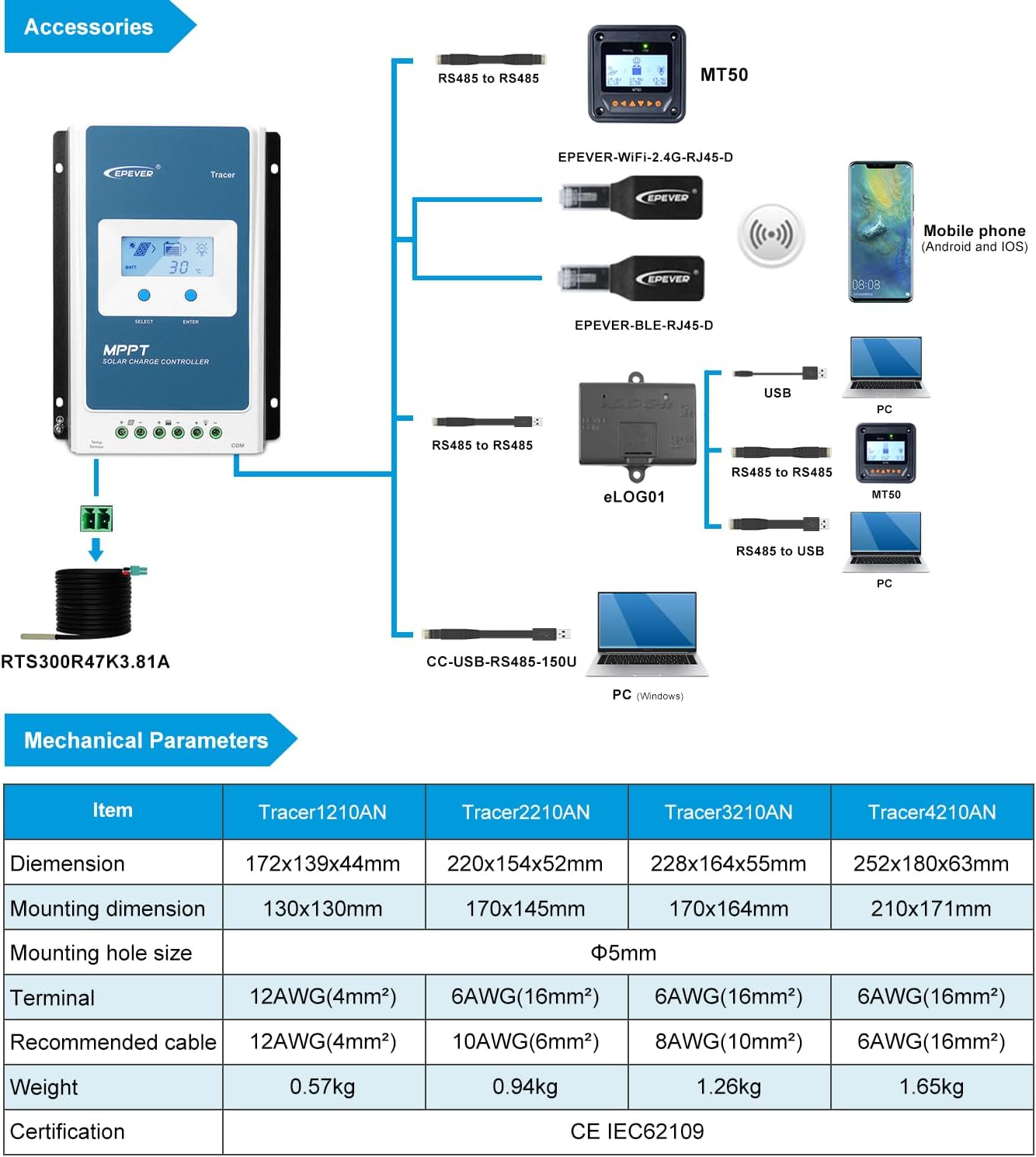

Umdwebo 9.1: Ngaphezuluview of the controller and compatible accessories, including MT50, WiFi, Bluetooth, and PC connection options.
Figure 9.2: Illustration of real-time remote monitoring capabilities using a mobile app via WiFi and a PC cloud platform.
10. Iwaranti kanye Nokusekela
EPEVER products are distributed by authorized sellers. GolandCentury is an official authorized sales agent for the EPEVER brand.
- Ukusekela kwezobuchwepheshe: GolandCentury provides free technical support. They have service centers in Chicago (USA), Munich (Germany), Toronto (Canada), and Melbourne (Australia).
- Ubuqiniso bomkhiqizo: Ensure you purchase from authorized distributors to receive genuine products and valid support.
For specific warranty terms and conditions, please refer to the warranty card included with your product or contact your authorized dealer.
