Amazon Basics Heavy-Duty Tilting TV Wall Mount & High-Speed HDMI Cable User Manual

Isingeniso

This manual provides comprehensive instructions for the safe and proper installation, operation, and maintenance of your Amazon Basics Heavy-Duty Tilting TV Wall Mount and High-Speed HDMI Cable. This wall mount is designed to securely hold flat-panel televisions ranging from 37 inches to 80 inches, with a maximum weight capacity of 120 pounds. The included HDMI cable supports Ethernet, 3D, and 4K video, along with Audio Return Channel (ARC) for versatile connectivity.

Please read this manual thoroughly before beginning installation to ensure correct setup and to prevent damage to the product or injury.

Ulwazi Lokuphepha

ISEXWAYISO: Failure to read and follow all instructions can result in personal injury or property damage. The manufacturer is not responsible for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use.

• Ensure the wall structure can safely support the combined weight of the mount and the television. Consult a qualified professional if unsure.
• Ungadluli umthamo wesisindo esiphezulu samakhilogremu angu-54.4 (120 pounds).
• This mount is intended for use with flat-panel TVs between 37 and 80 inches.
• Always use appropriate safety gear, including eye protection, during installation.
• Verify the location of electrical wires, water pipes, and gas lines behind the wall before drilling.
• Two people are recommended for installation due to the size and weight of TVs.
• Gcina zonke izingxenye ezincane nezinto zokupakisha kude nezingane.

Okuqukethwe Kwephakheji

Carefully unpack the box and ensure all components are present and undamaged. If any parts are missing or damaged, do not attempt to install. Contact customer support for assistance.

• Wall Plate Assembly (1)
• TV Mounting Brackets (2)
• High-Speed HDMI Cable (1)
• Ikhithi Yehadiwe (izikulufo ezahlukahlukene, ama-washer, ama-spacer, ama-anchor)
• Incwadi Yokufundisa (le dokhumenti)

Ukusetha nokufaka

Amathuluzi Ayadingeka (Awafakiwe):

• Isitholi se-stud
• Drill with appropriate drill bits (wood/concrete)
• Level (though one is built into the mount)
• Isikulufili ekhanda sePhillips
• Socket wrench or adjustable wrench
• Ipensela
• Itheyiphu yokulinganisa

Isinyathelo sesi-1: Nquma Indawo Yokukhweza

Choose a location on your wall that is structurally sound and free from electrical wires, water pipes, or gas lines. Use a stud finder to locate wood studs if mounting to drywall, or ensure you have appropriate concrete anchors if mounting to masonry.

Step 2: Mount the Wall Plate

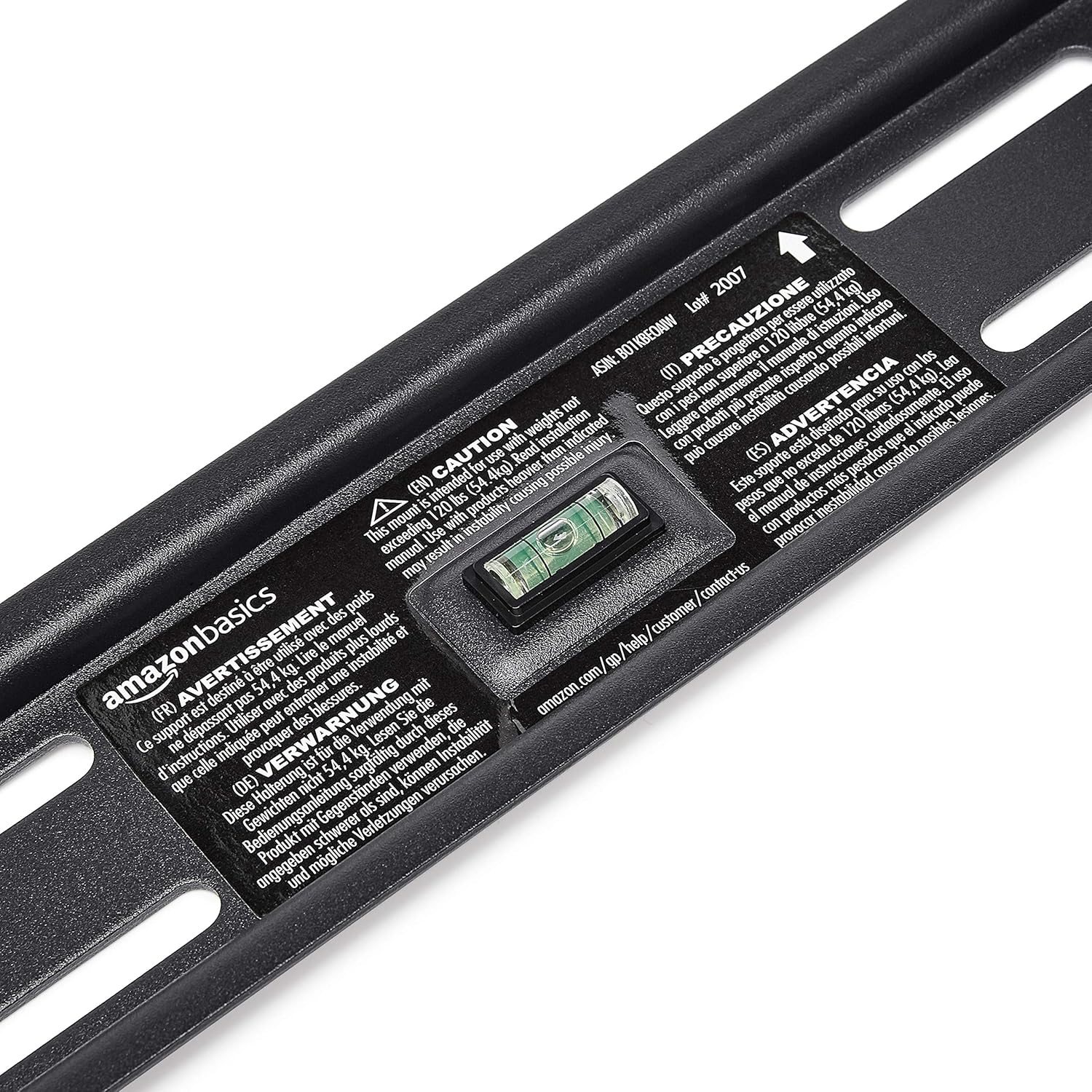

1. Hold the wall plate against the wall at the desired height. Use the built-in level to ensure it is perfectly horizontal.
2. Mark the drilling locations through the holes on the wall plate with a pencil.
3. Drill pilot holes at the marked locations. The size of the drill bit will depend on your wall type and the anchors/lag bolts being used.
4. Secure the wall plate to the wall using the provided lag bolts and washers. Ensure it is firmly attached and level.

Isinyathelo sesi-3: Namathisela Izibakaki Zokukhweza i-TV ku-TV

1. Lay your TV face down on a soft, clean surface to prevent screen damage.
2. Thola izimbobo zokukhweza ze-VESA ngemuva kwe-TV yakho.
3. Khetha izikulufu ezifanele, amawasha, nama-spacers kukhithi yehadiwe elilingana nezimbobo zokukhweza ze-TV yakho.
4. Attach the two vertical TV mounting brackets to the back of your TV, ensuring they are centered and aligned with the VESA pattern. The hooks on the brackets should face upwards.

Isinyathelo 4: Faka i-TV ku-Wall Plate

1. With assistance, carefully lift the TV and hook the brackets onto the top edge of the wall plate.
2. Gently lower the TV until the brackets fully engage with the wall plate. You should hear a click or feel it lock into place.
3. Pull the release strings (if applicable) to ensure the TV is securely latched to the mount. Some models have safety screws to further secure the TV; tighten these if present.

Step 5: Connect HDMI Cable

Connect one end of the included High-Speed HDMI cable to the HDMI output port on your source device (e.g., Blu-ray player, game console, streaming device) and the other end to an HDMI input port on your TV.

Imiyalelo yokusebenza

Tilting the TV:

This wall mount allows for 18 degrees of tilt, ranging from +15 degrees (upward) to -3 degrees (downward), to achieve an optimal viewing angle and reduce glare. To adjust the tilt:

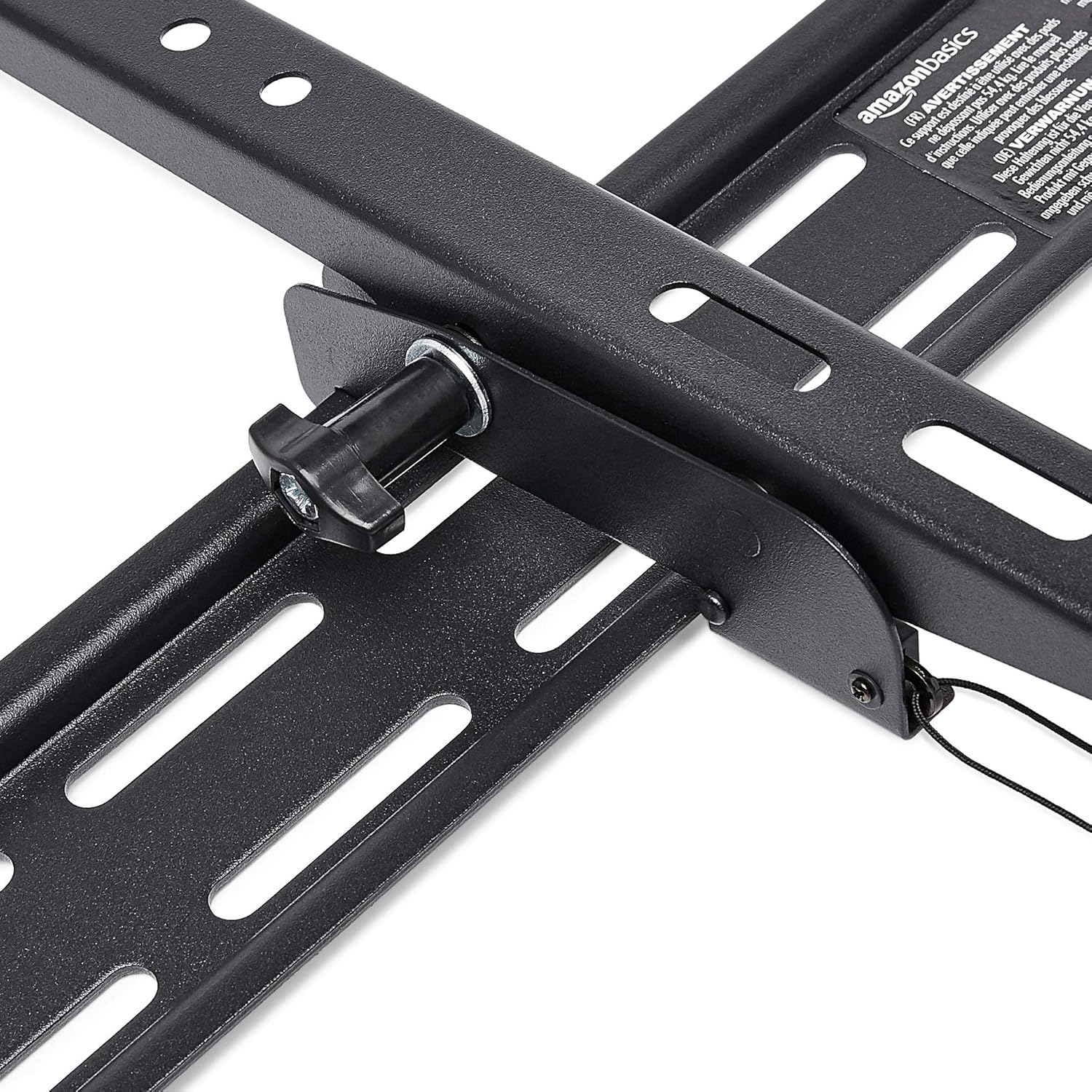

1. Locate the tilt adjustment knobs or levers on the side of the TV mounting brackets.
2. Loosen the knobs or levers to allow the TV to tilt freely.
3. Carefully tilt the TV to your desired angle.
4. Tighten the knobs or levers to secure the TV in place.

Isondlo

• Hlola ngezikhathi zonke zonke izikulufu namabhawudi ukuze uqinisekise ukuthi zihlala ziqinile futhi zivikelekile.
• Clean the mount and HDMI cable with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• Do not hang anything from the mount or TV that exceeds the weight capacity.

Ukuxazulula inkinga

Imininingwane

• Ibhrendi: Amazon Basics
• Imodeli: Heavy-Duty Tilting TV Wall Mount & High-Speed HDMI Cable
• ASIN: B074SVCYZY
• Uhlobo lokukhweza: Tshekisa
• Amasayizi we-TV ahambisanayo: 37 kuya ku-80 amayintshi
• Umthamo Wesisindo Esikhulu: 120 pounds (54.4 kg)
• I-engeli yokutshekisa: +15 to -3 degrees (18 degrees total)
• Ubude bekhebula le-HDMI: 10 Izinyawo
• Izici ze-HDMI: Isekela i-Ethernet, i-3D, ividiyo ye-4K, i-Audio Return Channel (ARC)

Iwaranti kanye Nokusekela

Ukuze uthole ulwazi lwewaranti kanye nokusekelwa kwamakhasimende, sicela ubheke i-Amazon Basics esemthethweni webnoma xhumana nesevisi yamakhasimende e-Amazon ngqo. Gcina irisidi lakho lokuthenga ukuze uthole izimangalo zewaranti.

Webindawo: Isitolo Sezisekelo ze-Amazon
