Haier HRB15N3BGS 15 cu. ft. Bottom Mount Refrigerator User Manual

1. Isingeniso

This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Haier HRB15N3BGS 15 cu. ft. Bottom Mount Refrigerator. Please read this manual thoroughly before using your appliance and retain it for future reference.

2. Umkhiqizo Uphelileview

The Haier HRB15N3BGS refrigerator offers a total capacity of 15.0 cubic feet, featuring a bottom-mount freezer design. It is equipped with modern conveniences to enhance food preservation and user experience.

Izici Eziyinhloko:

• Ukukhanyisa kwe-LED: Bright and energy-efficient illumination for clear visibility of contents.
• Quick Cool and Quick Freeze Functions: Provides a rapid boost of cold air to quickly cool fresh food and freeze items.
• Adjustable Tempered Glass Shelves: Two full-width shelves in the refrigerator compartment for flexible storage.
• Amabhokisi eCrisper: Dedicated storage for fruits and vegetables to maintain freshness.
• Gallon Door Storage: Convenient space for larger beverage containers in the door.
• Reversible Door Hinges: Allows for flexible installation to open from either the left or right side.
• Multi Air Flow System: Ensures even cooling throughout the refrigerator compartment.

Umkhiqizo Views:

Umfanekiso 2.1: Ngaphambili view of the Haier HRB15N3BGS 15 cu. ft. Bottom Mount Refrigerator in Stainless Steel.

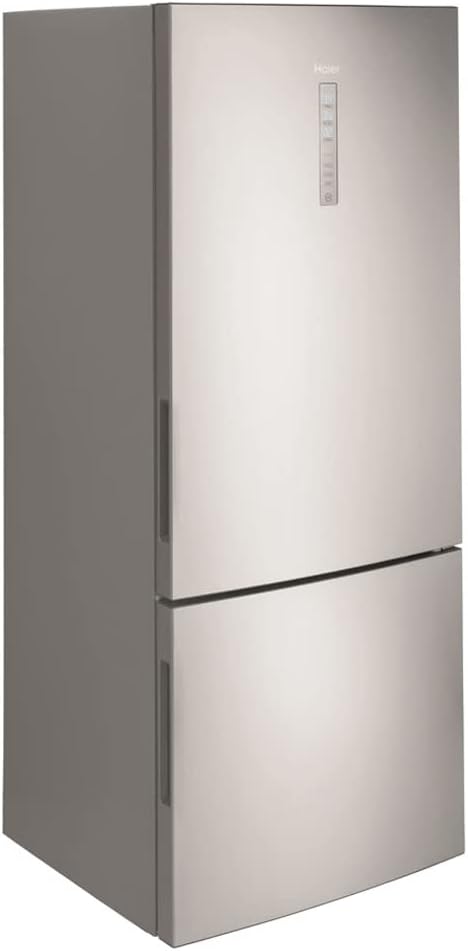

Umfanekiso 2.2: I-engeli view showcasing the sleek design and integrated handles of the refrigerator.

Figure 2.3: Close-up of the digital control panel, displaying temperature settings for the fridge, My Zone, and freezer, along with Quick Cool and Quick Freeze options.

Umfanekiso 2.4: Ingaphakathi view of the refrigerator compartment, demonstrating ample storage space on glass shelves and in door bins, with various food items.

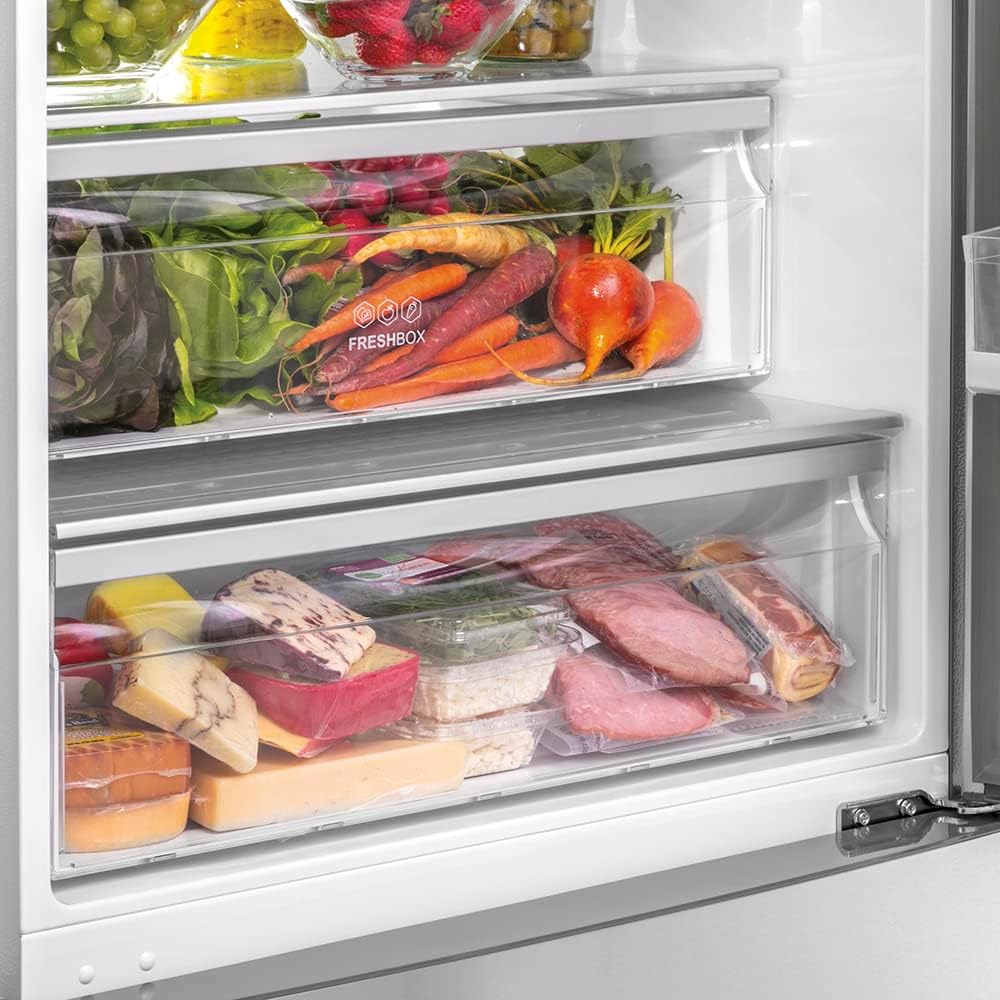

Umfanekiso 2.5: Okuningiliziwe view of the crisper drawer, designed to keep fruits and vegetables fresh.

Figure 2.6: Close-up of the interior LED lighting strip, providing bright and even illumination.

Figure 2.7: Full interior view with both refrigerator and freezer doors open, showcasing organized storage with various food items.

Figure 2.8: Diagram illustrating the key dimensions of the refrigerator: Height 67.9", Width 27.6", Depth 23.6".

3. Ukusetha nokufakwa

3.1 Ukuqaqa

Susa ngokucophelela zonke izinto zokupakisha. Qinisekisa ukuthi azikho izingxenye ezilahlekile noma ezilimele. Gcina izinto zokupakisha zikude nezingane.

3.2 Ukubekwa

• Beka isiqandisi endaweni eqinile, esezingeni.
• Allow adequate space around the unit for proper ventilation (refer to Figure 2.8 for dimensions).
• Gwema ukukhanya kwelanga okuqondile noma imithombo yokushisa.

3.3 Ukuhlehla Komnyango

The refrigerator doors are reversible, allowing them to open from either the left or right side to suit your kitchen layout. Refer to the detailed instructions provided in the separate installation guide for door reversal procedures.

3.4 Ukuxhunywa kukagesi

Connect the refrigerator to a dedicated 120V, 15A grounded electrical outlet. Do not use extension cords or adapter plugs.

3.5 Ukuhlanza Kokuqala

Ngaphambi kokusebenzisa okokuqala, hlanza ingaphakathi nengaphandle lesiqandisi nge-detergent ethambile namanzi afudumele. Sula kahle.

4. Ukusebenza

4.1 Iphaneli yokulawula

The digital control panel (refer to Figure 2.3) is located on the exterior of the refrigerator door and allows for easy temperature adjustments and feature activation. The LED display illuminates when the door is opened or a button is pressed.

4.2 Amasethingi Okushisa

You can adjust the temperature for the refrigerator, My Zone, and freezer compartments independently. Press the respective buttons on the control panel to cycle through available temperature settings. Recommended settings are typically 37-40°F (3-4°C) for the refrigerator and 0°F (-18°C) for the freezer.

4.3 Quick Cool and Quick Freeze Functions

• Ukuphola Okusheshayo: Activates a rapid cooling cycle for the refrigerator compartment, ideal for quickly chilling newly added groceries.
• Ukufriza Okusheshayo: Initiates a rapid freezing cycle for the freezer compartment, useful for fast-freezing fresh items to preserve quality.

To activate these functions, press the corresponding button on the control panel. The function will typically run for a set period or until optimal temperature is reached, then automatically revert to normal operation.

4.4 Izici Zesitoreji

• Amashalofu Alungisekayo: The tempered glass shelves can be repositioned to accommodate items of various heights.
• Amabhokisi eCrisper: Use the crisper bins for optimal storage of fruits and vegetables.
• Ama-Freezer Drwers: The freezer features multiple drawers for organized storage of frozen goods. These drawers can be removed if larger items need to be stored.

5. Isondlo

5.1 Ukuhlanza Ingaphakathi

Regularly clean the interior with a solution of mild soap and warm water. Remove shelves and drawers for thorough cleaning. Rinse and dry all parts completely before returning them to the refrigerator.

5.2 Ukuhlanza Ingaphandle

Wipe the stainless steel exterior with a soft cloth and a stainless steel cleaner or mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the surface. For the door seals, wipe them clean with a damp cloth to ensure a tight seal.

5.3 Ukuqedwa kwamaqhwa

This refrigerator features an Electric Defrost system, which automatically manages frost buildup in the freezer compartment. Manual defrosting is generally not required.

5.4 Amandla Outages

Uma kwenzeka amandla outage, gcina iminyango yesiqandisi ivaliwe ukuze ugcine izinga lokushisa langaphakathi isikhathi eside ngangokunokwenzeka. Gwema ukuvula iminyango kungenasidingo.

6. Ukuxazulula izinkinga

Ngaphambi kokuxhumana nesevisi yamakhasimende, sicela uphindeview izinkinga ezilandelayo ezivamile kanye nezixazululo zazo ezingaba khona:

• Isiqandisi Asipholisi: Check if the power cord is securely plugged in, the circuit breaker has tripped, or the temperature settings are too high. Ensure doors are fully closed.
• Imisindo Engajwayelekile: Some operational noises (e.g., humming, gurgling) are normal. Check if the refrigerator is level or if any items are vibrating against the interior walls.
• Excessive Frost in Freezer: While the unit has electric defrost, ensure the freezer door is sealing properly and not being left open for extended periods.
• Water on Floor: Check if the drain pan is correctly positioned or if the defrost drain is clogged.

Uma inkinga iqhubeka ngemva kokuzama lezi zixazululo, sicela uxhumane nosekelo lwamakhasimende.

7. Imininingwane

8. Iwaranti kanye Nokusekela

8.1 Ulwazi Lwewaranti

This Haier refrigerator comes with a Iwaranti yeminyaka engu-1 ezingxenyeni nasemsebenzini, kanye a 5-year warranty on the sealed system. Sicela ugcine ubufakazi bakho bokuthenga izimangalo zewaranti.

8.2 Ukwesekwa Kwamakhasimende

For technical assistance, service requests, or questions regarding your warranty, please contact Haier customer support. Refer to the official Haier webindawo noma imibhalo yakho yokuthenga ukuze uthole imininingwane yokuxhumana.
