1. Isingeniso
This manual provides instructions for the installation and operation of your GOTHAM 1237924 Rear View Camera Kit. This kit is designed to enhance vehicle safety by providing a clear view of the area behind your vehicle, aiding in parking and reversing maneuvers. It includes a waterproof camera and a 4.2-inch color LCD monitor with an anti-glare visor.
Image 1: The GOTHAM Rear View Camera Kit, showing the product packaging, 4.2-inch LCD monitor, and the compact rear view camera with its wiring.
2. Ulwazi Lokuphepha
Please read all safety instructions before installing and operating this product. Failure to follow these instructions may result in injury or damage to the product or vehicle.
- Ukufakwa Kochwepheshe Kunconyiwe: If you are unsure about any part of the installation process, consult a qualified automotive technician.
- Umthombo wamandla: Connect the system only to a 12V DC power source. Incorrect voltage kungalimaza iyunithi.
- Izintambo: Ensure all wiring is properly insulated and secured to prevent short circuits or interference. Avoid routing cables near hot engine parts or sharp edges.
- Ukubonakala: Ungavimbeli umshayeli view with the monitor. Mount it in a location that is easily visible but does not impede driving.
- Ukumelana Namanzi: The camera is water-resistant, but avoid submerging it or directing high-pressure water jets directly at it.
- Usizo Lokupaka: This system is a parking aid and should not replace careful driving and direct observation. Always check your surroundings manually before reversing.
3. Okuqukethwe Kwephakheji
Qinisekisa ukuthi zonke izingxenye zikhona kuphakheji:
- 4.2-inch Color LCD Monitor with Anti-Glare Visor
- Ngemuva View Ikhamera ene-Mount
- Video Cable (RCA)
- Power Cables for Monitor and Camera
- Incwadi Yokufundisa (le dokhumenti)
Image 2: All components of the GOTHAM Rear View Camera Kit, including the monitor, camera, and various cables, laid out on a white surface.
4. Ukusetha nokufakwa
Follow these steps for proper installation of your GOTHAM Rear View Camera Kit.
Ukufakwa kwekhamera
- Khetha indawo yokukhweza: The camera should be mounted at the rear of the vehicle, typically above the license plate or near the trunk handle, to provide a clear, unobstructed view. Refer to Image 4 for ideal placement suggestions.
- Vikela Ikhamera: Use the provided mount and screws to securely attach the camera to the chosen location. Ensure the camera is angled correctly for optimal viewing.
- Route Camera Cables: Carefully route the camera's video and power cables into the vehicle interior. Ensure cables are protected from moisture, heat, and moving parts.

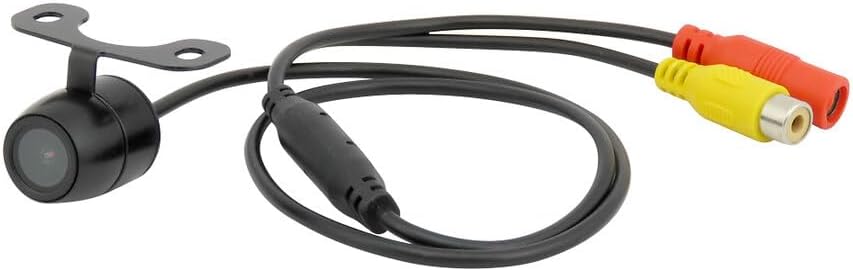

Image 3: The compact GOTHAM rear view camera with its attached RCA video cable (yellow connector) and power cable (red connector).
Image 4: A diagram illustrating recommended external mounting positions for the rear view camera on a vehicle, typically near the license plate or bumper.
4.2. Gada Ukufakwa
- Faka i-Monitor: Place the 4.2-inch LCD monitor on your dashboard or another suitable location that does not obstruct your view of the road. The monitor comes with a stand for easy placement.
- Xhuma Ikhebula Levidiyo: Connect the yellow RCA video cable from the camera to the video input (AV1 or AV2) on the monitor.
- Xhuma Amandla: Connect the monitor's power cable to a 12V DC power source. For automatic activation, connect the camera's power cable to the vehicle's reverse light circuit. Connect the monitor's power cable to a switched 12V source or also to the reverse light circuit if you only want it on when reversing.
Image 5: The GOTHAM 4.2-inch LCD monitor, featuring an anti-glare visor and RCA input connectors for video and power.

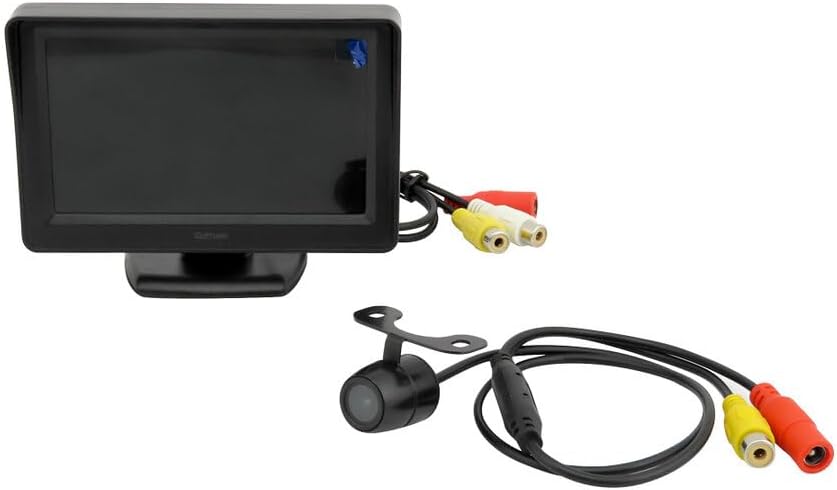

Image 6: The GOTHAM 4.2-inch LCD monitor and the rear view camera, shown together with their respective connection cables.
5. Iziqondiso Zokusebenza
Once installed, the GOTHAM Rear View Camera Kit operates simply:
- Ukwenza kusebenze okuzenzakalelayo: If wired to the reverse light circuit, the monitor will automatically display the camera feed when the vehicle is shifted into reverse gear.
- Imigqa Yokupaka: The camera provides colored parking assistance lines on the screen to help estimate distance and trajectory.
- Gada Isibonisi: The 4.2-inch color LCD provides a wide-angle, high-definition view. The anti-glare visor helps improve visibility in bright conditions.
6. Isondlo
To ensure the longevity and optimal performance of your camera kit:
- Cleaning the Camera Lens: Hlanza njalo ilensi yekhamera nge-d ethambile, ethambileamp cloth to remove dirt, dust, or water spots that may obscure the viewGwema izihlanzi ezikhuhlayo.
- Cleaning the Monitor Screen: Use a soft, lint-free cloth to clean the LCD screen. Do not spray cleaning solutions directly onto the screen.
- Hlola Ukuxhumana: Periodically inspect all cable connections to ensure they are secure and free from corrosion or damage.
- Ukuvikelwa Kwesimo Sezulu: While the camera is water-resistant, extreme weather conditions (e.g., heavy snow, ice) may temporarily affect performance. Clear any obstructions from the lens before use.
7. Ukuxazulula izinkinga
If you encounter issues with your GOTHAM Rear View Camera Kit, refer to the following common problems and solutions:
| Inkinga | Imbangela Engenzeka | Isixazululo |
|---|---|---|
| Asikho isithombe kumonitha | No power to monitor or camera; Loose video cable connection; Faulty camera or monitor. | Check all power connections; Ensure video cable is securely plugged in; Test components if possible. |
| Ikhwalithi yesithombe engeyinhle (efiphele, ephambene) | Dirty camera lens; Loose video connection; Electrical interference. | Clean camera lens; Secure video cable; Reroute cables away from power sources if interference is suspected. |
| Monitor does not turn on automatically | Camera/monitor not wired to reverse light circuit; Faulty reverse light switch. | Verify wiring to reverse lights; Check reverse light functionality. |
8. Imininingwane
Imininingwane yekhamera:
- Inzwa: I-CMOS
- Ukukhanyisa: 0.01 Lux
- Amaphikseli Asebenzayo: 720x576
- Isixazululo: Imigqa ye-TV engu-480
- Viewing engela: 170°
- Image Vision Area: 4.3x3.4mm
- Uhlelo lwevidiyo: I-PAL/NTSC
- Amandla: DC 11-13V
- Isilinganiso se-S/N: > 50 dB
- Okukhipha ividiyo: 1.0Vp-p, 75 Ohms
- Ukumelana Nesimo Sezulu: Water-resistant for all weather conditions
Izicaciso zokuqapha:
- Uhlobo: I-LCD ye-TFT
- Usayizi Wesikrini: 4.2 amayintshi
- Isixazululo: 480(W) RGB x 272(H)
- I-Aspect ratio: 16:9
- Uhlelo lwevidiyo: I-PAL/NTSC
- Ukungena kwevidiyo: 2 AV Inputs
- Ukunikezwa kwamandla kagesi: I-DC 12V
- Ukusetshenziswa: 1.3W
- Shaja Okwamanje: 100 mA
9. Iwaranti & Ukusekela
For warranty information and technical support, please refer to the documentation provided with your purchase or contact GOTHAM customer service. Specific warranty details may vary by region and retailer.
Umkhiqizi: I-Gotham
Inombolo Yemodeli: PARK/LCD-DIS-42+CAM/BK
ASIN: B01BKDA32K
