ViewI-Sonic VG2438SM 24-Inch IPS Monitor Manual yomsebenzisi

1. Isingeniso

I ViewSonic VG2438SM is a 24-inch high-performance multimedia display designed for home and office environments. It features a 16:10 aspect ratio with a 1920x1200 resolution, providing additional vertical viewing space. This monitor includes full ergonomic functionality, ViewMode presets for optimized screen performance, Flicker-Free technology, and a Blue Light Filter to reduce eye strain. SuperClear technology ensures excellent color performance and wide viewing angles. Connectivity options include DisplayPort, DVI, VGA, and a 4-port USB hub. Integrated speakers enhance the multimedia experience, and a VESA-mountable design offers flexible placement.

2. Setha

2.1 Ukuqaqa

Carefully remove the monitor and all accessories from the packaging. Ensure all components listed in the packing list are present. The monitor is lightweight for easy handling.

2.2 Ukuhlanganisa Isitendi

Attach the monitor stand to the display panel. Typically, this involves securing the stand with a single screw. Refer to the diagram below for visual guidance.

Umfanekiso 2.2.1: Ngaphambili view kwe ViewSonic VG2438SM monitor with its stand assembled.

Umfanekiso 2.2.2: Ngemuva view illustrating the stand attachment point and VESA mounting area.

2.3 Izintambo zokuxhuma

Connect the necessary cables to the monitor and your computer. The VG2438SM supports DisplayPort, DVI, and VGA inputs. Also connect the USB upstream cable for the integrated USB hub and the audio cable for the speakers.

• Ikhebula Lamandla: Xhuma ikhebula lamandla kokokufaka kwamandla okuqapha bese uxhume endaweni yamandla.
• Ikhebuli yevidiyo: Khetha okukodwa kokulandelayo:
  • DisplayPort cable for optimal digital video and audio transmission.
  • DVI cable for digital video transmission.
  • VGA cable for analog video transmission.
• Ikhebula Eliphezulu Le-USB: Connect the USB upstream cable from the monitor to your computer to enable the 4-port USB hub.
• Ikhebula Lomsindo: Connect the audio cable from your computer's audio output to the monitor's audio input to use the integrated speakers.

Umfanekiso 2.3.1: Okuningiliziwe view of the monitor's connectivity ports, including DisplayPort, DVI, VGA, USB, and audio inputs.

2.4 Ukuvula Amandla Okuqala

Press the power button on the monitor. The monitor should power on and display an image from your connected computer. If no image appears, ensure all cables are securely connected and the correct input source is selected on the monitor.

3. Ukusebenza

3.1 Izilawuli Zokuqapha

The monitor's control buttons are located on the lower right-hand corner of the frame. Due to their subtle design, they may be difficult to see in low light. Use a flashlight if necessary to locate them. Once identified, these buttons allow access to the On-Screen Display (OSD) menu for various settings adjustments.

3.2 Ukulungiswa Kwesimo Sengqondo

The VG2438SM offers advanced ergonomic features for user comfort and productivity. Adjust the monitor to your preferred viewindawo yokubeka:

• Ukulungiswa kobude: Raise or lower the monitor to eye level (up to 100mm).
• Ukutsheka: Adjust the screen angle from -5 to 37 degrees to minimize glare and optimize viewing.
• I-Swivel: Rotate the monitor horizontally up to 360 degrees.
• I-Pivot: Zungezisa isikrini ngamadigri angama-90 ngemodi yokuma ngobude viewing. Note that the monitor may need to be tilted slightly to clear the stand during rotation.

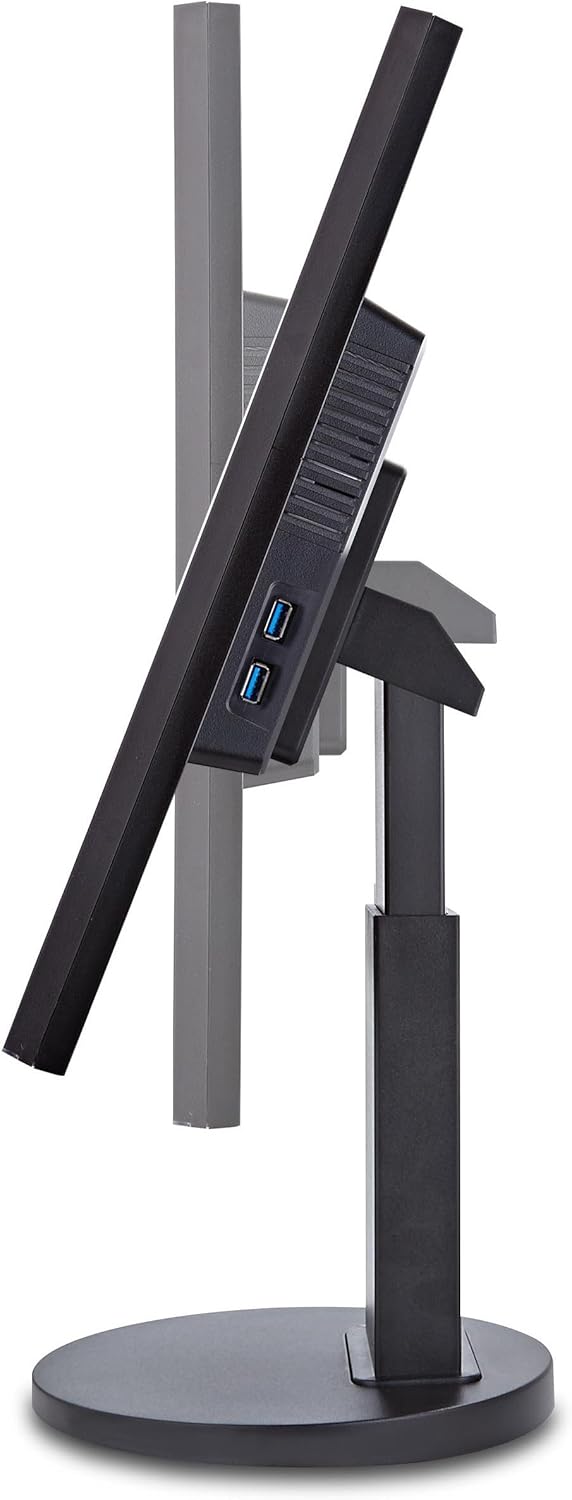

Figure 3.2.1: Monitor demonstrating height adjustment capability.

Figure 3.2.2: Monitor in portrait mode, illustrating the pivot function.

3.3 ViewIzilungiselelo zemodi

Ukuqapha kuhlanganisa ViewI-Sonic ekhethekile ViewMode feature, offering five intuitive scenario presets for optimized screen performance. Access these presets through the OSD menu:

• Umdlalo: Optimized for gaming visuals.
• Ifilimu: Enhanced for video playback.
• Web: Kufanelekela okujwayelekile web ukuphequlula.
• Umbhalo: Reduces eye strain for reading documents.
• I-Mono: Displays content in monochrome.

These presets adjust gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different applications.

3.4 ViewSplit Software

ViewI-Sonic ekhethekile ViewSplit software allows you to create an ideal and customized working environment by dividing your screen into multiple viewing windows. This enhances productivity and multitasking.

3.4.1 Ukufakwa

Landa ifayela le- ViewSplit software from the ViewSonic website. It can be found on the ViewSplit product page or within the Driver & Software section of any product page.

3.4.2 Ukusetshenziswa

1. Chofoza kabili i- ViewSplit icon on your desktop or click the notification tray icon to open the ViewSplit homepage.
2. Select a predefined template from the available options. This template will be applied to your main display.
3. To place an application into a split window, drag the application window into the desired ViewSplit window. The target window will highlight in blue.
4. Release the application, and it will automatically position and resize within the selected split window.
5. To create a customizable template, click the tool icon in the "Customizable Templates" section.
6. Select a predefined template to use as a base. You can then customize the template by dragging and resizing the red borders of the split windows.
7. Click the save icon to save your customized template. Up to six different templates can be saved for maximum flexibility.

3.5 Izipikha Ezididiyelwe

I ViewSonic VG2438SM includes two integrated 2W stereo speakers. Connect an audio cable from your computer to the monitor's audio input to utilize these speakers for multimedia playback. While suitable for general use, external speakers may offer superior audio quality for critical listening.

3.6 Ihabhu le-USB

The monitor features an integrated 4-port USB hub. Connect the USB upstream cable from the monitor to your computer to activate these ports. This allows for convenient connection of peripherals and accessories directly to the monitor.

3.7 Eco-Mode

ViewSonic's proprietary Eco-mode is an energy-saving feature that helps reduce power consumption. It offers "Optimize (85%)" or "Conserve (65%)" settings, which can be accessed through the OSD menu. Eco-mode adjusts brightness in low ambient light, improving visibility and reducing eye fatigue, while also extending the lifespan of the LED backlighting.

3.8 Blue Light Filter

Ukuthuthukisa viewing comfort during extended periods, the VG2438SM includes a Blue Light Filter setting. This feature allows users to adjust the amount of blue light emitted from the screen, which can help reduce eye discomfort.

4. Isondlo

Ukuqinisekisa ukuphila isikhathi eside nokusebenza kahle kwakho ViewSonic VG2438SM monitor, follow these general maintenance guidelines:

• Ukuhlanza isikrini: Sula kahle isikrini ngendwangu ethambile, engenantambo. Ukuze uthole amamaki anenkani, kancane dampzu indwangu enamanzi noma isisombululo sokuhlanza esiqondene nesikrini. Gwema ukusebenzisa amakhemikhali anokhahlo noma izinto ezilumayo.
• Ukuhlanza i-Casing: Sebenzisa indwangu ethambile, eyomile ukuhlanza i-monitor's casing.
• Ukungenisa umoya: Qinisekisa ukuthi izimbobo zokungena komoya eziqaphayo azivinjiwe ukuvikela ukushisa ngokweqile.
• Vala Lapho Ingasetshenziswa: Vala imonitha uma ingasetshenziswa isikhathi eside ukuze wonge amandla futhi welule ubude bayo bempilo.
• Gwema Izimo Ezidlulele: Do not expose the monitor to extreme temperatures, humidity, or direct sunlight.

5. Ukuxazulula izinkinga

Lesi sigaba sikhuluma ngezinkinga ezivamile ongase ubhekane nazo ngempilo yakho ViewSonic VG2438SM monitor.

5.1 No Image or Dim Screen

• Hlola Amandla: Qinisekisa ukuthi ikhebuli yamandla ixhunywe ngokuvikelekile kukho kokubili isiqapha kanye nendawo yokukhipha amandla.
• Hlola Amakhebula Evidiyo: Verify that the video cable (DisplayPort, DVI, or VGA) is firmly connected to both the monitor and your computer.
• Khetha Okokufaka Okulungile: Use the monitor's OSD menu to ensure the correct input source is selected (e.g., DisplayPort, DVI, VGA).
• Inkinga yokufiphaza: If the screen becomes dim after going to sleep or upon booting, try adjusting the monitor settings to "native" mode or ensure the monitor does not go to sleep. As a workaround, power off the monitor when turning off the PC.

5.2 Isikrini Esicwebezelayo

• Hlola ukuxhumeka kwekhebula: Ensure all video cables are securely connected. A loose connection can cause flickering.
• Adjust Refresh Rate: Verify that your computer's display settings are configured to the recommended refresh rate for the monitor (e.g., 60Hz).
• Buyekeza Abashayeli Bezithombe: Qinisekisa ukuthi abashayeli bamakhadi ehluzo ekhompyutha yakho babuyekeziwe.
• Hlola ngenye Idivayisi: Connect the monitor to a different computer or video source to determine if the issue is with the monitor or the source device.

5.3 Dead Pixels

While rare, dead pixels can occur. If you notice any pixels that are permanently off or stuck on a single color, refer to ViewSonic's pixel policy for warranty information. Dead pixels are typically more noticeable against a solid background.

5.4 Poor Sound Quality from Integrated Speakers

• Check Audio Cable: Ensure the audio cable is properly connected from your computer to the monitor.
• Lungisa Ivolumu: Increase the volume on both your computer and the monitor.
• Speaker Limitations: The integrated 2W stereo speakers are designed for basic audio. For higher fidelity sound, consider using external speakers or headphones.

5.5 Difficulty Locating Control Buttons

The monitor's control buttons are subtly integrated into the bezel. If you have trouble finding them, use a flashlight to illuminate the lower right-hand corner of the monitor frame. Familiarize yourself with their positions for easier access.

5.6 Humming/Buzzing Noise

If a slight humming or buzzing noise is heard, particularly after the monitor has been off for some time, it may be related to internal components. If this is bothersome, consider completely cutting power to the monitor (e.g., via a power strip switch) when it is not in use.

6. Imininingwane

7. Iwaranti & Ukusekela

7.1 Isiqinisekiso Esinomkhawulo

I ViewSonic VG2438SM monitor includes ViewSonic's industry-leading pixel policy and a 3-year limited warranty. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the official warranty documentation included with your product or visit the ViewSonic webindawo.

7.2 Ukwesekwa Kwamakhasimende

For further assistance, technical support, or to learn more about ViewSonic products, please visit the official ViewSonic webindawo:

www.viewsonic.com
