Isingeniso
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Haier HUF168PB Full-Size Frost-Free Freezer. Please read this manual thoroughly before using your appliance to ensure safe and efficient operation. Keep this manual for future reference.

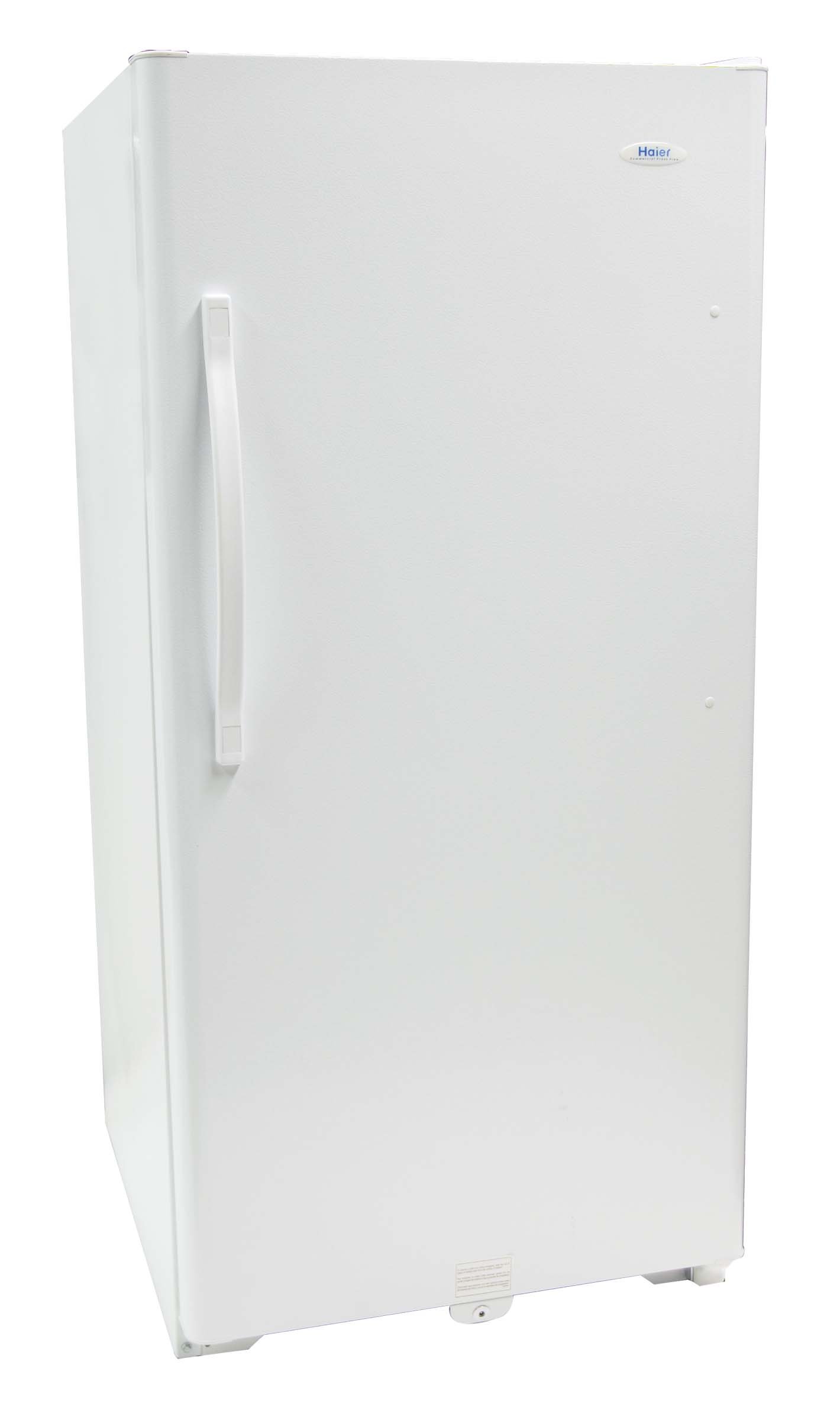

Isithombe: Ingaphandle view of the Haier HUF168PB Full-Size Frost-Free Freezer. This image shows the appliance's overall design, including the door handle and white finish.
Ulwazi Lokuphepha Olubalulekile
Ukuze unciphise ingozi yomlilo, ukushaqeka kukagesi, noma ukulimala uma usebenzisa ifriji yakho, landela lezi zinyathelo eziyisisekelo zokuqapha:
- Funda yonke imiyalelo ngaphambi kokusebenzisa umshini.
- INGOZI: Ingozi yokuboshwa kwengane. Ngaphambi kokuba ulahle isiqandisi sakho esidala noma isiqandisi, susa iminyango. Shiya amashalofu endaweni ukuze izingane zingagibeli kalula ngaphakathi.
- Ungagcini noma usebenzise uphethiloli noma omunye umhwamuko ovuthayo noketshezi eduze kwalesi noma esinye isisetshenziswa.
- Xhuma ezitolo ezisekelwe kahle kuphela.
- Do not repair or replace any part of the freezer or attempt any servicing unless specifically recommended in this manual.
- Unplug the freezer before cleaning or making repairs.
- Qinisekisa ukuthi kungena umoya ofanele eduze komshini.
Ukusetha nokufaka
Ukuqaqa
Remove all packaging materials, including foam and adhesive tape. Inspect the freezer for any damage during transit. Keep packaging materials out of reach of children.
Indawo kanye nokuleveli
Place the freezer on a strong, level floor. Ensure there is adequate space around the freezer for proper air circulation (at least 4 inches on sides and back, 12 inches at the top). Avoid direct sunlight or heat sources. The freezer is equipped with casters for easier movement; ensure they are locked or the unit is stable once positioned. Level the freezer by adjusting the leveling legs if necessary to prevent vibrations and ensure proper door sealing.
Ukuxhumana Ngogesi
Connect the freezer to a dedicated, grounded 115V, 60Hz AC outlet. Do not use extension cords or adapter plugs. Ensure the electrical circuit is protected with a fuse or circuit breaker.
Ukuguqulwa Komnyango
The freezer door is reversible, allowing the hinge to be attached on either the left or right side. Refer to the detailed instructions in the separate door reversal guide (if provided) or contact customer support for assistance. This feature provides flexibility for placement in various spaces.
Imiyalelo yokusebenza
Isinyathelo sokuqala
After plugging in the freezer, allow it to operate empty for 2-3 hours to reach its operating temperature before loading food. The interior light will illuminate when the door is opened.
Ukulawula izinga lokushisa
The freezer features an adjustable thermostat control. Locate the thermostat dial, typically inside the freezer compartment. Turn the dial to adjust the temperature setting. A mid-range setting is usually sufficient for most freezing needs. Allow several hours for the temperature to stabilize after making adjustments.
Ilayisha Isiqandisi
The freezer has a capacity of 16.8 cubic feet, capable of storing approximately 588 lbs. of frozen food. Utilize the 5 door shelves, 3 full-width wire shelves, and 1 slide-out storage basket for organized storage. Distribute food evenly to allow for proper air circulation.
Isithombe: Ingaphakathi view of the Haier HUF168PB freezer, showing various food items stored on the door shelves, wire shelves, and in the slide-out basket. This illustrates the internal storage configuration.
Security Lock and Key
Your freezer is equipped with a security lock and key. Use this feature to secure the contents of your freezer. Keep the key in a safe place, out of reach of children.
Ukusebenza Kwamahhala
This freezer is designed with a frost-free system, which automatically prevents ice buildup. Manual defrosting is not required under normal operating conditions.
Ukunakekela Nokunakekela
Ukuhlanza Ingaphakathi
Unplug the freezer before cleaning. Wash the interior surfaces with a solution of two tablespoons of baking soda to one quart of warm water. Rinse and dry thoroughly. Do not use abrasive cleaners or harsh detergents.
Ukuhlanza Ingaphandle
Clean the exterior with a mild detergent and warm water. Wipe dry with a soft cloth. For stainless steel models (if applicable), use a stainless steel cleaner. The freezer features a "Never-Clean Condenser," meaning the condenser coils do not require regular cleaning under normal household use.
Amandla Outage
Uma kwenzeka amandla outage, keep the freezer door closed to maintain the internal temperature for as long as possible. Avoid opening the door unnecessarily. If the outage isikhathi eside, cabanga ngokudlulisela ukudla kwesinye isiqandisi noma ukudla izinto ezibolayo.
Ukunakekelwa Kweholide
For short vacations, leave the freezer operating. For long vacations, remove all food, unplug the freezer, clean it, and leave the door ajar to prevent odors and mold growth.
Umhlahlandlela wokuxazulula izinkinga
| Inkinga | Imbangela Engenzeka | Isixazululo |
|---|---|---|
| Isiqandisi asisebenzi. | Ayixhunyiwe; i-circuit breaker ikhubeke; amandla awutage. | Ensure plug is secure; reset circuit breaker; check household power supply. |
| Izinga lokushisa alibanda ngokwanele. | Thermostat set too warm; door opened too frequently; large amount of warm food added; poor ventilation. | Adjust thermostat to a colder setting; minimize door openings; allow time for new food to freeze; ensure adequate clearance around freezer. |
| Umsindo owedlulele. | Isiqandisi asilingani; izinto ziyadlidliza efrijini; imisindo yokusebenza evamile. | Level the freezer; ensure nothing is touching the back or sides; gurgling or humming sounds are normal. |
| Umnyango awuvaleki ngokuphelele. | Food packages obstructing; gasket dirty or damaged; freezer not level. | Rearrange food; clean or replace gasket; level the freezer. |
If the problem persists after checking these solutions, contact qualified service personnel.
Imininingwane Yomkhiqizo
- Imodeli: HUF168PB
- Ibhrendi: Haier
- Amandla: 16.8 Cubic Feet
- Approximate Food Storage: 588 lbs.
- Uhlobo lwe-Defrost: Automatic (Frost-Free)
- Uhlobo Lokufaka: I-Freestanding
- Umbala: Emhlophe
- Isisindo Sento: 194 amakhilogremu
- Ubukhulu bomkhiqizo (W x D x H): 31.31 x 33.31 x 62.81 amayintshi (79.5 x 84.6 x 159.5 cm)
- Uhlobo Lwezinto: Insimbi
- Amashalofu: 3 Full-Width Wire Shelves
- Isitoreji Somnyango: 5 Amashalofu Eminyango
- Additional Storage: 1 Slide-Out Storage Basket
- Izici: Interior Light, Security Lock and Key, Adjustable Thermostat Control, Reversible Door, Casters Included, Never-Clean Condenser, UL Commercial Rated.
Iwaranti kanye Nokwesekwa Kwekhasimende
Ulwazi Lwewaranti
This product comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
Ukwesekwa Kwamakhasimende
For technical assistance, service inquiries, or to order replacement parts, please contact Haier customer support. Contact information can typically be found on the manufacturer's website or in your warranty documentation. When contacting support, please have your model number (HUF168PB) and serial number ready.
