1. Isingeniso
This manual provides comprehensive instructions for the operation and maintenance of your Philips BDP5010/F7 Blu-ray Disc Player. Please read this manual thoroughly before using the device to ensure proper setup and functionality. Retain this manual for future reference.
2. Ulwazi Lokuphepha
Qaphela izinyathelo zokuphepha ezilandelayo ukuvimbela ukushaqeka kukagesi, umlilo, noma umonakalo kuyunithi:
- Ungayibeki iyunithi emvuleni noma emswakameni.
- Ungavimbeli ukuvuleka komoya.
- Ensure proper grounding for the power supply.
- Ungavuli i-casing; dlulisela zonke izinsiza kubasebenzi abaqeqeshiwe.
- Gwema ukubeka iyunithi eduze kwemithombo yokushisa noma elangeni eliqondile.
- Nqamula intambo kagesi ngesikhathi seziphepho zombani noma uma ingasetshenziswa isikhathi eside.
3. Okuqukethwe Kwephakheji
Qinisekisa ukuthi iphakheji yakho iqukethe izinto ezilandelayo:
- Philips BDP5010/F7 Blu-ray Disc Player
- Isilawuli kude (namabhethri)
- Intambo Yamandla
- Ikhebula le-HDMI
- Incwadi Yomsebenzisi (le dokhumenti)
4. Umkhiqizo Uphelileview
4.1 Iphaneli langaphambili

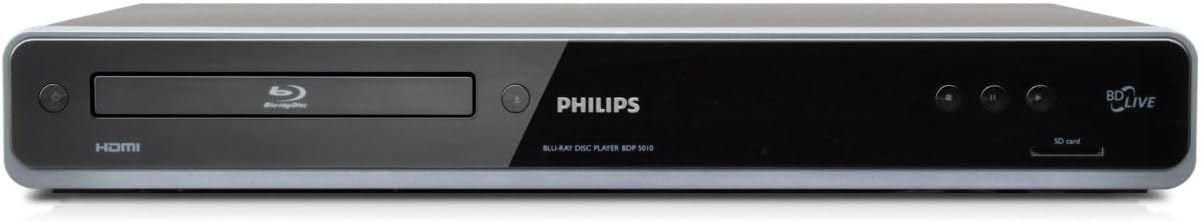

Umfanekiso 1: Ngaphambili view of the Philips BDP5010/F7 Blu-ray Disc Player. The front panel features a disc tray on the left, an eject button, the Philips logo, and control buttons for playback (play, pause, stop) on the right. An HDMI logo is visible on the bottom left, and an SD card slot is on the bottom right.
The front panel provides access to essential controls and media slots:
- Ithreyi yediski: For inserting Blu-ray Discs, DVDs, and CDs.
- Khipha Inkinobho: Ivula futhi ivale ithreyi yediski.
- Inkinobho yamandla: Ivula noma ivale isidlali.
- Izilawuli zokudlala: Buttons for Play/Pause and Stop functions.
- Isikhala Sekhadi le-SD: For inserting an SD card, often used for BD-Live content storage.
- Iphaneli yokubonisa: Shows status information (e.g., playback time, disc type).
4.2 Rear Panel (Typical Connections)
The rear panel houses various connection ports for integrating the player into your home theater system. While an image is not provided, typical connections include:
- Okukhiphayo kwe-HDMI: For high-definition video and audio connection to a TV or receiver.
- Component Video Output (YPbPr): For analog high-definition video connection.
- Okukhiphayo Kwevidiyo Ehlanganisiwe: For standard-definition analog video connection.
- Digital Audio Output (Coaxial/Optical): For connecting to an audio receiver for surround sound.
- Analog Audio Output (RCA L/R): For stereo audio connection.
- Imbobo ye-Ethernet: For network connection to access BD-Live content and firmware updates.
- Okokufaka kwamandla: Okokuxhuma intambo yamandla.
5. Setha
5.1 Connecting to Your TV and Audio System
- Uxhumano lwe-HDMI (Kunconyiwe):
Connect one end of an HDMI cable to the HDMI OUT port on the Blu-ray player and the other end to an HDMI IN port on your TV or AV receiver. This single cable transmits both high-definition video and multi-channel audio.
- Component Video Connection (Alternative Video):
If your TV does not have an HDMI input, connect component video cables (red, green, blue) from the player's YPbPr OUT to the corresponding inputs on your TV. You will also need separate audio cables.
- Digital Audio Connection (for Surround Sound):
For surround sound, connect a digital coaxial or optical cable from the player's DIGITAL AUDIO OUT to the corresponding input on your AV receiver.
- Analog Audio Connection (Stereo):
Connect RCA L/R audio cables from the player's AUDIO OUT to the stereo audio inputs on your TV or receiver for basic stereo sound.
- Network Connection (for BD-Live):
Connect an Ethernet cable from the player's LAN port to your home network router or modem to access online BD-Live content and firmware updates.
- Ukuxhuma kwamandla:
Connect the power cord to the player's power input and then to a wall outlet.
5.2 Iseluleki Sokuqala Sokusetha
Upon first power-on, the player will guide you through an initial setup wizard. Follow the on-screen instructions to configure settings such as:
- Ulimi: Select your preferred language for the on-screen menus.
- Okukhipha ividiyo: Confirm the resolution (e.g., 1080p) and aspect ratio.
- Okukhipha Umsindo: Configure audio settings based on your connected audio system (e.g., PCM, Bitstream).
- Izilungiselelo Zenethiwekhi: If connected via Ethernet, the player may attempt to automatically configure network settings.
6. Iziqondiso Zokusebenza
6.1 I-Basic Disc Playback
- Power on the Blu-ray player and your TV. Select the correct input source on your TV.
- Cindezela inkinobho Khipha inkinobho kuphaneli engaphambili noma kusilawuli kude ukuze uvule ithreyi yediski.
- Place a Blu-ray Disc, DVD, or CD onto the disc tray with the label side facing up.
- Cindezela inkinobho Khipha button again to close the disc tray. The player will begin loading the disc.
- Playback should start automatically or present a disc menu. Use the remote control to navigate menus and select content.
- Sebenzisa i- Dlala/Misa kancane futhi Ima izinkinobho zokulawula ukudlala.
6.2 Izici Ezithuthukile
- I-BD-Live (Profile 2.0): Connect the player to the internet via the Ethernet port and insert an SD card into the front slot to access online bonus content, such as trailers, games, and interactive features, provided by the disc publisher.
- Umbala Ojulile: This feature enhances the color depth, displaying over a billion colors for more vivid and realistic images when connected to a compatible TV via HDMI.
- 1080p at 24 fps: The player supports outputting video at 1080p resolution and 24 frames per second, matching the original film frame rate for a cinema-like viewisipiliyoni.
- I-EasyLink (HDMI CEC): If your TV and other connected devices support HDMI CEC (Consumer Electronics Control), you can control multiple devices with a single remote control. Refer to your TV's manual for EasyLink setup.
- DivX Playback: The player supports DivX video format playback from compatible discs.
- Ukukhushulwa kweDVD: Standard DVDs will be upscaled to 1080p resolution when connected via HDMI, improving picture quality on high-definition displays.
7. Isondlo
7.1 Ukuhlanza
- Ingaphandle: Wipe the player's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Amadiski: Handle discs by their edges. Clean discs with a soft, lint-free cloth, wiping from the center outwards.
7.2 Ukuvuselelwa kweFirmware
Periodically check the Philips support website for firmware updates. Firmware updates can improve performance, add new features, and resolve compatibility issues. Follow the instructions provided on the website carefully when performing an update, typically involving downloading the firmware to a USB drive or SD card and installing it via the player's menu.
8. Ukuxazulula izinkinga
Before contacting support, try the following solutions for common issues:
| Inkinga | Imbangela Engenzeka | Isixazululo |
|---|---|---|
| Umdlali akakhanyisi. | Intambo yamandla ayixhumekile kahle. | Ensure the power cord is securely plugged into the player and a working wall outlet. |
| Asikho isithombe noma umsindo. | Incorrect input selected on TV/receiver; loose cables. | Select the correct HDMI/AV input on your TV. Check all video and audio cable connections. |
| Disc loading is slow. | Normal for some Blu-ray Discs; disc may be dirty/scratched. | Allow time for the disc to load. Clean the disc. Ensure the latest firmware is installed. |
| "Disc Error" or "Unsupported Disc" message. | Disc is dirty, scratched, or incompatible format. | Clean the disc. Try a different disc. Ensure the disc format is supported (Blu-ray, DVD, CD, DivX). |
| Disc tray does not open/close. | Obstruction in the tray mechanism. | Check for any physical obstructions. Power cycle the player (unplug and replug). |
| No sound on certain Blu-ray Discs. | Audio settings incorrect; firmware outdated. | Check audio output settings in the player's menu. Ensure the player has the latest firmware update. |
9. Imininingwane
| Isici | Imininingwane |
|---|---|
| Ibhrendi | Philips |
| Inombolo Yemodeli | BDP5010/F7 |
| Uhlobo Lwemidiya | I-Blu-Ray Disc, CD, DVD |
| Isixazululo | 1920x1080 (I-HD ephelele engu-1080p) |
| Izici ezikhethekile | Blu-Ray Disc Playback, Deep Color, 1080p at 24 fps, DivX playback, DVD Upscaling, BD-Live (Profile 2.0), EasyLink (HDMI CEC) |
| Ubuchwepheshe bokuxhumana | I-HDMI, i-Ethernet |
| Uhlobo Lwesixhumi | HDMI, Component Video, Composite Video, Digital Audio (Coaxial/Optical), Analog Audio (RCA L/R), Ethernet |
| Imodi Yokukhipha Umsindo | Zungeza |
| Okokufaka Ukuhambisana Kwevidiyo | I-NTSC |
| Ubukhulu bomkhiqizo | 17 x 21 x 7 amayintshi |
| Isisindo sento | 0.01 ounces (Note: This weight seems unusually low and might be a data entry error. Refer to product packaging for accurate weight.) |
| I-UPC | 609585165700 |
| Kuqinisekiswe i-Energy Star | Yebo |
10. Iwaranti kanye Nokusekela
Ulwazi Lwesiqinisekiso: This Philips product is typically covered by a limited manufacturer's warranty, usually for one year from the date of purchase. The warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. Specific warranty terms and conditions may vary by region.
Ukwesekwa Kwamakhasimende: For technical assistance, troubleshooting beyond this manual, or warranty service, please visit the official Philips support website or contact their customer service department. Contact information can usually be found on the Philips webindawo noma emaphaketheni omkhiqizo.
