Thank you for choosing the Kviflon Model 8505 Ceiling Fan. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before installation and keep it for future reference.
The Kviflon Model 8505 is a 132cm (52-inch) ceiling fan designed for comfort and efficiency. It features a silent DC motor, reversible blades for year-round use, and an integrated dimmable LED light, all controllable via a convenient remote.
Imiyalelo Ebalulekile Yezokuphepha
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these instructions.
- Funda yonke imiyalelo kanye nolwazi lokuphepha ngaphambi kokufaka ifeni yakho entsha. Review the accompanying diagrams carefully.
- All electrical connections must be made by a qualified electrician and conform to local codes, ordinances, and national electrical codes.
- Ensure the installation site allows the fan blades to rotate without obstruction and provides a minimum clearance of 2.3 meters (7.5 feet) from the floor to the blade trailing edge.
- The mounting structure must be capable of supporting the fan's weight (approximately 4.88 kg or 10.76 lbs).
- Before installation or servicing, disconnect power by turning off the circuit breaker at the main fuse box.
- Ungayisebenzisi ifeni enama-blade alimele noma yiziphi iziphambeko ezibonakalayo.
- Gwema ukubeka izinto endleleni yama-fan blades.
- Lo mshini awuhloselwe ukusetshenziswa abantu (okuhlanganisa nezingane) abanekhono elincishisiwe lomzimba, lezinzwa noma lengqondo, noma abangenalo ulwazi nolwazi, ngaphandle uma benikezwe ukugadwa noma umyalelo ophathelene nokusetshenziswa kwento esebenza ngumuntu onesibopho sokuphepha kwabo.
Ukusetha nokufaka
The Kviflon Model 8505 ceiling fan requires assembly and flush mounting. Ensure you have all components before beginning installation.
Okuqukethwe Kwephakheji
Verify that all parts are present:
- Motor housing assembly
- Fan blades (5 pieces)
- Abakaki be-blade
- Ukubeka phezulu ubakaki
- I-Canopy
- Light kit with LED module
- Isilawuli kude ngokukhweza odongeni
- Hardware pack (screws, washers, wire nuts)
- Incwadi yeziqondiso
Izinketho zokukhweza
This fan is designed for flush mount installation, ideal for low ceilings to ensure ampindlu enkulu.
Image: Illustration of the low-profile flush mount design, highlighting its suitability for various room decors and ceiling heights. The image also shows the integrated LED lighting and dual-style reversible blades.
Image: Diagram illustrating the flush mount installation type, contrasting it with an angle mount (which is not supported). This confirms the fan's design for direct ceiling attachment.
Izinyathelo Zokufaka
- Vala Amandla: Before starting, ensure the power supply to the installation area is completely off at the circuit breaker.
- Faka Ubakaki Wokukhweza: Vikela ubakaki okhwezwayo ebhokisini le-junction yesilingi. Qinisekisa ukuthi ibhokisi lokuhlangana liboshwe ngokuvikelekile esakhiweni sebhilidi futhi lingasekela isisindo sefeni.
- Hlanganisa ama-Fan Blades: Attach the five fan blades to the motor housing using the provided screws. Note that the blades are dual-style reversible, offering two aesthetic finishes (e.g., white and wood-grain) to match your decor.
- Uxhumano Lwezintambo: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full manual. This fan operates on 230 Volts. Ensure all connections are secure with wire nuts.
- Attach Motor Housing: Carefully lift the motor housing and attach it to the mounting bracket. Secure it with the canopy screws.
- Faka Ikhithi Yokukhanya: Connect the light kit wiring to the fan's light kit wires. Secure the LED light kit to the bottom of the motor housing.
- Ukuhlolwa kokugcina: Double-check all connections and ensure no wires are pinched. Restore power and test the fan and light functions with the remote control.
Imiyalelo yokusebenza
Your Kviflon Model 8505 ceiling fan is controlled by a dedicated remote control, offering various functions for optimal comfort.
Imisebenzi yesilawuli kude
- Umlandeli VULIWE/UVALIWE: Cindezela inkinobho yesifeni ukuze uvule noma uvale ifeni.
- Ukulawula isivinini sabalandeli: Adjust between 1 to 6 wind speeds to suit your preference.
- Ukukhanya KUVULIWE/KUVALIWE: Cindezela inkinobho yokukhanya ukuze uvule noma uvale isibani se-LED esihlanganisiwe.
- Ukukhanya Okukhanyayo: Hold the light button to adjust the brightness of the LED light (dimmable from 10% to 100%).
- Ukulungiswa Kwezinga lokushisa Lombala: Cycle through 3 color temperatures (3000K Warm White, 4500K Natural White, 6000K Cool White) by pressing the dedicated color temperature button.
- Umsebenzi Wesibali sikhathi: Set the fan to automatically turn off after 2 hours using the timer button.
- Imodi Yokudlulisela/Yokubuyela Emuva: Switch between summer (forward) and winter (reverse) modes.
Understanding Fan Modes (Reversible Airflow)

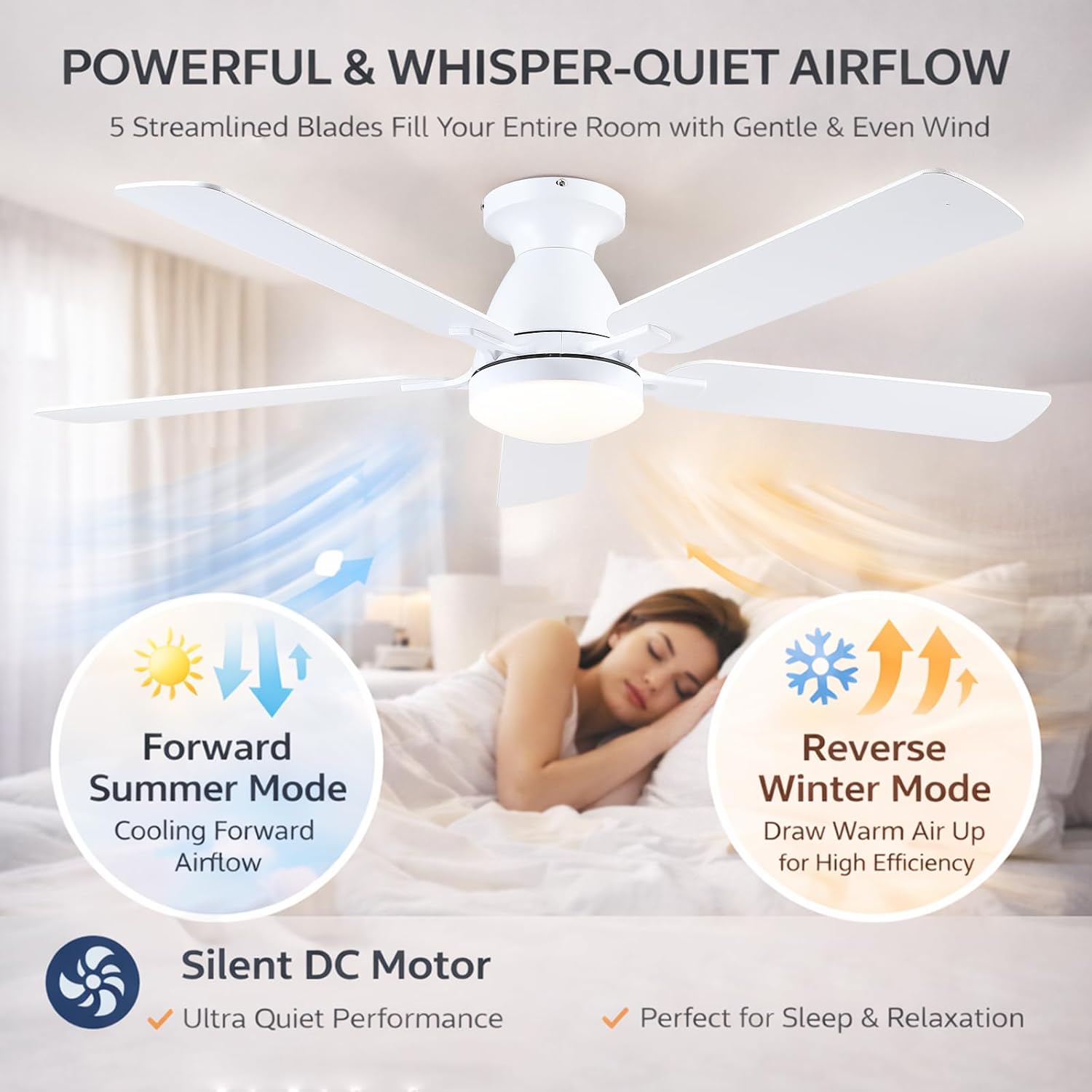

Image: Diagram illustrating the fan's reversible airflow feature. It shows "Forward Summer Mode" for cooling downward airflow and "Reverse Winter Mode" to draw warm air up for high efficiency.
- Forward Summer Mode: The fan blades rotate counter-clockwise, creating a downward airflow that generates a cooling breeze. This mode is ideal for warmer weather.
- Reverse Winter Mode: The fan blades rotate clockwise, creating an upward airflow that circulates warm air trapped near the ceiling throughout the room. This helps to improve heating efficiency during colder months.
Silent DC Motor and Timing Function
Image: Graphic highlighting the fan's quiet DC motor, operating at less than 30dB, and its timing function (2-hour timer). It also depicts "Nature Wind" and "No Beep" features for enhanced comfort.
The fan is equipped with an ultra-quiet DC motor, ensuring operation at less than 30dB, making it suitable for bedrooms and living areas where quiet performance is desired. The 2-hour timing function allows for convenient automatic shut-off.
Dimmable LED Light with 3 Color Temperatures
Image: Visual representation of the fan's integrated LED light offering three color temperatures (3000K, 4500K, 6000K) and a dimming slider from 10% to 100% brightness.
The integrated LED light provides versatile illumination. You can adjust its brightness from 10% to 100% and select from three distinct color temperatures: 3000K (warm white), 4500K (natural white), and 6000K (cool white) to match your mood or activity.
Isondlo
Regular maintenance ensures the longevity and optimal performance of your Kviflon ceiling fan.
- Ukuhlanza: Hlanza ama-fan nezindlu zenjini ngezikhathi ezithile ngesithambile, damp indwangu. Ungawasebenzisi ama-abrasive cleaners noma izincibilikisi, njengoba lezi zingalimaza isiphetho.
- Ukuhlolwa kwe-Blade: Check the fan blades for any cracks or damage. Replace damaged blades immediately to prevent imbalance and potential hazards.
- Qinisa izikulufu: Over time, screws may loosen. Periodically check and tighten all screws on the blade attachments and mounting bracket.
- Akukho Lubrication edingekayo: The DC motor is permanently lubricated and does not require additional oiling.
- Umthombo Wokukhanya: The LED light module is designed for long life. If replacement is ever needed, contact Kviflon customer support.
Ukuxazulula inkinga
Ngaphambi kokuxhumana nesevisi yamakhasimende, sicela ubheke umhlahlandlela wokuxazulula izinkinga olandelayo ngezinkinga ezivamile.
| Inkinga | Imbangela Engenzeka | Isixazululo |
|---|---|---|
| Umlandeli akaqali |
|
|
| Umlandeli uyavevezela |
|
|
| Ukukhanya akusebenzi |
|
|
| Isilawuli kude asisebenzi |
|
|
Imininingwane Yomkhiqizo
| Isici | Imininingwane |
|---|---|
| Ibhrendi | Kviflon |
| Inombolo Yemodeli | 8505 |
| Ubukhulu bomkhiqizo (L x W x H) | 132 x 132 x 26 cm (52 x 52 x 10.2 amayintshi) |
| Isisindo | 4.88 kg (10.76 lbs) |
| Okubalulekile | I-Acrylonitrile Butadiene Styrene (ABS), Insimbi, Ukhuni |
| Umthombo wamandla | Ikhebula likagesi |
| Voltage | 230 volts |
| Uhlobo Lokufaka | Intaba eshisayo |
| Uhlobo Lomthombo Wokukhanya | I-LED |
| Amandla Okukhanya kwe-LED | 18W |
| Inombolo yama-Blades | 5 |
| Uhlobo Lokulawula | Isilawuli kude |
| Isivinini sabalandeli | 1-6 Wind Speeds |
| Ukusetha Isikhathi | 2 amahora |
| Umsebenzi Ohlehliswayo | Yebo (Imodi Yasehlobo/Yasebusika) |
| Ukukhanya Okufiphele | Yebo (10%-100%) |
| Ukushisa Kombala | 3000K, 4500K, 6000K |
Image: Detailed product specification diagram showing key dimensions (52 inches diameter, 8.3 inches height from ceiling to light kit, 12 inches total height from ceiling to blade tip) and other technical details like voltage, LED power, and materials.
Umkhiqizo Uphelileview
The Kviflon Model 8505 ceiling fan is designed to complement various interior styles while providing efficient air circulation and lighting.
Image: The Kviflon ceiling fan elegantly installed in a contemporary living room, demonstrating its aesthetic integration with modern decor.
Image: The Kviflon ceiling fan providing illumination and airflow in a spacious kitchen area, positioned above a kitchen island.
Image: The Kviflon ceiling fan installed in a bedroom, showcasing its quiet operation and integrated lighting for a comfortable sleeping environment.
