Isingeniso
Thank you for choosing the Minsk W605 Bicycle Headlight. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new bicycle light. Please read this manual thoroughly before use to ensure optimal performance and safety.
Okuqukethwe Kwephakheji
Qinisekisa ukuthi zonke izinto ezibalwe ngezansi zifakiwe kuphakheji yakho:
- 1 x Bike Light
- Ikhebula lokushaja elingu-1 (Uhlobo lwe-USB C)
- 2 x Aluminum Brackets
- 1 x Transparent Connector
- 1 x Incwadi Yomsebenzisi
- Hardware (screws, non-slip silicone gaskets)

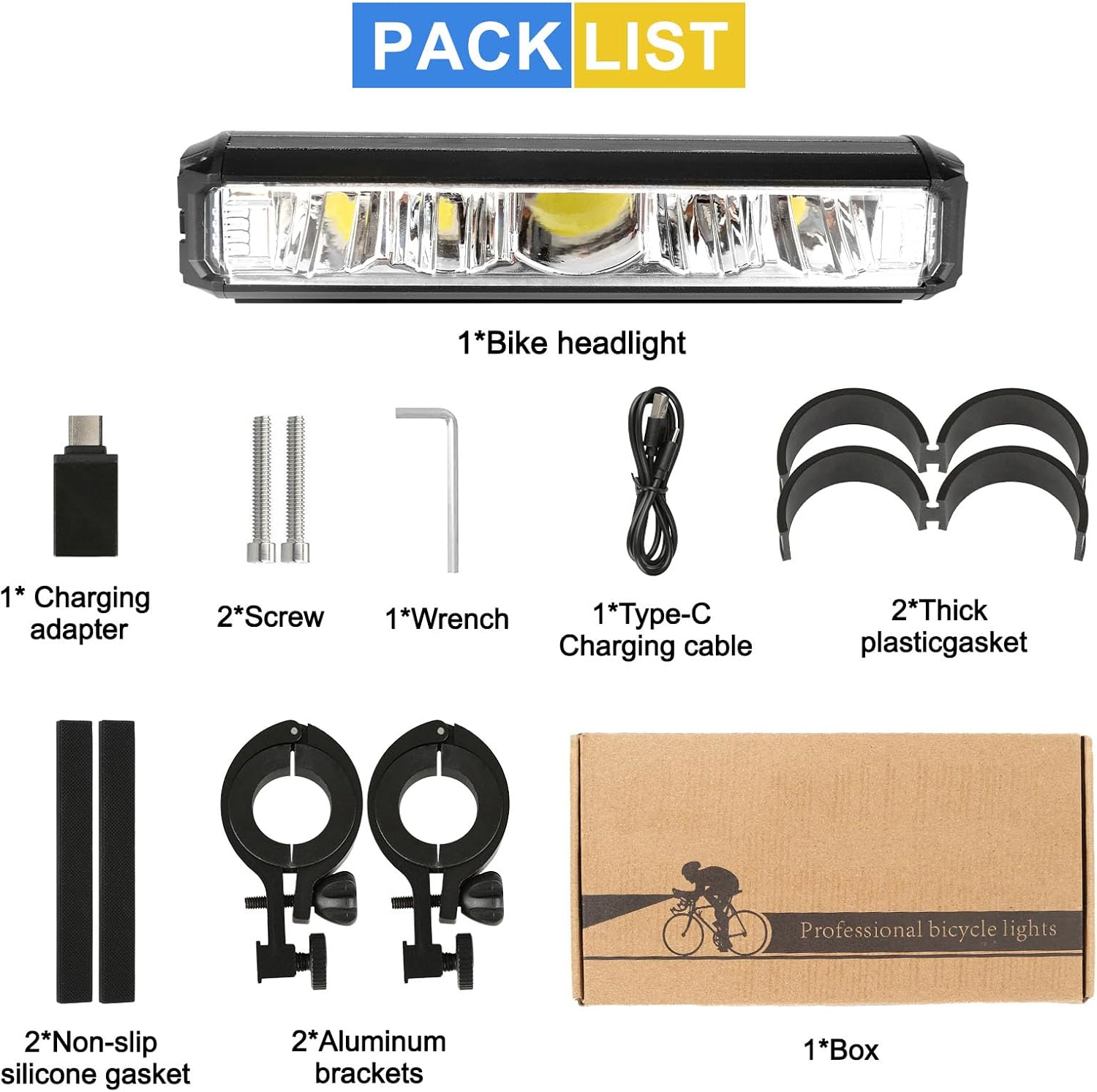

An image showing all components included in the package: the bike headlight, charging adapter, two screws, one wrench, one Type-C charging cable, two thick plastic gaskets, two non-slip silicone gaskets, two aluminum brackets, and the product box.
Imininingwane
| Isici | Imininingwane |
|---|---|
| Imodeli | W605 |
| Ubuningi be-LED | Ama-LED angama-17 |
| I-Lumen Output | 4000lm |
| Amamodi Okukhanya | 4 Modes (Flood, Spot, Bright, Flash) |
| Amandla ebhethri | 10000mAh |
| Isikhathi sokushaja | 5-7 amahora |
| Isikhathi Sokukhanyisa | Amahora angu-4.5-9 (kuya ngemodi) |
| I-interface yokushaja | I-USB Type-C |
| Isilinganiso Sokungangeni Manzi | IPX5 |
| Okubalulekile | I-Aluminium Alloy + ABS |
| Ubukhulu | 6.6"L x 2"W x 1.4"H |
| Isisindo | 9.76 amakhilogremu |
Ukusetha nokufaka
Follow these steps to properly install your Minsk W605 Bicycle Headlight:
Prepare the Handlebar:
Ensure the handlebar area where the light will be mounted is clean and free of obstructions. Place the non-slip silicone gaskets around the handlebar at the desired mounting position.
Namathisela Abakaki:
Open the aluminum brackets and position them over the silicone gaskets on the handlebar. Securely fasten the brackets using the provided screws and Allen wrench. Ensure they are tight enough to prevent movement but do not overtighten.
This image shows the four steps for easy installation: 1. Placing mounting spacers on the handlebar. 2. Fixing the base of the brackets onto the handlebar. 3. Clipping the bike light into the lamp slot on the fixed base. 4. Tightening the screws to secure the light.
Mount the Light:
Slide the Minsk W605 Bicycle Headlight onto the fixed base of the aluminum brackets until it clicks securely into place. The light should be facing forward and level with the ground.
Lungisa futhi Uvikele:
Adjust the angle of the light as needed for optimal visibility. Ensure all screws are tightened to prevent the light from shifting during rides.
Ukusebenza
Vula/Vala kanye Nokukhethwa Kwemodi
The Minsk W605 features a single button for power control and mode switching:
- Vula: Press and hold the power button for 2-3 seconds to turn the light on.
- Mode Cycle: Once on, short press the power button to cycle through the 4 available light modes: Flood Light, Spot Light, Bright Light, and Flashing Light.
- Cisha ugesi: Press and hold the power button for 2-3 seconds to turn the light off.
This image displays the four distinct light modes: Flood lights (all LEDs on), Spot lights (center LEDs on), Bright lights (all LEDs on at higher intensity), and Flashing lights (all LEDs flashing).
Isibonisi Samandla Edijithali
The integrated digital display shows the remaining battery power, allowing you to monitor usage and plan recharges effectively.

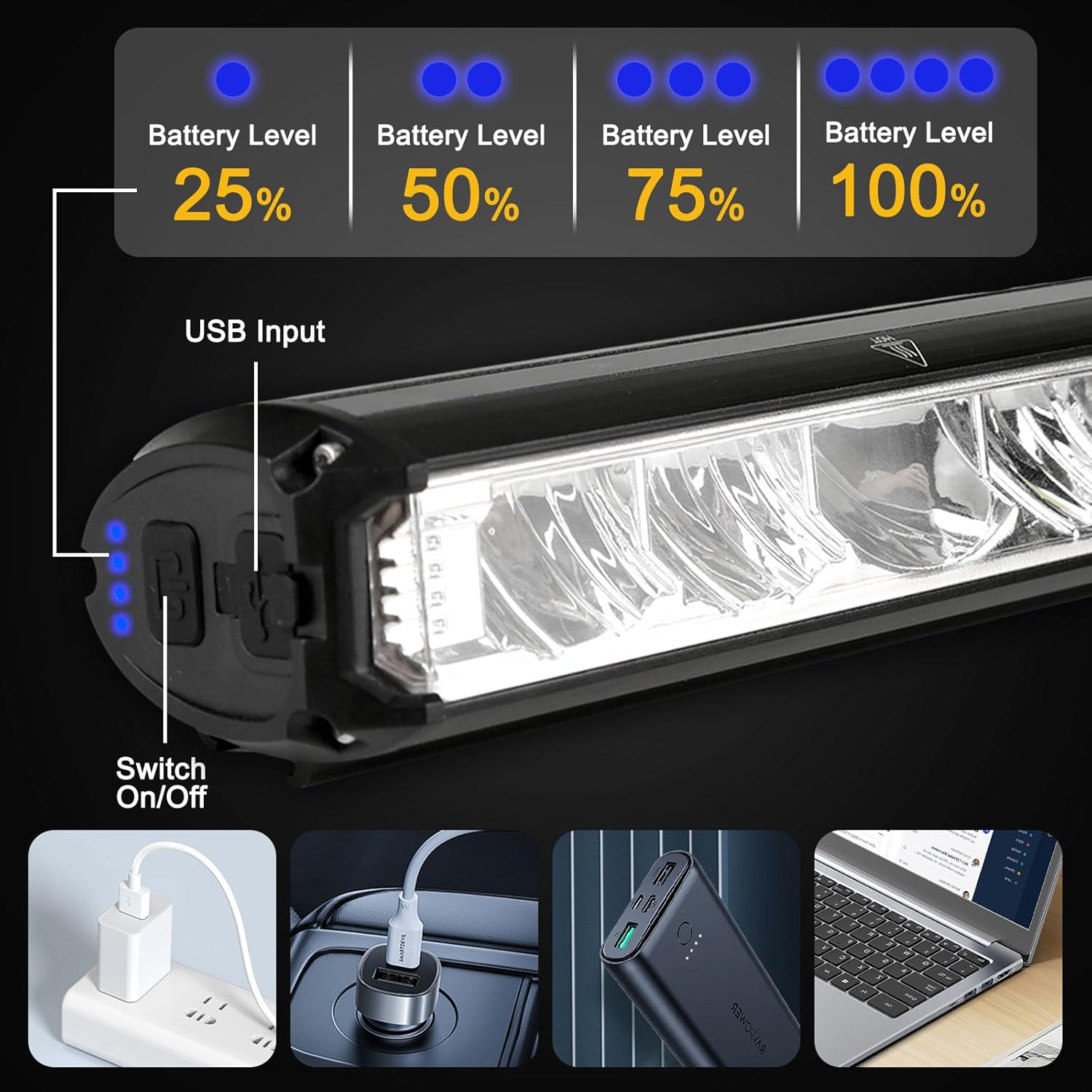

The image highlights the digital power display on the light, showing battery levels at 25%, 50%, 75%, and 100%. It also indicates the USB input port for charging, compatible with wall chargers, car chargers, and laptop USB ports.
Ukushaja Ibhethri
To charge the 10000mAh built-in battery:
- Connect the provided USB Type-C charging cable to the charging port on the light.
- Xhuma olunye uhlangothi lwekhebula le-USB emthonjeni wamandla we-USB ohambisanayo (isb., i-adaptha yodonga, imbobo ye-USB yekhompyutha, ibhange lamandla).
- The digital display will indicate charging status. A full charge typically takes 5-7 hours.
- Nqamula ikhebula uma isishajwe ngokugcwele.
Isondlo
- Ukuhlanza: Sula umzimba okhanyayo nge-soft, damp indwangu. Ungasebenzisi izinto zokuhlanza abrasive noma izincibilikisi.
- Ukumelana Namanzi: The light is IPX5 waterproof, meaning it is protected against low-pressure water jets from any direction. Avoid submerging the light in water.
- Isitoreji: Store the light in a cool, dry place when not in use. For long-term storage, charge the battery to about 50% to prolong its lifespan.
- Ukunakekelwa kwebhethri: Recharge the battery regularly, even if not frequently used, to maintain battery health. Avoid completely draining the battery before recharging.

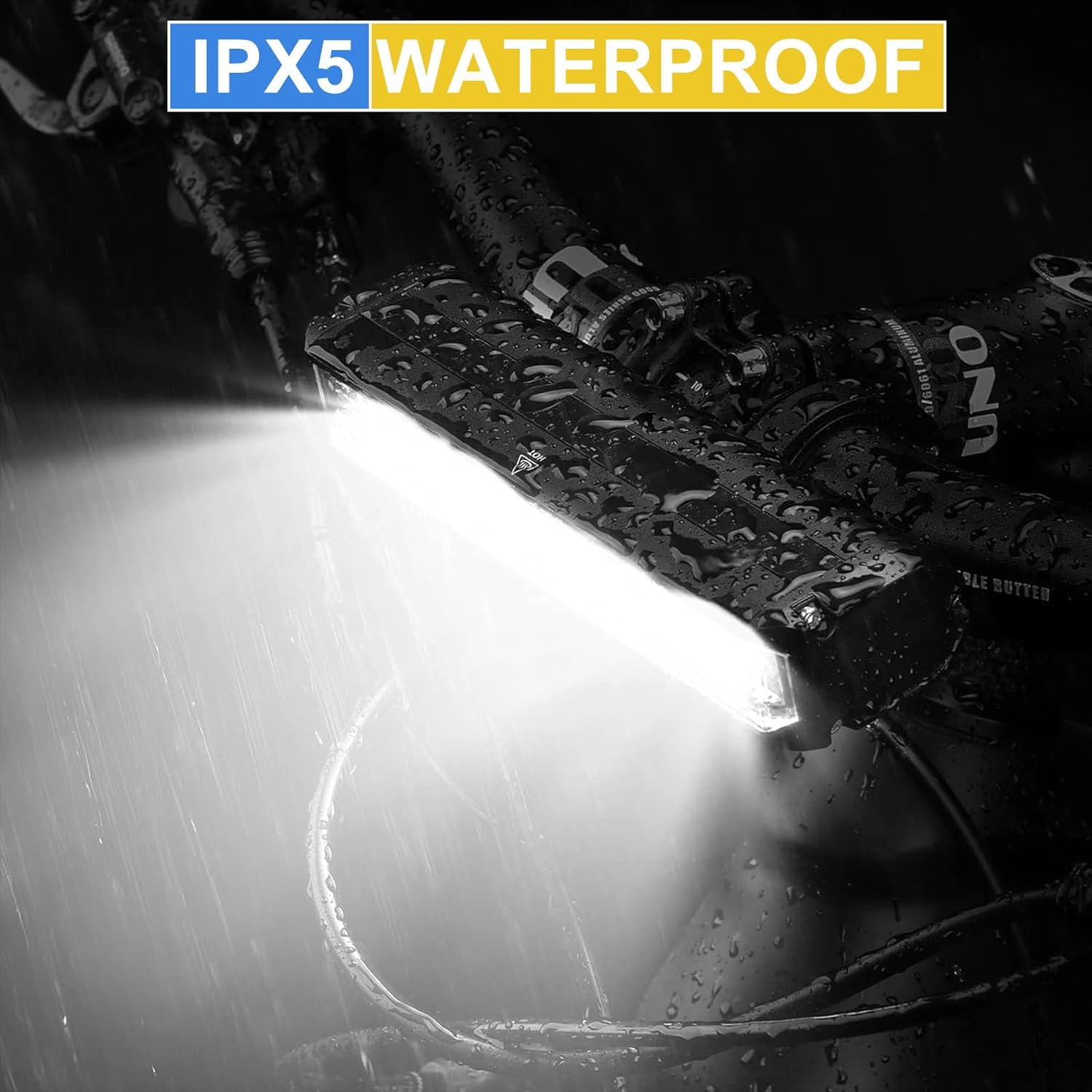

The image shows the bike light on a handlebar, wet with water droplets, emphasizing its IPX5 waterproof capability, suitable for use in rainy conditions.
Ukuxazulula inkinga
| Inkinga | Imbangela Engenzeka | Isixazululo |
|---|---|---|
| Ukukhanya akukhanyi | Ibhethri eliphansi | Charge the light fully. |
| Inkinobho yamandla ayicindezelwanga kahle | Cindezela bese ubamba inkinobho yamandla imizuzwana emi-2-3. | |
| Ukucwayiza okukhanyayo noma ukufiphala | Ibhethri eliphansi | Shaja kabusha ukukhanya. |
| Ukuxhumana okuxekethile | Ensure the light is securely mounted on its brackets. | |
| Ukukhanya akukhokhisi | Ikhebuli yokushaja enephutha noma i-adaptha | Zama ikhebula le-USB Type-C elihlukile kanye ne-adaptha yamandla. |
| Ukuvinjwa kwembobo yokushaja | Check the charging port for debris and clean if necessary. |
Iwaranti kanye Nokusekela
The Minsk W605 Bicycle Headlight comes with a Iwaranti Yonyaka Ongu-2 Yomkhiqizi kusukela ngedethi yokuthenga. Lesi siqinisekiso sihlanganisa amaphutha ezintweni zokwakha kanye nokusebenza ngaphansi kokusetshenziswa okuvamile.
For warranty claims, technical support, or any questions regarding your product, please contact Minsk customer service through the retailer where you purchased the product or visit the official Minsk webindawo yolwazi lokuxhumana.
Sicela ugcine ubufakazi bakho bokuthenga ukuze uqinisekise iwaranti.
