TOWILD TL03 Bicycle Tail Light Instruction Manual

Umkhiqizo Uphelileview

The TOWILD TL03 is a smart bicycle tail light designed to enhance cycling safety. It features intelligent brake detection, automatic light sensing, and multiple lighting modes, all powered by a rechargeable USB-C battery with an IPX6 waterproof rating.

Izici Eziyinhloko

• Brake Warning Function (ON/OFF): Manually enable or disable the brake light feature. When activated, the light illuminates at maximum brightness during braking to alert traffic behind you. To toggle, long-press the switch for 3 seconds when the power is on. The light will flash 3 times to indicate the change.
• Light Sensor & Vibration Detection: Equipped with a smart chip, the light automatically turns on in dark environments (e.g., tunnels) and turns off in bright conditions during the day. The vibration sensor automatically turns the light on when movement is detected and off after 120 seconds of no vibration, conserving battery.
• 5 Izindlela Zokukhanyisa: Choose from Strobe, Rapid Flash, Breathing Flash, Flash, and Constant modes to suit various riding conditions.
• I-IPX6 Ingangeni manzi: Designed with high-density ABS material, ensuring reliable performance in rain and harsh weather conditions.
• I-USB-C Ishajwa kabusha: Features a 300mAh built-in battery with USB-C charging, eliminating the need for frequent battery replacement. Fully charges in approximately 2 hours.
• Inkomba Yezinga Lebhethri: Four red indicator lights show the battery status (0-25%, 25-50%, 50-75%, 75-100%) when the device is powered on.
• Ukufaka Okulula: Tool-free installation with included rubber bands, allowing mounting on seat rails or seat posts.

Ukusetha nokufaka

The TOWILD TL03 tail light offers two primary installation methods: on the saddle rail or on the seat post. Both methods are tool-free and utilize the provided rubber bands.

Mounting on Saddle Rail

1. Attach the light's bracket to the saddle rail using the provided tie-wrap band.
2. Rotate the main body of the light clockwise by 90 degrees to secure it to the bracket.
3. Ukufakwa kuqediwe.

Mounting on Seat Post

1. Combine the light's bracket with the seat post fixing rubber band.
2. Secure the bracket to the seat post using the rubber band.
3. Rotate the main body of the light clockwise by 90 degrees to secure it to the bracket.
4. Ukufakwa kuqediwe.

Ukusebenza

• Amandla VULA/CIMILE: Long-press the switch for 0.5 seconds to turn the light on or off.
• Ukushintsha Amamodi Okukhanyisa: With the power on, single-click the switch to cycle through the five lighting modes.
• Toggle Smart Mode / Manual Mode: With the power on, double-click the switch to switch between Smart Mode and Manual Mode.
• Brake Function ON/OFF: With the power on, long-press the switch for 3 seconds. The light will flash 3 times, and the brake function will turn off. To turn it back on, long-press the switch for 3 seconds again; the light will flash 3 times, and the brake function will resume.

Automatic Light Sensing

The integrated high-sensitivity light sensor automatically detects ambient light conditions. In Smart Mode, the light will turn off when it's bright (daytime) and automatically turn on when it's dark (nighttime or entering a tunnel).

Vibration Detection (Auto ON/OFF)

The smart chip includes a vibration sensor. When in Smart Mode, the light will automatically turn on when it detects movement. If no vibration is detected for 120 seconds, the light will automatically turn off to save battery. It will reactivate upon sensing vibration again.

Ukushaja kanye nebhethri

The TOWILD TL03 is equipped with a 300mAh internal battery and supports USB-C fast charging. A full charge takes approximately 2 hours.

Inkomba Yezinga Lebhethri

When the device is powered on, four red indicator lamps display the current battery level:

• Eyodwa lamp: 0-25% ibhethri
• Amabili lamps: 25-50% ibhethri
• Okuthathu lamps: 50-75% ibhethri
• Ezine lamps: 75-100% ibhethri

Lighting Modes and Runtimes

The TL03 offers five distinct lighting modes, each with varying runtimes. Please note that the listed runtimes are test values with the brake function OFF. Actual runtimes may vary depending on the frequency of brake activation when the brake function is ON.

Qaphela: The above runtimes are tested with the brake function OFF. When the brake function is ON, the runtime will vary depending on the frequency of braking. Higher braking frequency will result in shorter runtimes.

Ukumelana Namanzi

The TOWILD TL03 tail light boasts an IPX6 waterproof rating. This means it is protected against high-pressure water jets from any direction, making it suitable for use in rainy weather and on bumpy roads without concerns about water damage or malfunction.

Okuqukethwe Kwephakheji

Upon opening your TOWILD TL03 package, you should find the following items:

• 1 x TL03 Tail Light
• 1 x Light Bracket
• 1 x Ikhebula lokushaja le-USB-C
• 3 x Tie-wrap Bands
• 1 x Anti-slip Pad (for seat post)
• 2 x Rubber Bands
• 1 x Incwadi Yeziqondiso

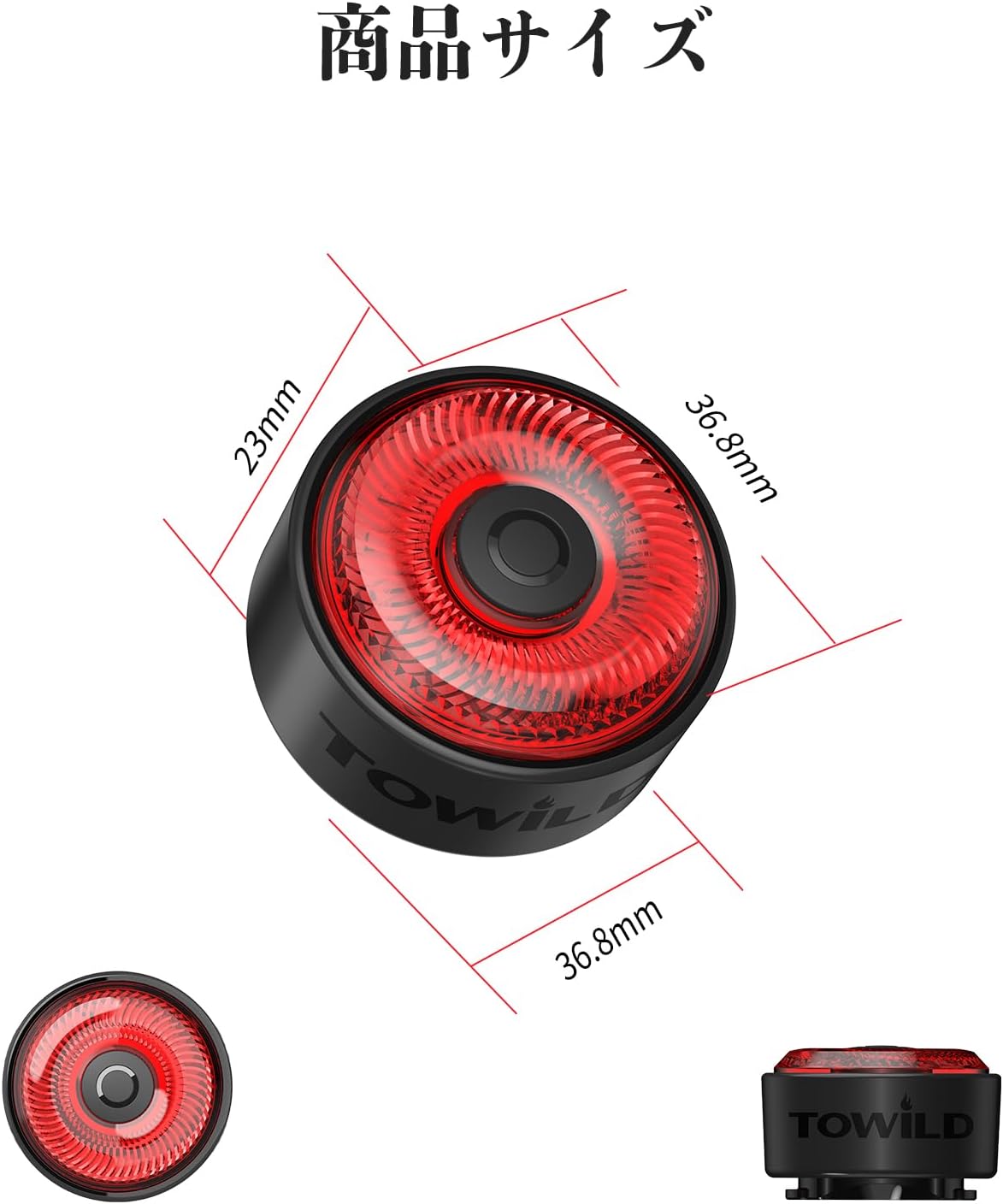

Ubukhulu bomkhiqizo

The TOWILD TL03 tail light has compact dimensions, making it suitable for various bicycle types.

• Ubude: 37 mm
• Ububanzi: 37 mm
• Ubude: 23 mm
• Isisindo: awu 20g

Imininingwane

Ukuxazulula inkinga

If you encounter any issues with your TOWILD TL03 tail light, please refer to the following common troubleshooting tips:

• Ukukhanya okungakhanyi: Ensure the battery is charged. Connect the light to a USB-C power source and check the battery indicator. Long-press the power button for 0.5 seconds to turn it on.
• Light not responding to movement (Smart Mode): Double-check that the light is in Smart Mode. If it is, ensure there is sufficient vibration to trigger the sensor.
• Brake light not activating: Verify that the brake warning function is enabled (long-press for 3 seconds to toggle). Ensure the light is securely mounted and can detect deceleration.
• Impilo yebhethri emfushane: Runtimes vary by mode. Ensure you are using a mode appropriate for your desired duration. Frequent brake activations in modes with the brake function enabled will reduce overall runtime.

If these steps do not resolve your issue, please contact TOWILD customer support for further assistance.

Iwaranti kanye Nokusekela

The TOWILD TL03 Bicycle Tail Light comes with a Iwaranti yomkhiqizi yonyaka ongu-2. If you experience any product defects or issues within this period, please contact TOWILD customer support. They will be able to provide assistance and guidance regarding warranty claims or product inquiries.

For support, please refer to the contact information provided in your product packaging or visit the official TOWILD webindawo.
