RCB RK15 26-inch Electric Bicycle User Manual

1. Isingeniso

Thank you for choosing the RCB RK15 26-inch Electric Bicycle. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your e-bike. Please read it thoroughly before your first ride and keep it for future reference.

The RCB RK15 is designed for adults, featuring a 250W motor, 26-inch wear-resistant tires, and a shock-absorbing suspension fork for a comfortable riding experience across various terrains. It offers a range of 35 to 90 kilometers, depending on riding conditions and assistance level.

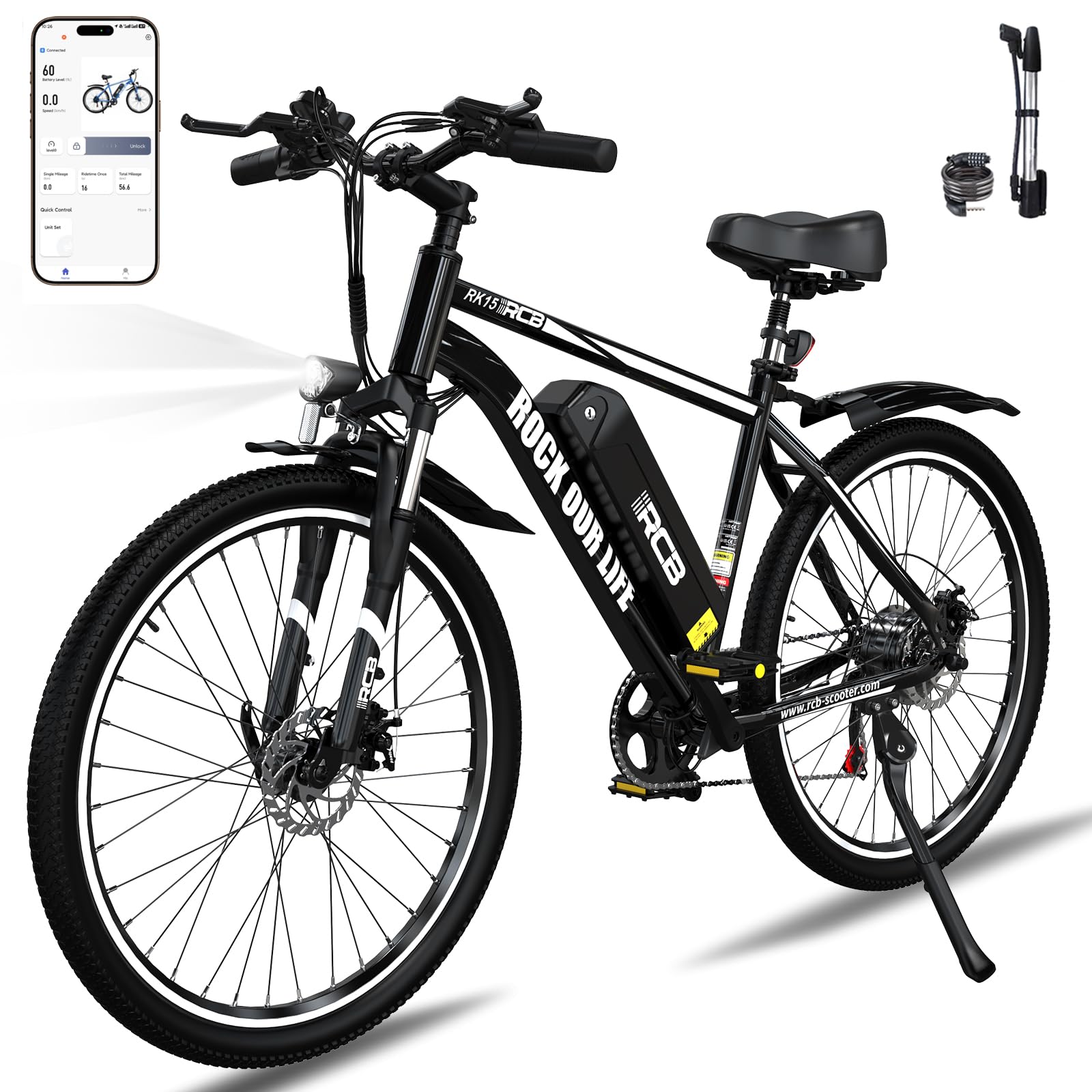

Isithombe: The RCB RK15 26-inch Electric Bicycle, highlighting its robust frame and overall design.

2. Ulwazi Lokuphepha

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to local traffic laws and regulations. Regular inspections and maintenance are crucial for safe operation.

• Amabhuleki: The RK15 is equipped with mechanical front and rear disc brakes. Ensure they are always in good working condition. Test brakes before each ride.
• Izibani: The integrated LED headlight and brake light enhance visibility, especially during night rides. Ensure they are functional.
• Izibonisi: The bicycle includes safety reflectors for increased visibility.
• Umkhawulo Wesisindo: Do not exceed the recommended maximum load capacity of 120 kg.
• Ukuphepha Kwebhethri: Sebenzisa ishaja enikeziwe kuphela. Ungalibeki ibhethri emazingeni okushisa aphezulu noma ulibhoboze.

Isithombe: Safety features including LED headlight, brake light, wheel reflectors, and dual damping suspension for enhanced rider safety.

3. Umkhiqizo Uphelileview

The RCB RK15 is a robust electric bicycle designed for comfort and performance. Key components include:

• Imoto: 250W brushless motor, providing assistance up to 25 km/h.
• Ibhethri: Removable 36V 10.4Ah Lithium-ion battery.
• Amathayi: 26-inch wear-resistant and puncture-proof tires suitable for various terrains.
• Ukumiswa: Front suspension fork for shock absorption.
• Amagiya: Shimano 7-speed gear system.
• Amabhuleki: Mechanical front and rear disc brakes.
• Bonisa: Intelligent LCD display showing speed, distance, and battery level.
• Izibani: LED headlight and brake light.

Isithombe: The 250W brushless motor integrated into the rear wheel, highlighting its energy efficiency, 25 km/h maximum speed, and 25-degree climbing capability.

Isithombe: The 26x2.125 inch tires, designed to be slip-resistant and wear-resistant, suitable for diverse terrains such as urban streets, dirt roads, and mountain trails.

4. Ukusetha nokuhlanganisa

The RCB RK15 electric bicycle comes 85% pre-assembled. Final assembly typically involves attaching the front wheel, handlebars, pedals, and seat. A multi-function tool is included for convenience.

4.1 Ukuqaqa

Carefully remove the bicycle and all components from the packaging. Inspect for any shipping damage. Keep all packaging materials until assembly is complete and satisfactory.

4.2 Izinyathelo Zomhlangano

1. Faka Isondo Langaphambili: Align the front wheel with the fork and secure it using the quick-release mechanism or axle nuts. Ensure the disc brake rotor is correctly seated in the caliper.
2. Namathisela i-Handlebar: Insert the handlebar stem into the fork tube and tighten the bolts. Adjust the angle for comfortable riding.
3. Faka ama-Pedals: Note that pedals are marked 'L' for left and 'R' for right. Thread the 'L' pedal counter-clockwise and the 'R' pedal clockwise into the crank arms. Tighten securely.
4. Adjust Seat Post: Insert the seat post into the frame and adjust the height for comfortable pedaling. Secure with the quick-release lever.
5. Install Fenders and Lights: Attach any remaining fenders and ensure the LED headlight and brake light are securely mounted and functional.

For detailed visual instructions, please refer to the assembly video available on the product page or contact customer service for assistance.

5. Iziqondiso Zokusebenza

The RCB RK15 offers multiple riding modes to suit your preferences and terrain.

5.1 Ukuvula / Ukuvula

Locate the comfortable On/Off switch, typically near the handlebar, to power the bike's electrical system.

5.2 Izindlela zokugibela

• Cruise Mode (Pedal Only): Ride the bicycle like a traditional bike without electrical assistance.
• Imodi yokusiza i-Pedal: The motor provides assistance as you pedal, making riding easier, especially on inclines or over long distances. The level of assistance can be adjusted via the display.
• Imodi kagesi emsulwa: (Requires modification, contact customer service for accessories) In this mode, the bike operates solely on motor power without pedaling.

5.3 Ukushintsha Igiya

The Shimano 7-speed gear system allows you to adjust your pedaling effort. Use the twist grip shifter on the handlebar to change gears according to terrain and speed.

5.4 Isibonisi se-LCD

The intelligent LCD display provides real-time information:

• Isivinini: Isivinini sokugibela samanje.
• Ibanga: Ibanga lohambo noma i-odometer ephelele.
• Ileveli Yebhethri: Ikhombisa ukushajwa kwebhethri okusele.
• Ileveli yokusiza: Shows the current level of pedal assistance.

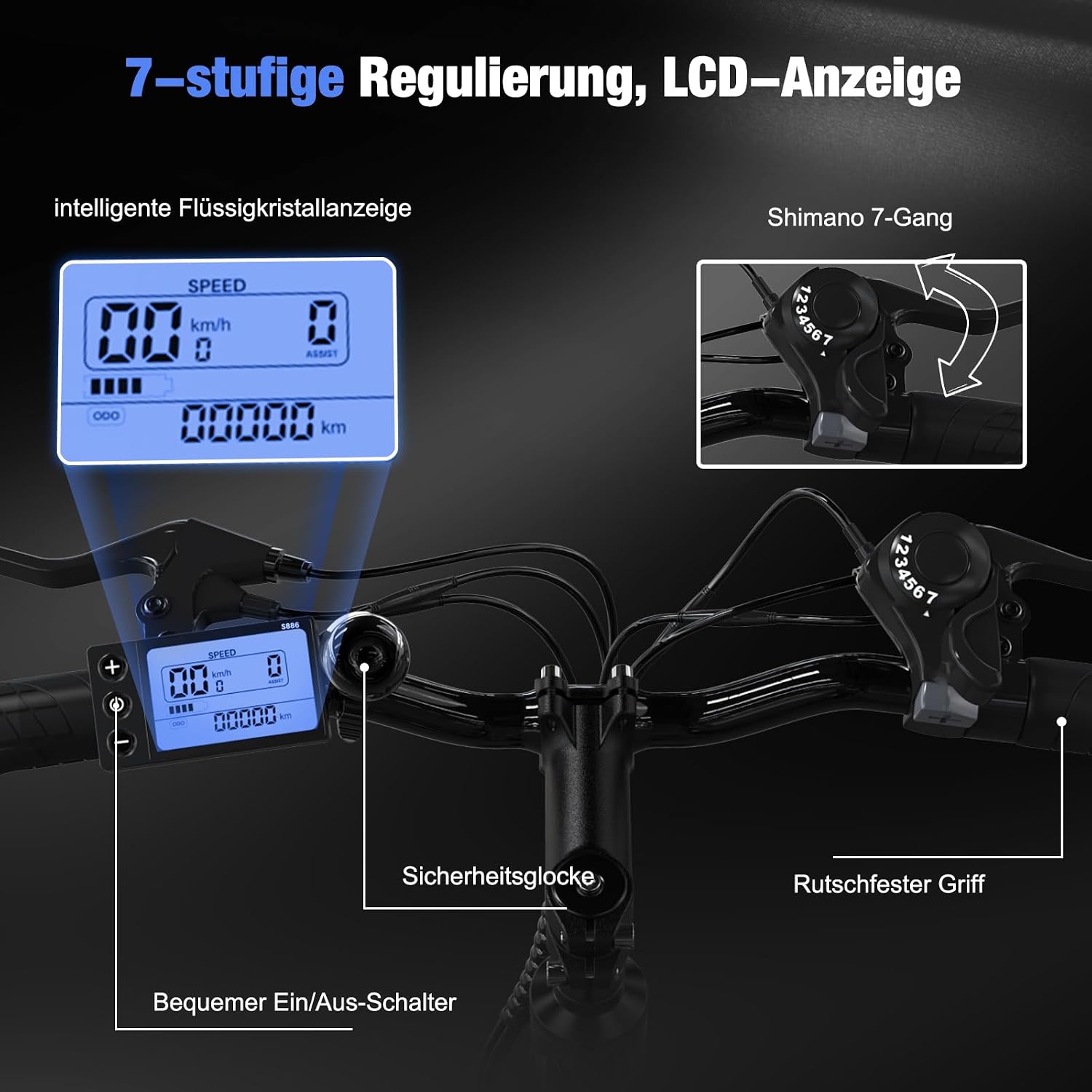

Isithombe: Handlebar controls featuring the intelligent LCD display, Shimano 7-speed twist shifter, safety bell, non-slip grip, and a convenient power on/off switch.

6. Ulwazi lwebhethri kanye nokushaja

The RCB RK15 is powered by a 36V 10.4Ah lithium-ion battery, offering an extended cruising range.

6.1 Izici zebhethri

• Khipha: The battery is easily removable for convenient charging and enhanced security. It can be locked to the frame.
• Ibanga: Provides a range of 35 to 90 kilometers, depending on factors like terrain, rider weight, and assistance level.
• I-BMS: Equipped with a Battery Management System for safety protection.
• Ingangeni manzi: Rated IP54 for water resistance.

6.2 Ukushaja Ibhethri

• Ishaja: Use only the provided 42V 2A adapter.
• Isikhathi sokushaja: Ukushaja okugcwele ngokuvamile kuthatha amahora angu-5-6.
• Inqubo:
  1. Ensure the bicycle is powered off.
  2. Connect the charger to the battery charging port.
  3. Xhuma ishaja endaweni evamile yodonga.
  4. Isibani senkomba yokushaja ngokuvamile sizobonakala sibomvu ngesikhathi sokushaja bese siphenduka sibe luhlaza uma sishajwe ngokugcwele.
  5. Nqamula ishaja uma ukushaja sekuqediwe.

Isithombe: The 36V 10.4Ah Lithium-ion battery, emphasizing its role in providing electric assistance for easy riding and its impressive range of 35-90 km.

Isithombe: The removable battery being charged, illustrating its ease of use, BMS safety protection, 42V 2A adapter, 5-6 hour charging time, and IP54 waterproof rating.

7. Isondlo

Regular maintenance ensures the longevity and safe operation of your RCB RK15 e-bike.

• Ingcindezi Yamathaya: Hlola umfutho wethayi ngaphambi kohambo ngalunye. Gcina umfutho onconywayo ukuze usebenze kahle futhi uphephe.
• Amabhuleki: Regularly inspect brake pads and cables for wear. Adjust or replace as needed. Ensure disc rotors are clean and free from oil.
• Iketango: Gcina iketanga lihlanzekile futhi ligcotshwe ukuze kuvinjelwe ukugqwala futhi kuqinisekiswe ukuthi kushintshwa kahle igiya.
• Izibophelelo: Ngezikhathi ezithile hlola wonke amabhawodi namantongomane ukuze aqine, ikakhulukazi ezintweni ezibalulekile njengezibambo, amasondo, nezigxobo zesihlalo.
• Ukunakekelwa kwebhethri: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% every 1-2 months.
• Ukuhlanza: Hlanza ibhayisikili nge-damp indwangu. Gwema ukusebenzisa amawasha anengcindezi ephezulu ngqo ezingxenyeni zikagesi.

8. Ukuxazulula izinkinga

This section addresses common issues you might encounter with your RCB RK15 e-bike.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact RCB customer support.

9. Imininingwane

Isithombe: Detailed dimensions of the RCB RK15 electric bicycle, including adjustable saddle and handlebar heights, recommended rider height (162-195 cm), bicycle weight (23.3 kg), and maximum load capacity (120 kg).

10. Iwaranti kanye Nokusekela

10.1 Ulwazi Lwewaranti

The RCB RK15 electric bicycle comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and what is covered.

10.2 Ukwesekwa Kwamakhasimende

If you have any questions regarding assembly, operation, maintenance, or require technical assistance, please do not hesitate to contact RCB customer service. Contact details can typically be found on the product packaging or the official RCB webindawo.

For inquiries about modifying the bike to support pure electric mode, please contact customer service to purchase the necessary accessories.
