ANDTE 305 Pint Commercial Dehumidifier Instruction Manual

1. Isingeniso

Thank you for choosing the ANDTE 305 Pint Commercial Dehumidifier. This powerful unit is engineered for high-efficiency moisture removal in large commercial and industrial spaces, basements, and during water damage restoration. With its robust design and intelligent features, it provides reliable and continuous dehumidification to maintain optimal humidity levels and prevent issues like mold and mildew.

Kuphelileview of the ANDTE Commercial Dehumidifier's capabilities, including moisture removal rates and coverage area.

The dehumidifier is designed for large area dehumidification, maximizing drying performance in spaces up to 9,000 sq.ft.

2. Ulwazi Lokuphepha

Please read all safety instructions carefully before operating the dehumidifier. Failure to comply with these instructions may result in electric shock, fire, or serious injury.

• Ensure the unit is connected to a NEMA 5-20 receptacle (20 Amps, 125 Volts) to meet commercial and industrial electrical codes and safety standards.
• Ungayisebenzisi iyunithi ngentambo eyonakele noma ipulaki.
• Gcina iyunithi ikude namanzi nolunye uketshezi.
• Ungavimbeli izindawo zokungena komoya noma izitolo.
• This appliance uses R32 refrigerant. Servicing should only be performed by trained service personnel.
• Lahla umkhiqizo ngokuhambisana nemithetho kahulumeni noma yendawo.

Important note regarding the required NEMA 5-20 receptacle for proper operation.

3. Okuqukethwe Kwephakheji

Qinisekisa ukuthi zonke izinto zikhona kuphakheji:

• ANDTE Commercial Dehumidifier Unit
• Khipha iHose
• Imaniwali yosebenzisayo

4. Setha

Landela lezi zinyathelo zokusetha kokuqala:

1. Ukukhulula: Khipha ngokucophelela i-dehumidifier ephaketheni layo. Hlola ukuthi akukho yini umonakalo wokuthunyelwa.
2. Ukubekwa: Place the unit on a stable, level surface in the desired area. Ensure there is adequate space around the unit for proper airflow (at least 12 inches from walls or obstructions).
3. Ukusethwa kweDrainage: This unit supports both pump drainage and auto gravity drainage.
• Ukumpompa Amanzi: Connect the drain hose to the pump outlet. The built-in pump can lift water up to 16.5 ft, allowing for flexible drainage options.
• Auto Gravity Drainage: Connect the provided 6.56 ft drain hose to the gravity drain outlet. Ensure the hose is sloped downwards to a suitable drain point (e.g., floor drain, sink) for continuous drainage.
4. Ukuxhuma kwamandla: Xhuma i-dehumidifier endaweni ezinikele engu-20 Amp, 125 Volt NEMA 5-20 receptacle.

Drainage options: built-in pump for elevated drainage or gravity drainage with the included hose.

5. Iziqondiso Zokusebenza

The dehumidifier features an intuitive control panel for easy operation.

The intelligent control panel offers simple operation with features like continuous dehumidification, memory starting, auto defrost, and auto drain.

Imisebenzi Yephaneli Yokulawula:

• Inkinobho yamandla: Kuvula iyunithi KUVALIWE / KUVALIWE.
• Isilungiselelo Somswakama: Use the Up/Down arrows to set your desired humidity level (10% - 98% RH). The unit will operate to maintain this level.
• Umsebenzi Wesibali sikhathi: Set the unit to automatically turn ON or OFF after a specified period (1-24 hours).
• Imodi Eqhubekayo: For continuous operation, select the continuous dehumidification mode. This is ideal for rapid drying.
• I-Auto Defrost: The unit features an automatic defrost cycle. If frost is detected on the coils, the compressor will temporarily shut down while the fan continues to run, melting the frost. Dehumidification resumes automatically once defrosting is complete.

The auto defrost function ensures efficient operation by preventing coil freezing.

Izici ezikhethekile:

• Ukuqala Kwenkumbulo: Uma kwenzeka amandla outage, the unit will automatically restart with the previously set humidity and operation mode once power is restored.
• Ukusebenza Komsindo Ophansi: Designed to operate efficiently with noise levels at or below 54dB.

6. Isondlo

Ukunakekelwa okuvamile kuqinisekisa ukusebenza okuphelele nokuphila isikhathi eside kwe-dehumidifier yakho.

• Ukuhlanza Isihlungi: The unit is equipped with a removable filter that protects internal components from dust and particles. Clean the filter regularly (e.g., monthly, or more frequently in dusty environments) by rinsing it with water and allowing it to air dry completely before reinserting.
• Ukuhlanza Ingaphandle: Sula ingaphandle leyunithi ngento ethambile, damp indwangu. Ungasebenzisi amakhemikhali anokhahlo noma izihlanzi ezilumayo.
• Isitoreji: If storing the unit for an extended period, ensure it is clean and dry. Disconnect the power cord and drain any remaining water from the unit and hose.

7. Ukuxazulula izinkinga

Bheka lesi sigaba ngezinkinga ezivamile nezisombululo zazo.

8. Imininingwane

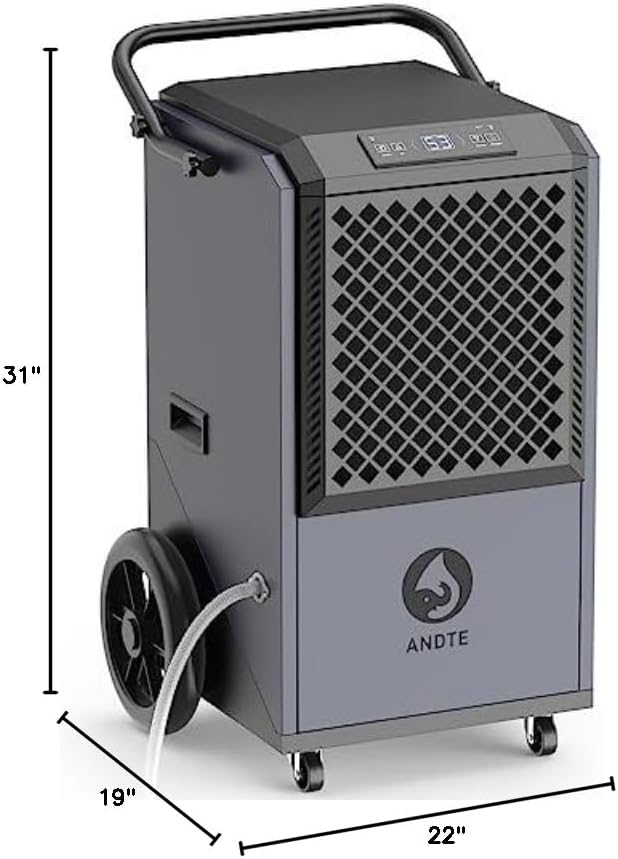

Physical dimensions of the dehumidifier.

Comprehensive technical specifications for the dehumidifier.

9. Iwaranti kanye Nokusekela

ANDTE is committed to providing reliable quality products and services. We believe in quality and after-sales service.

Detailed policy of warranty services for the ANDTE dehumidifier.

Ukufakwa kwewaranti:

• Isistimu yesiqandisi: 5 Years (Compressor, Condenser, Evaporator - excluding labor and refrigerant).
• Izingxenye ze-Electronic: 3 Years (Display screen, Mainboard, Signal cable - excluding labor).
• Consumable Accessories: 1 Year (Drain hose, Filter, Handle, Screws - excluding labor).
• Overall Units: 1 Year for functional failure, defect, or inferior workmanship.
• Overall Units: 30 Days for nonfunctional problems.

Warranty coverage starts from the next day of delivery. For issues beyond the time limit, paid services may be provided.

Ukwesekwa Kwamakhasimende:

If you have any questions or require support, please do not hesitate to contact us. We aim to reply within 12 hours and assist you in resolving any problems.

Ulwazi lokuxhumana:

• I-imeyili: service@andte.com
• Webindawo: www.andte.com
