Wurkkos DL07 3000 Lumen Rechargeable Diving Flashlight Instruction Manual

1. Isingeniso

The Wurkkos DL07 is a professional-grade diving flashlight designed for underwater photography, video lighting, and general diving activities. Featuring 3000 lumens of bright illumination, IPX8 waterproofing up to 100 meters, and a wide 135-degree beam angle, this compact and durable flashlight offers versatile lighting options including cool white spotlight, warm white floodlight (high/low), red light, and black light. Its magnetic rotary switch allows for easy one-handed operation, and the convenient ball joint ensures simple mounting to various camera systems.

2. Ulwazi Lokuphepha

• Ukuphepha Kwebhethri: Use only the specified Lithium Ion battery. Ensure correct polarity during installation. Do not expose batteries to extreme heat or dispose of them in fire.
• Ukuvimbela amanzi: Always ensure the tail cap is securely tightened and O-rings are properly seated and lubricated before submerging the flashlight. Failure to do so may result in water ingress and damage.
• Ukushisa: The flashlight may become warm during prolonged use, especially on higher modes. Handle with care.
• Ukuvikelwa Kwamehlo: Do not shine the light directly into eyes. The high lumen output can cause temporary vision impairment.
• Izingane: Gcina endaweni lapho izingane zingafinyeleleki khona.

3. Okuqukethwe Kwephakheji

Sicela ukhethe izinto ezilandelayo ebhokisini:

• Wurkkos DL07 Diving Flashlight
• 1 x Lithium Ion Battery (included)
• Ikhebuli yokushaja ye-USB-C
• Lanyard
• Izindandatho ze-Spare (2 izingcezu)
• Imaniwali yosebenzisayo

4. Umkhiqizo Uphelileview

The Wurkkos DL07 is constructed from premium aluminum alloy, ensuring scratch-proof, drop-proof, abrasion, and seawater corrosion resistance. It features a compact design for easy handling and portability.

4.1 Izici ezibalulekile

• Multi-Function Lighting: Offers Cool White Spotlight (XPL-HI 5300-5700K LED), Warm White Floodlight (LH351D 5000K 90CRI LED - High/Low), Red Light (XPE LED), and Black Light (LG LED).
• Magnetic Rotary Switch: Provides intuitive one-handed control for power and mode selection.
• I-IPX8 Ingangeni manzi: Rated for underwater use up to 100 meters.
• I-Wide Beam Angle: 135 degrees for broad illumination, ideal for photography and video.
• Convenient Ball Joint: Easily mounts to any camera system for versatile positioning.

4.2 Izingxenye

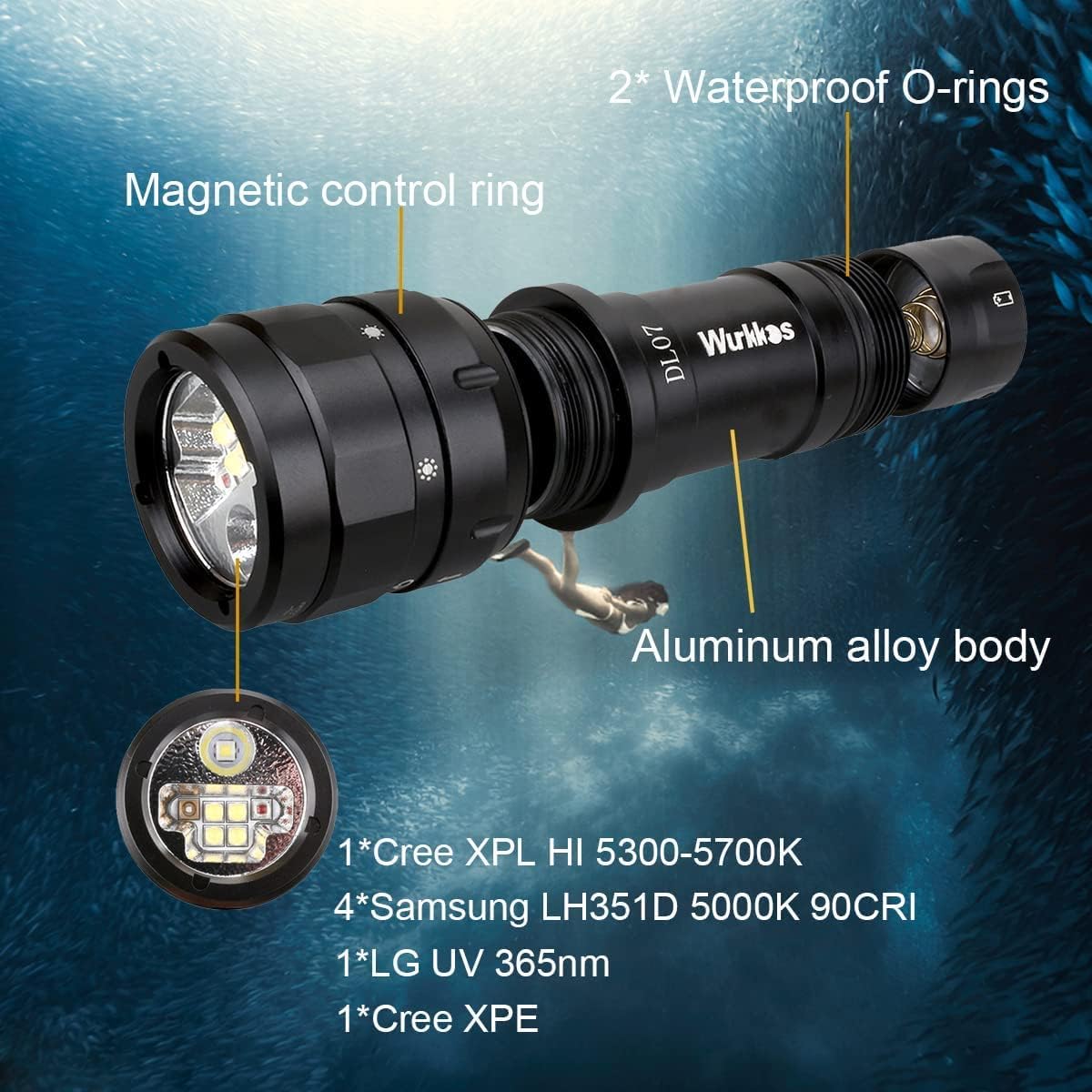

Isithombe: Kuqhume view of the Wurkkos DL07 Diving Flashlight, highlighting its aluminum alloy body, magnetic control ring, and double O-rings for waterproofing.

Image: The front of the Wurkkos DL07, illustrating the different types of LEDs for various lighting modes, including cool white, UV, warm white, and red light.

5. Setha

5.1 Ukufakwa kwebhethri

1. Khumula ikepisi lomsila wethoshi.
2. Remove the insulating film from the positive (+) end of the included Lithium Ion battery.
3. Insert the battery into the flashlight with the positive (+) end facing towards the head of the flashlight.
4. Screw the tail cap back on tightly to ensure a waterproof seal.

5.2 Ukushaja

The DL07 uses a rechargeable Lithium Ion battery. To charge:

1. Connect the provided USB-C charging cable to the charging port on the flashlight.
2. Xhuma olunye uhlangothi lwekhebula le-USB-C emthonjeni wamandla we-USB ohambisanayo (isb., i-adaptha yodonga, imbobo ye-USB yekhompyutha).
3. The indicator light will show charging status (refer to the manual for specific light indications).
4. Uma isishajwe ngokugcwele, nqamula ikhebula.

6. Iziqondiso Zokusebenza

The Wurkkos DL07 features a magnetic rotary switch for easy operation.

6.1 Vula/Vala amandla

• To turn on the flashlight, rotate the magnetic switch to the right.
• To turn off the flashlight, rotate the magnetic switch to the left.

6.2 Ukushintsha Imodi

With the flashlight on, rotate the magnetic switch from left to right to cycle through the different lighting modes:

1. Cool White Spotlight
2. Warm White Floodlight (High)
3. Warm White Floodlight (Low)
4. Ukukhanya Okubomvu
5. Black Light (UV)

Image: The magnetic rotary switch on the Wurkkos DL07, showing the intuitive controls for power and cycling through various light modes.

7. Isondlo

• Ukuhlanza: After each dive, rinse the flashlight thoroughly with fresh water to remove salt and debris. Wipe dry with a soft cloth.
• O-rings: Regularly inspect the O-rings for any signs of damage (cracks, nicks, dirt). Apply silicone grease to the O-rings periodically to maintain their elasticity and ensure a proper seal. Replace damaged O-rings immediately using the provided spares.
• Ukunakekelwa kwebhethri: Store the battery in a cool, dry place when not in use. Avoid fully discharging the battery for extended periods. Charge the battery fully before long-term storage.
• Isitoreji: Store the flashlight in a dry, well-ventilated area away from direct sunlight and extreme temperatures.

8. Ukuxazulula izinkinga

9. Imininingwane

10. Iwaranti kanye Nokusekela

The Wurkkos DL07 Diving Flashlight comes with a Iwaranti yomkhiqizi yezinyanga eziyisi-12. For any product inquiries, technical support, or warranty claims, please contact Wurkkos directly.

Imininingwane Yokuxhumana Nomkhiqizi: Wurkkos

Please refer to the official Wurkkos website or your purchase documentation for the most up-to-date contact details and warranty policy.
