BASETBL Ergonomic Office Chair User Manual

Isingeniso

Thank you for choosing the BASETBL Ergonomic Office Chair. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new chair. Please read it thoroughly before use and retain it for future reference.

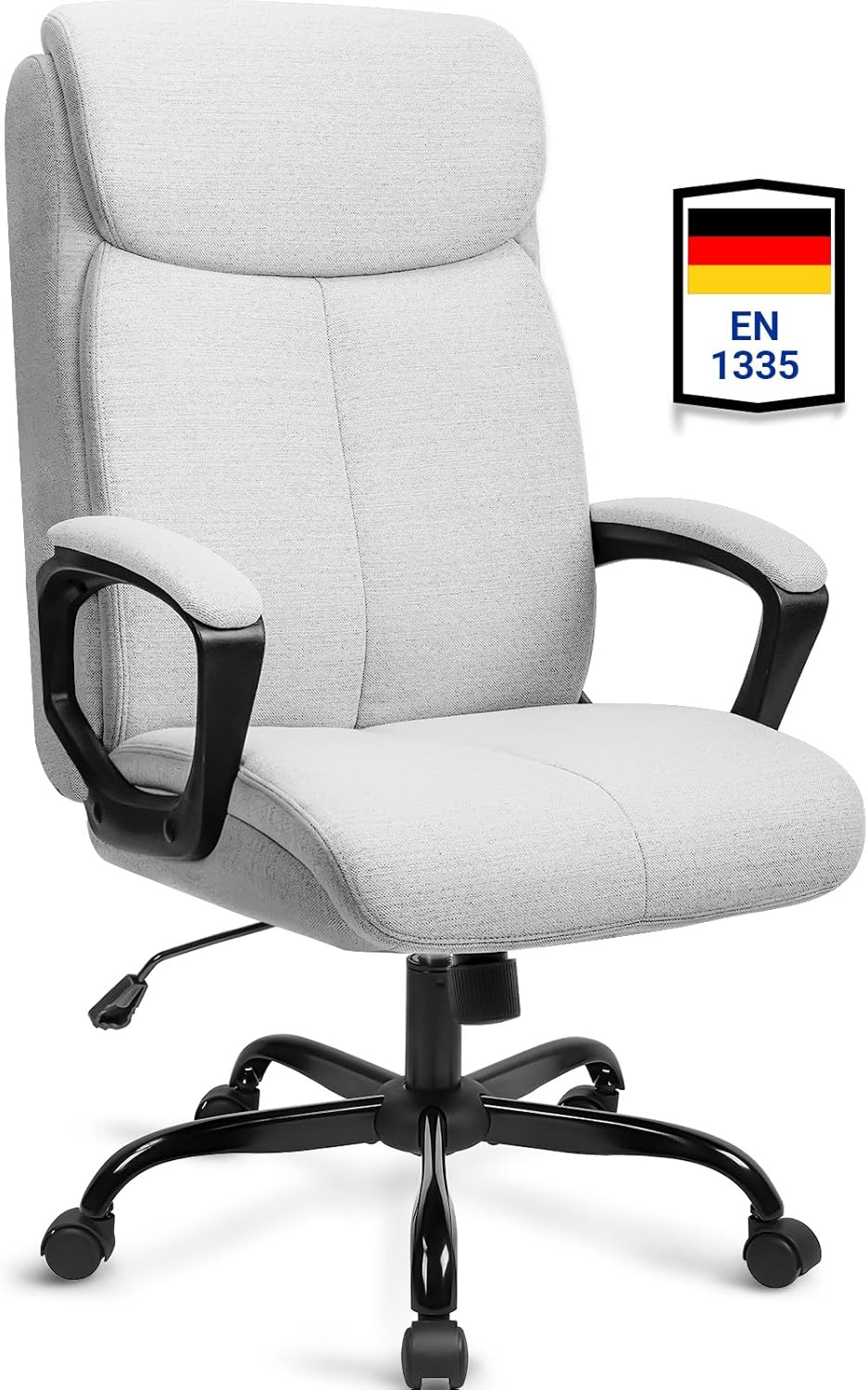

Image: The BASETBL Ergonomic Office Chair in grey, featuring a high backrest, padded armrests, and a five-star base with casters.

Ulwazi Lokuphepha

Isexwayiso: This product requires proper assembly to ensure user safety. Please follow the assembly instructions carefully. Also, observe the recommended maximum weight for safe use of this chair.

• Qinisekisa ukuthi zonke izingxenye zikhona futhi azilimele ngaphambi kokuhlanganisa.
• Ungasebenzisi isihlalo uma kukhona izingxenye ezingekho noma ezonakele.
• Ungeqi umthamo omkhulu wokulayisha ongu-150 kg (330 lbs).
• Gcina izingane nezilwane ezifuywayo kude ngesikhathi somhlangano.
• Use the chair only on a flat, stable surface.
• Gwema ukuma esihlalweni noma ukusisebenzisa njengesitebhisi.

Ukusetha nokuhlanganisa

Your BASETBL office chair is designed for easy assembly. All necessary tools and detailed instructions are provided. No additional tools are required.

Yini EseBhokisini:

• Office Chair Components (Backrest, Seat, Armrests, Gas Lift, Base, Casters)
• Ihadiwe Yokuhlanganisa (Ama-screw, Ama-washer, i-Allen Key)
• Iziyalezo Zomhlangano

Qaphela: The armrests and other accessories are conveniently stored within the chair's backrest. Unzip the backrest cover to access them.

Image: Diagram showing the chair's components, including the backrest with accessories stored inside, the seat, mechanism, gas lift, base, casters, and hardware.

Izinyathelo Zomhlangano:

1. Khipha zonke izingxenye futhi uqinisekise ngokumelene nohlu lwezingxenye.
2. Namathisela ama-caster esisekelweni sezinkanyezi ezinhlanu ngokuwacindezela ngokuqinile emigodini.
3. Insert the gas lift into the center hole of the five-star base.
4. Attach the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the "FRONT" arrow on the mechanism points towards the front of the seat.
5. Beka isihlalo esihlanganisiwe esiliftini segesi.
6. Attach the armrests to both the seat and the backrest using the provided screws. It may be easier to attach the armrests to the backrest first, then attach the combined unit to the seat.
7. Qinisa zonke izikulufo ngokuphephile. Ungaqinisi kakhulu.

Imiyalelo yokusebenza

The BASETBL office chair offers several adjustment features to customize your seating experience for optimal comfort and ergonomic support.

Image: Diagram illustrating the chair's adjustable features, including height adjustment, tilt angle (90° to 110°), tilt tension, and 360° swivel.

Ukuphakama Kwesihlalo Okulungisekayo:

To adjust the seat height, pull the lever located on the right side of the seat upwards. While holding the lever, stand up to raise the seat or remain seated to lower it. Release the lever at the desired height. The seat height can be adjusted by approximately 10 cm.

Umsebenzi Wokuthambekela Nokulawula Ukucindezeleka:

The chair features a tilt function, allowing the backrest to recline between 90° and 110°. To activate the tilt, pull the lever on the left side of the seat outwards. Push it inwards to lock the backrest in an upright position.

Adjust the tilt tension by rotating the round knob located underneath the seat, at the front of the mechanism. Turn clockwise to increase tension (making it harder to recline) and counter-clockwise to decrease tension (making it easier to recline).

Umsebenzi we-Swivel:

The chair offers a full 360° swivel function, allowing for easy rotation without moving the base.

Idizayini ye-Ergonomic:

The chair's ergonomic design, including the soft headrest and contoured backrest, provides comfortable support for your neck, back, and lumbar region, promoting good posture during long periods of sitting.

Image: Close-up of the chair's backrest and seat, highlighting the ergonomic shape, breathable fabric, and waterfall cushion design for comfort and support.

Isondlo

Regular maintenance will extend the life and performance of your BASETBL office chair.

• Ukuhlanza: Wipe fabric surfaces with a soft, damp cloth. For stubborn stains, use a mild fabric cleaner and follow the product instructions. Do not use harsh chemicals or abrasive cleaners.
• Ukuhlola izingxenyekazi zekhompuyutha: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary to prevent wobbling or noise.
• Caster Cleaning: Remove any hair or debris that may accumulate around the casters to ensure smooth rolling.
• I-Gas Lift: The gas lift is maintenance-free. Do not attempt to disassemble it.

Ukuxazulula inkinga

Imininingwane

Image: Technical drawing showing the dimensions of the BASETBL F005 office chair, including seat height, width, depth, backrest height, and overall dimensions, along with a maximum load capacity of 150 kg (330 lbs).

• Ibhrendi: BASETBL
• Inombolo Yemodeli: F005
• Umbala: Okumpunga
• Ubukhulu bomkhiqizo: 47 x 52 x 117 cm (cishe 18.5 x 20.5 x 46 amayintshi)
• Isisindo Sento: 13.7 Amakhilogremu (cishe 30.2 lbs)
• Umthamo omkhulu wokulayisha: 150 kg (330 lbs)
• I-Gas Lift: Ikilasi 3
• Ama-Casters: Robust Nylon, 360° Swivel
• Isitayela Sasemuva: Upholstered Back
• Izitifiketi: EN 1335-1:2020, TÜV, SGS

Izici Eziyinhloko:

• Comfortable Support with soft, elastic sponge backrest and thick padding.
• Ergonomic design with adjustable seat height (10 cm range) and tilt tension control.
• Breathable, heat-dissipating technical fabric for comfort.
• High safety standards with robust five-claw base and Class 3 gas lift.
• Easy assembly with all tools provided.

Iwaranti kanye Nokusekela

BASETBL is committed to providing high-quality products and excellent customer service.

• Isiqinisekiso: This product comes with a 2-year warranty, exceeding industry standards.
• Ukushintshwa kwezinsiza: In case of any product issues, we offer free replacement of accessories.
• Insizakalo yekhasimende: Our professional customer service team is available to assist you. We aim to respond to all inquiries within 24 hours.
• Othintana naye: For support, please refer to the contact information provided with your purchase or visit the official BASETBL webindawo.
