Peg Perego Gaucho XP Electric Off-Road Vehicle

1. Isingeniso

Thank you for choosing the Peg Perego Gaucho XP Electric Off-Road Vehicle. This manual provides essential information for the safe assembly, operation, and maintenance of your vehicle. Please read it thoroughly before use and keep it for future reference. This vehicle is designed for children aged 3 years and older, with a maximum weight capacity of 60 kg.

Ulwazi Olubalulekile Lokuphepha: Adult supervision is required at all times. Ensure all users understand the operating instructions and safety precautions. Do not operate near roads, steep inclines, or water. Always wear appropriate safety gear.

2. Ukusetha nokuhlanganisa

Assembly of the Peg Perego Gaucho XP is required. Follow the detailed instructions provided in the separate assembly guide included with your product. Ensure all components are securely fastened before initial use.

2.1. Ukushaja ibhethri

The 24V/8Ah/200Wh battery is included. Before first use, fully charge the battery for at least 18 hours, but no more than 24 hours. Subsequent charges should be 10-12 hours. The battery can be recharged directly in the vehicle or by removing it and using the included charger. Always use the original Peg Perego charger.

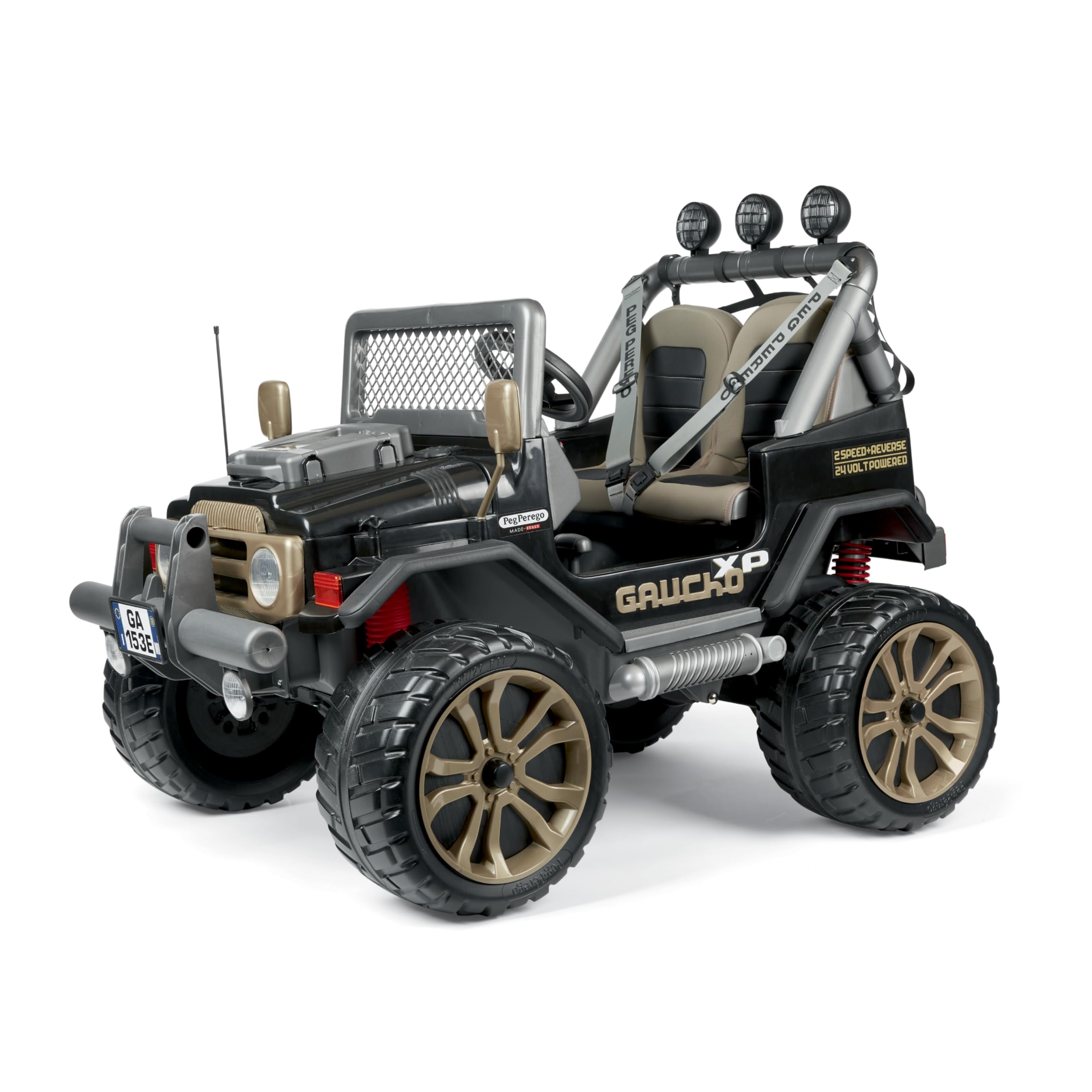

Image: The Peg Perego Gaucho XP Electric Off-Road Vehicle shown with its dimensions: 131 cm length, 90 cm width, and 108 cm height. It also indicates a maximum load capacity of 60 kg and suitability for ages 3 and up.

3. Iziqondiso Zokusebenza

3.1. Ukuqala Nokushayela

To start the vehicle, ensure the battery is connected and fully charged. The vehicle features two forward speeds (4 km/h and 8 km/h) and one reverse speed. The higher speed (8 km/h) can be locked for younger drivers for added safety.

Image: Close-up of the vehicle's gear shifter, indicating options for two forward speeds (4 km/h and 8 km/h) and reverse. The text also notes that the higher speed can be locked.

3.2. Pedal Operation

The vehicle uses a single pedal for both acceleration and braking. Press the pedal to accelerate. Releasing the pedal will automatically engage a smooth braking action, bringing the vehicle to a stop.

Isithombe: Ukuvala view of the single pedal, which functions as both accelerator and brake. The textured surface ensures good grip for the foot.

3.3. Izici

• Izibani ze-LED: Real LED lights automatically turn on when the vehicle starts and turn off automatically.
• Multifunction FM Radio: Includes 4 pre-recorded melodies, FM radio functionality, MP3 input, micro SD slot, and USB port.
• Izihlalo Ezilungisekayo: Independent and adjustable seats with soft faux leather and fabric covers, equipped with independent adjustable seat belts.
• Ibhokisi lamathuluzi: A functional toolbox is integrated, containing a hammer, ratchet, wrench, and dual-purpose screwdriver for imaginative play.

Image: The interior of the vehicle showing two independent, adjustable seats with soft covers and individual seat belts. Overhead, three auxiliary lights are visible.

Isithombe: A view of the integrated toolbox located on the hood of the vehicle, open to reveal toy tools including a hammer, ratchet, wrench, and screwdriver.

3.4. Off-Road Capability

The Gaucho XP is designed for off-road adventures with treaded tires, high ground clearance, and shock absorbers. It can handle dirt paths and difficult terrains, including slopes up to 17%.

Isithombe: Side view of the Peg Perego Gaucho XP, highlighting its robust design, large treaded tires, and high ground clearance, suitable for off-road use.

4. Isondlo

4.1. Ukunakekelwa Kwebhethri

• Always recharge the battery after each use.
• Ungavumeli ibhethri ukuthi liphume ngokugcwele.
• If storing the vehicle for an extended period, fully charge the battery and then recharge it every three months to maintain its lifespan.
• The average battery life is approximately 5 hours of continuous use, depending on terrain and driving style.

4.2. Ukuhlanza Nokugcina

Hlanza imoto ngesikhangisoamp cloth. Do not use abrasive cleaners or solvents. Store the vehicle in a dry place, away from direct sunlight and extreme temperatures.

5. Ukuxazulula izinkinga

If the vehicle does not operate correctly, check the following:

• Vehicle not moving: Ensure the battery is fully charged and properly connected. Check all electrical connections.
• Amandla ancishisiwe noma isivinini: The battery may need recharging. Check for obstructions in the wheels or motors.
• Lights or radio not working: Check battery charge. Ensure connections are secure.

Uma izinkinga ziqhubeka, sicela uxhumane nokwesekwa kwamakhasimende.

6. Imininingwane

7. Iwaranti kanye Nokusekela

7.1. Ulwazi Lwewaranti

This product is covered by a warranty. Availability of spare parts in the EU is guaranteed for 2 years. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.

7.2. Ukwesekwa Kwamakhasimende

For technical assistance, spare parts, or any questions not covered in this manual, please contact Peg Perego customer support. Refer to the contact information provided on the product packaging or the official Peg Perego webindawo.
