I-JVC KD-T812BT I-CD Receiver Manual

Isingeniso

This manual provides detailed instructions for the safe and efficient operation of your JVC KD-T812BT CD Receiver. Please read this manual thoroughly before using the product and keep it for future reference. This unit features integrated Alexa, Bluetooth hands-free calling and audio streaming, a high-performance tuner, sound processor, USB, AUX, and Spotify Control.

Setha

Ukukhipha kanye Nokuqukethwe Kwephakheji

Carefully remove all items from the packaging. Ensure all components are present before proceeding with installation.

• KD-T812BT Main Unit
• Iphaneli yangaphambili
• Uzimele wangaphambili
• Installation Sleeve
• I-ISO Wiring Harness
• Release Hooks (2x)
• Imakrofoni

Ukufakwa

Professional installation is recommended for optimal performance and safety. Refer to the included wiring harness diagram for correct connections. Ensure the vehicle's battery is disconnected before starting installation.

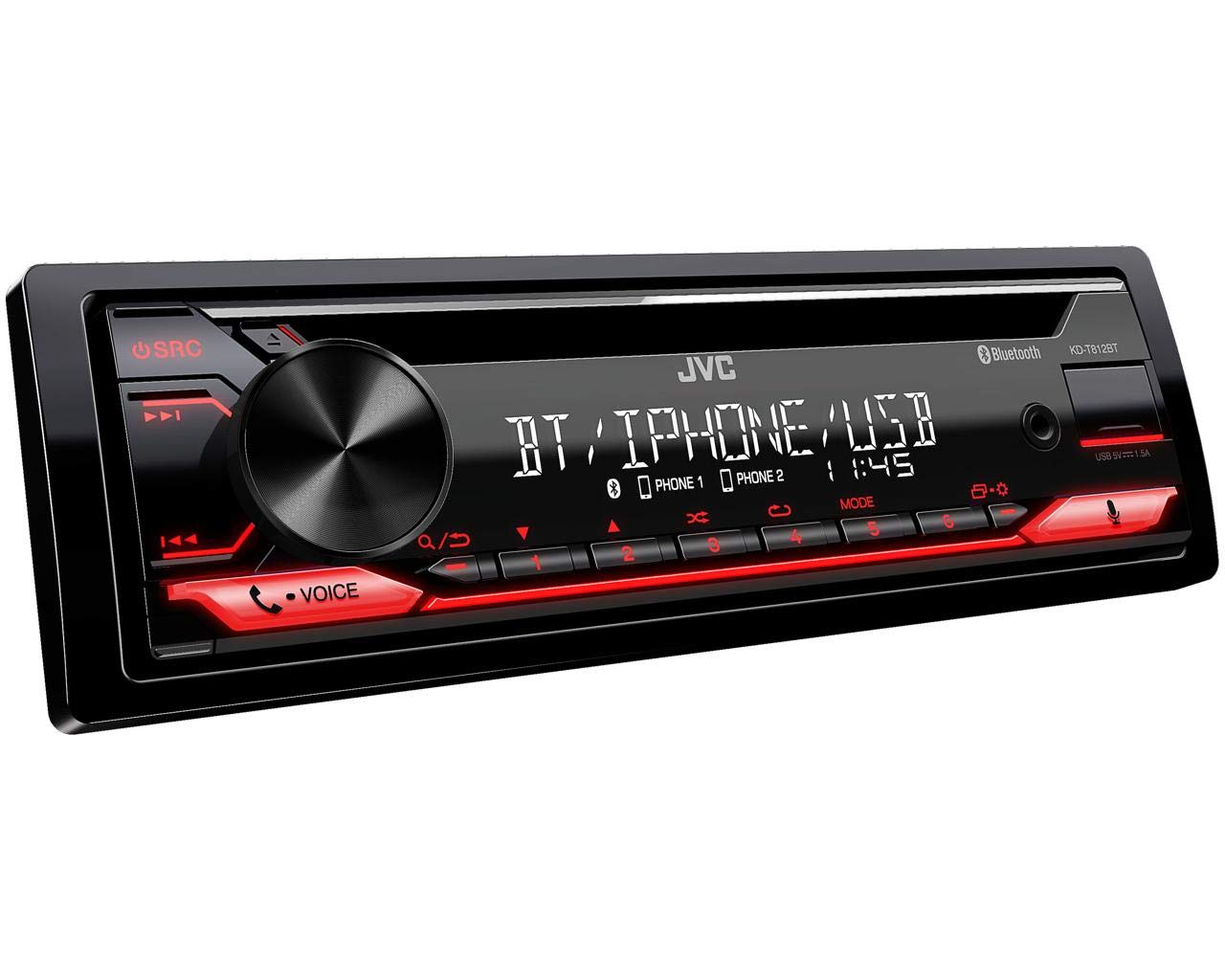

Umfanekiso 1: Ngaphambili view of the JVC KD-T812BT CD Receiver. This image shows the main display, control knob, source button, and various function buttons with red illumination.

Umfanekiso 2: Ngemuva view of the JVC KD-T812BT CD Receiver, illustrating the wiring harness connector, antenna input, and RCA pre-out connections.

Amandla Okuqala Avuliwe

1. Ngemva kokufaka, xhuma kabusha ibhethri lemoto.
2. Cindezela inkinobho I-SRC inkinobho ukunika amandla iyunithi.
3. Follow the on-screen prompts for initial setup, including language selection.

Ukubhanqa kwe-Bluetooth

To use Bluetooth features, you must pair your smartphone with the receiver.

1. Vula i-Bluetooth ku-smartphone yakho.
2. On the KD-T812BT, navigate to the Bluetooth menu.
3. Khetha "Ukumatanisa" noma "Usesho Lwedivayisi".
4. Select "KD-T812BT" from your smartphone's Bluetooth device list.
5. Qinisekisa ikhodi yokubhanqa kuwo womabili amadivayisi uma ucelwa.
6. Up to two phones can be connected simultaneously for hands-free calls, and up to five smartphones for audio playback.

Figure 3: Illustration representing the Bluetooth hands-free calling feature, highlighting wireless connectivity for communication.

Uhlelo lokusebenza olukude lwe-JVC

Download the JVC Remote App from your smartphone's app store to control the receiver directly from your device.

Figure 4: Icon representing the JVC Remote App, which allows smartphone control of the receiver.

Imiyalelo yokusebenza

Izilawuli Eziyisisekelo

• Vula/Vala: Cindezela inkinobho I-SRC button. Hold to turn off.
• Ukulawula ivolumu: Rotate the large central knob.
• Ukukhethwa komthombo: Cindezela inkinobho I-SRC button repeatedly to cycle through sources (CD, USB, Tuner, Bluetooth Audio, AUX).
• Ukuzulazula kwemenyu: Use the central knob and surrounding buttons to navigate menus.

Ukudlala I-CD

1. Insert a CD into the disc slot with the label side up. The unit will automatically begin playback.
2. Sebenzisa i- Yeqa izinkinobho (<< / >>) to change tracks.
3. Cindezela inkinobho Misa isikhashana/Dlala inkinobho yokumisa isikhashana noma uqalise kabusha ukudlala.
4. To eject a CD, press the Khipha inkinobho.

Ukudlala nge-USB

Connect a USB storage device to the USB port. The unit supports AAC, MP3, WMA, WAV, and FLAC audio formats. The USB port also provides 1.5A charging for smartphones.

Figure 5: Logo indicating compatibility with iPhone and iPod devices for direct connection via USB.

Figure 6: Icon illustrating the USB port's capability to provide up to 1.5A charging current for connected devices.

I-Radio Tuner

Select the Tuner source. Use the Funa buttons to find stations. Press and hold to auto-seek. Store your favorite stations using the preset buttons (1-6).

• I-RDS (Isistimu Yedatha Yomsakazo): Displays station information, program type, and traffic announcements where available.
• Inkumbulo yesiteshi: The unit supports 18 FM and 6 MW station presets.

Ukusakazwa kwe-Bluetooth Audio

Once paired, select Bluetooth Audio as the source. You can stream music from your smartphone. The advanced AVRCP 1.6 profile allows for convenient searching of individual music tracks directly from the car stereo.

Ukushaya Ngezandla

When a paired phone receives a call, the unit will display caller information. Use the Phendula futhi Qeda Ucingo buttons on the unit to manage calls. The external microphone ensures clear communication.

Ukuhlanganiswa kwe-Alexa

With the Alexa app installed on your smartphone and connected via Bluetooth, you can use voice commands for various functions, including playing music, checking traffic, creating shopping lists, and getting news updates.

Figure 7: Logo indicating the integration of Amazon Alexa voice services within the receiver.

Spotify Control

Connect your smartphone running the Spotify app via Bluetooth or USB. You can then control Spotify playback directly from the receiver, including track selection and playlist browsing.

Figure 8: Logo representing the Spotify Control feature, allowing direct control of Spotify from the head unit.

Izilungiselelo Zomsindo

Access the sound menu to adjust audio settings:

• 13-Band Parametric iEQ: Allows precise adjustment of frequency response.
• DSP (Digital Signal Processor) with Time Alignment: Optimizes sound stagngokulungisa ukubambezeleka kwesikhulumi ngasinye.
• I-Crossover esebenzayo: Configures frequency ranges for connected speakers and subwoofers.

Figure 9: Icon representing the Digital Sound Processor (DSP) capabilities for advanced audio tuning.

Izilungiselelo zokubonisa

Adjust the brightness of the display and button illumination through the system settings menu. The unit features a 13-digit VA LCD display for good readability.

Isondlo

Ukuhlanza Iyunithi

Wipe the unit's surface with a soft, dry cloth. For stubborn dirt, use a cloth lightly dampened with water. Avoid using abrasive cleaners or solvents, as they can damage the finish.

Ukuhlanza ama-CD

Handle CDs by their edges. If a CD is dirty, wipe it gently from the center outwards with a soft, lint-free cloth. Do not use solvents or abrasive cleaners.

Ukuxazulula inkinga

If you encounter issues with your KD-T812BT, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact JVC customer support.

Imininingwane

Ulwazi Lwewaranti

Lo mkhiqizo umbozwe yi-a Iwaranti yomkhiqizi yonyaka ongu-2Sicela ugcine ubufakazi bakho bokuthenga ukuze uthole izimangalo zewaranti. Iwaranti imboza amaphutha ezintweni zokwakha kanye nokwakhiwa kwayo ngaphansi kokusetshenziswa okuvamile. Ayimbozi umonakalo obangelwe ukusetshenziswa kabi, ingozi, ukuguqulwa okungagunyaziwe, noma ukufakwa okungafanele.

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official JVC webindawo.

Ukwesekwa Kwamakhasimende

For further assistance, technical support, or service inquiries, please contact JVC customer support. You can find contact information on the official JVC webisayithi noma kumadokhumenti anikezwe nomkhiqizo wakho.

Before contacting support, please have your product model number (KD-T812BT) and purchase details ready.

I-JVC Esemthethweni Webindawo: www.jvc.com
