1. Isingeniso
This manual provides essential information for the proper installation, operation, and maintenance of your JVC CS-DR621 6.5-inch 2-Way Coaxial Car Speakers. Please read this manual thoroughly before use to ensure optimal performance and longevity of your speakers.
Figure 1.1: JVC CS-DR621 Car Speakers (Pair)
2. Izici zomkhiqizo
The JVC CS-DR621 speakers are designed for enhanced audio performance in vehicles, featuring:
- Carbon Mica Woofer Cone: A lightweight yet durable material that provides smooth sound with accurate low frequencies.
- Hybrid Woofer Surround: Combines the lightweight properties of cloth with the strength of rubber for efficient and durable performance in automotive environments.
- 1-inch Balanced Dome PEI Tweeter: Delivers clear and detailed high-frequency sound for vocals, guitars, and other instruments. The neodymium magnet ensures excellent detail and high power handling.
- Factory Fit Design: Engineered to fit seamlessly into many OEM speaker locations, providing an upgrade without extensive modifications.
- Ukuphatha Amandla Aphezulu: Capable of handling up to 300 watts of peak power, ensuring robust sound output.

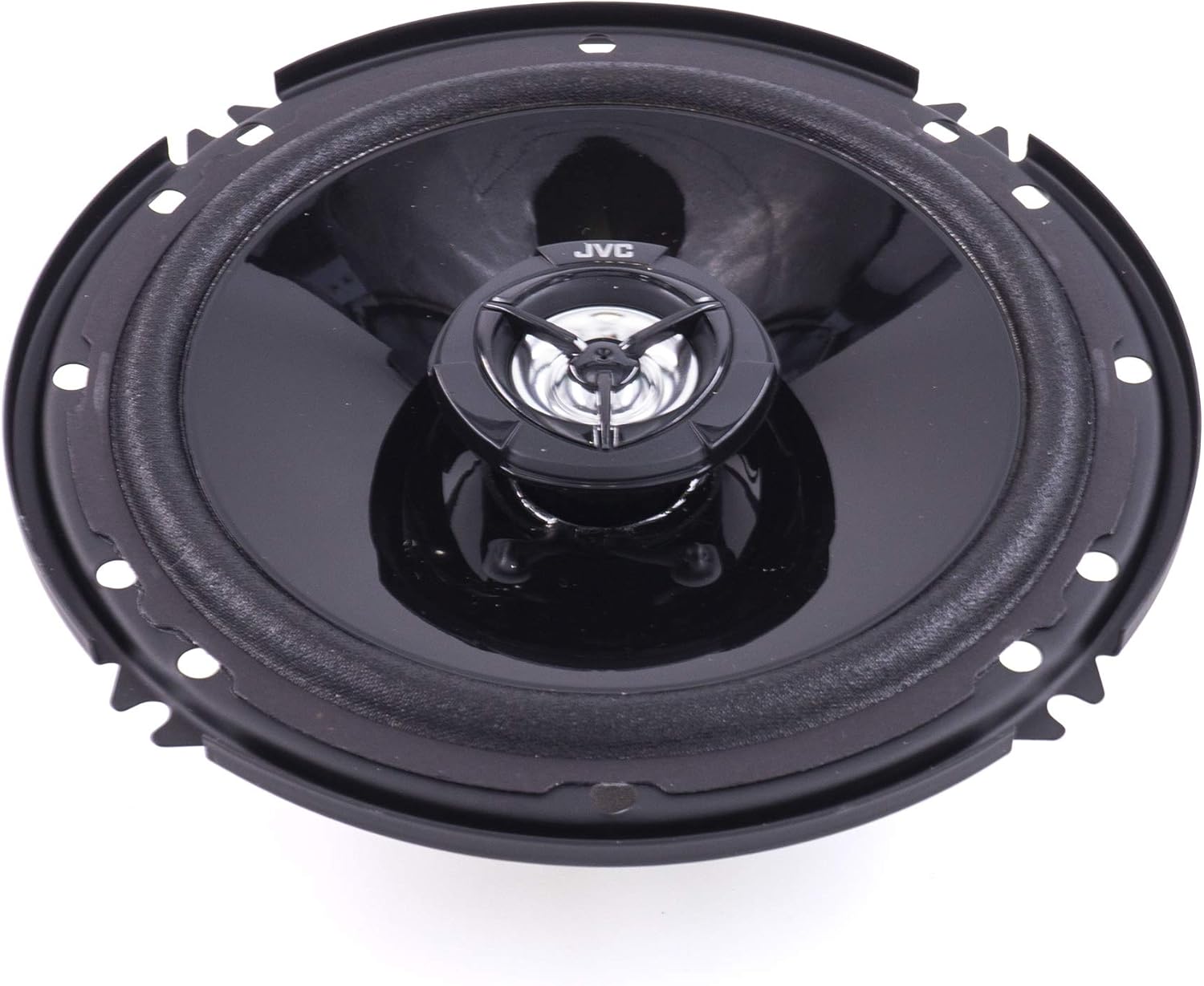

Figure 2.1: Speaker cone and tweeter detail
3. Okuqukethwe Kwephakheji
Qinisekisa ukuthi zonke izinto ezibalwe ngezansi zifakiwe kuphakheji yakho:
- (2) JVC CS-DR621 6.5-inch Coaxial Speakers
- (2) Ama-Speaker Grilles
- Mounting Screws and Clips
- Izintambo Zesipikha
- Incwadi Yokufundisa (le dokhumenti)
Figure 3.1: Included components in the JVC CS-DR621 package
4. Ukusetha nokufakwa
Ukufakwa kahle kubalulekile ukuze kube nekhwalithi yomsindo efanelekile kanye nobude besikhathi sesipika. Uma ungaqiniseki nganoma yiziphi izinyathelo, kutuswa ukuthi uthintane nomfaki womsindo wemoto ochwepheshe.
4.1 Ukulungiselela
- Ensure your vehicle's battery is disconnected before starting any electrical work.
- Gather necessary tools: screwdrivers, wire strippers, crimpers, drill (if new holes are needed), and safety glasses.
- Identify the speaker locations in your vehicle. The CS-DR621 speakers are designed for 6.5-inch openings.
4.2 Ubukhulu bokukhweza
The speakers have a mounting depth of approximately 1-3/4 inches (44.5 mm) and a mounting hole diameter of 4-15/16 inches (125.4 mm). Verify these dimensions against your vehicle's speaker openings to ensure a proper fit.
Umfanekiso 4.1: I-Side profile of the speaker, illustrating mounting depth
Izintambo
- Connect the speaker wires to the terminals on the back of the speaker. Ensure correct polarity (positive to positive, negative to negative).
- Route the speaker wires to your car's head unit or amplifier, ensuring they are secured and not exposed to sharp edges or moving parts.
- Connect the other end of the speaker wires to the corresponding outputs on your head unit or ampokokuphila.

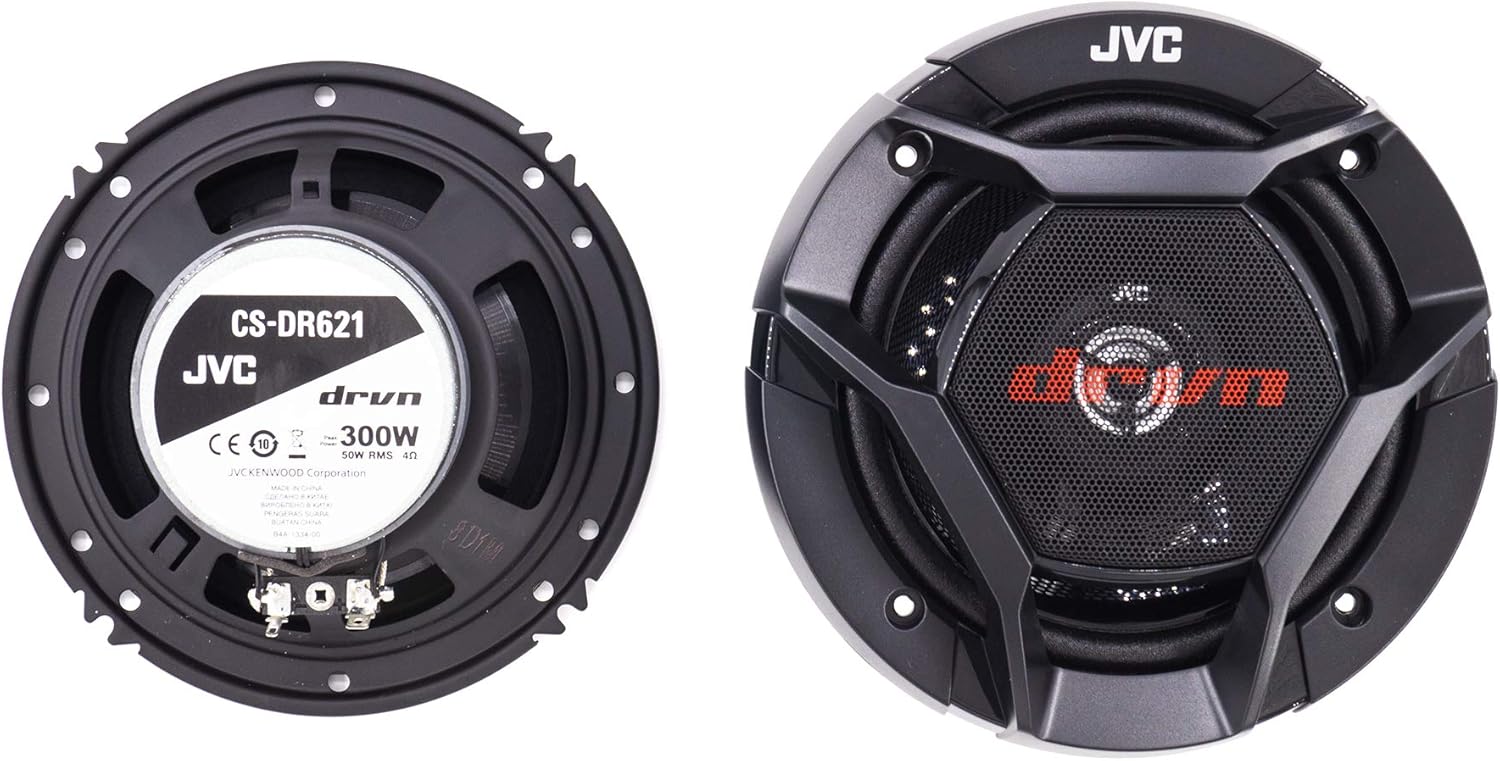

Figure 4.2: Speaker terminals for wiring connections
4.4 Izinyathelo Zokugcina
- Secure the speakers in place using the provided mounting screws.
- Attach the speaker grilles if desired.
- Reconnect your vehicle's battery.
5. Iziqondiso Zokusebenza
Once installed, your JVC CS-DR621 speakers will operate as part of your car's audio system.
- Turn on your car's head unit.
- Adjust the volume and audio settings (bass, treble, balance, fader) on your head unit to achieve your preferred sound.
- Avoid prolonged listening at extremely high volumes to prevent speaker damage and hearing loss.
- Uma usebenzisa yangaphandle amplifier, ensure its gain settings are properly matched to your head unit's output to prevent distortion.
6. Isondlo
The JVC CS-DR621 speakers are designed for durability. Regular maintenance is minimal but can help preserve their appearance and performance.
- Ukuhlanza: Use a soft, dry cloth to wipe down the speaker grilles and surrounds. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the speaker cone or voice coil area.
- Gwema Amakhemikhali: Do not use harsh detergents, solvents, or abrasive cleaners, as these can damage the speaker materials.
- Ukuchayeka Kwemvelo: While designed to withstand typical automotive conditions, extreme temperatures or direct prolonged exposure to water should be avoided where possible.
7. Ukuxazulula izinkinga
Uma uhlangabezana nezinkinga ngezikhulumi zakho, bheka izinkinga nezixazululo ezilandelayo ezivamile:
| Inkinga | Imbangela Engenzeka | Isixazululo |
|---|---|---|
| Awukho umsindo ovela kuzipikha | Loose or incorrect wiring connections; head unit not powered on; fader/balance settings incorrect. | Check all speaker wire connections for proper polarity and secure fit. Ensure head unit is on and outputting audio. Adjust fader/balance settings. |
| Umsindo ohlanekezelwe noma ongacacile | Overpowering speakers; incorrect amplifier gain settings; damaged speaker wire; speaker impedance mismatch. | Nciphisa ivolumu. Hlola amplifier gain settings. Inspect speaker wires for damage. Ensure speakers are connected to a compatible head unit/amplifier (4 Ohm impedance). |
| Impendulo ye-bass ebuthakathaka noma engekho | Incorrect head unit/amplifier settings (e.g., high-pass filter enabled); phase issues; speaker box/mounting issues. | Check head unit or amplifier settings for proper bass and crossover configurations. Ensure speaker wires are connected with correct polarity. Verify secure speaker mounting. |
If the problem persists after trying these solutions, contact JVC customer support or a qualified car audio technician.
8. Imininingwane
| Isici | Imininingwane |
|---|---|
| Inombolo Yemodeli | I-CS-DR621 |
| Uhlobo lwesipika | 2-Way Coaxial |
| Usayizi wesipika | Amasentimitha angu-6.5 (Ububanzi be-Woofer) |
| Ukuphatha Amandla Okuphakeme | 300 Watts |
| Ukuphathwa kwamandla kwe-RMS | 100 Watts |
| Impedance | 4 ohm |
| Impendulo Yemvamisa | 85 Hz kuya ku-23.8 kHz |
| Ukuzwela | 89db |
| Ukujula Kokukhweza | 1-3/4 amayintshi |
| I-Mounting Hole Diameter | 4-15/16 amayintshi |
| I-Woofer Material | Carbon Mica |
| I-Tweeter Material | I-Polyetherimide (PEI) |
| Impahla Ebiyelwe | Carbon Mica, Polyetherimide, Cloth, Rubber, Plastic |
| Isisindo sento | 1.2 Pounds (per speaker, approximate) |
| I-GTIN / UPC | 046838079764 |
9. Iwaranti kanye Nokusekela
Your JVC CS-DR621 Car Speakers come with a limited manufacturer's warranty.
- Isikhathi sewaranti: 1 Year Manufacturer's Warranty.
- Ukufakwa: This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, negligence, or unauthorized modification.
- Isimangalo sewaranti: For warranty service, please retain your proof of purchase and contact JVC customer support. Do not attempt to repair the product yourself.
For further assistance, technical support, or to inquire about warranty claims, please visit the official JVC webisayithi noma uxhumane nomnyango wabo wesevisi yamakhasimende.
