CHANZON 1W Deep Red Plant Grow Light LED Chips (10 Pieces) - Model 10DGL-DZ-1W-660 Instruction Manual

1. Isingeniso

This manual provides essential information for the safe and effective use of your CHANZON 1W Deep Red Plant Grow Light LED Chips. These high-power SMD COB emitter diodes are designed for DIY hydroponic and flower growing lamp applications, providing a deep red light spectrum (650nm-660nm) optimal for plant growth. Each pack contains 10 pieces of 1-watt LED chips.

Image 1.1: A single CHANZON 1W Deep Red LED chip, showing its compact design and the deep red light it emits.

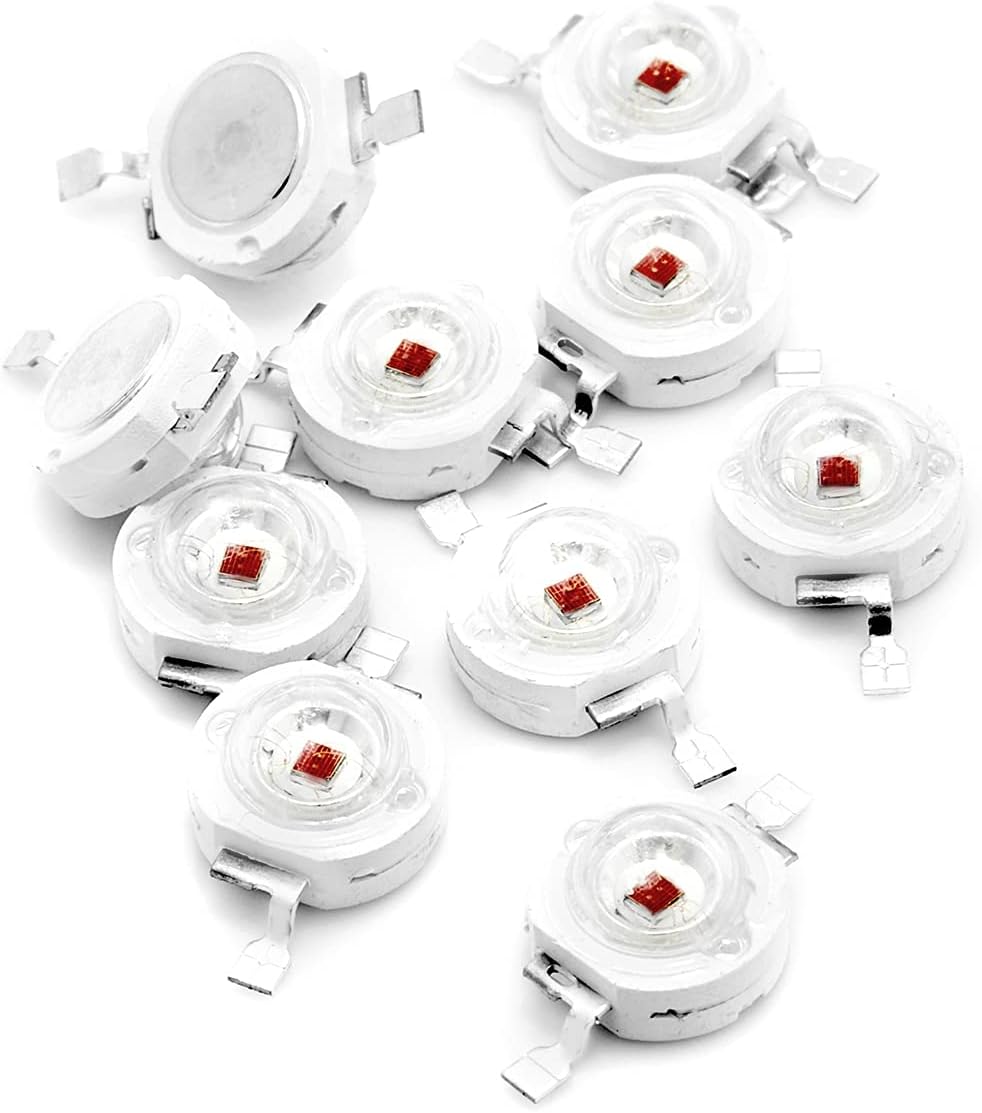

Image 1.2: A pack of 10 CHANZON 1W Deep Red LED chips, as supplied for DIY projects.

2. Ulwazi Lokuphepha

Please read and understand all safety instructions before installing or operating the LED chips. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ukuphatha Ukushisa: These high-power LEDs generate heat. Ensure the working temperature remains below 60°C (140°F) by using an adequate heat sink system. Prolonged operation without proper heat dissipation will significantly reduce the lifespan of the LED and may cause failure.
• Ukunikezwa kwamandla kagesi: Always use a constant current LED driver that matches the recommended current (300mA-350mA) and voltage (2.0V-2.2V) specifications for these 1W LEDs. Using an incorrect power supply can damage the LEDs.
• I-polarity: Observe correct polarity when connecting the LEDs. The side with the "-" mark is the cathode, and the other side is the anode. Incorrect polarity will prevent the LED from lighting up and may cause damage.
• Ukuvikelwa Kwamehlo: The light emitted by these LEDs is very bright. Avoid looking directly into the illuminated LED chip to prevent potential eye strain or damage.
• Ukuphepha Kagesi: Ensure all electrical connections are secure and insulated to prevent short circuits. If you are unsure about electrical wiring, consult a qualified electrician.

3. Imininingwane

The following table details the technical specifications for the CHANZON 1W Deep Red Plant Grow Light LED Chips:

Image 3.1: General specification table for various 1W LED chip colors, including Deep Red.

Image 3.2: Detailed dimensions of the 1W LED chip, showing measurements in millimeters.

4. Setha

Proper setup is crucial for the performance and longevity of your LED chips.

4.1 Required Components (Not Included)

• Constant Current LED Driver: Essential for providing stable power. Recommended drivers (search on Amazon):
  • 300mA Aluminum Case Waterproof: B01MYBFR7U
  • 300mA Plastic Case: B01N25KD0R
  • 300mA No Case (PCB Board only): B01MUDW3VF
• Heat Sink System: A heat sink is mandatory to dissipate heat and maintain the LED's operating temperature below 60°C. Recommended accessory (search on Amazon):
  • LED Heat Sink Star Aluminum Base Plate: B06XKPNRWL
• Thermal Grease/Paste: Apply between the LED chip and the heat sink for efficient heat transfer.
• Izintambo: Appropriate electrical wires for connections.

4.2 Izinyathelo Zokufaka

1. Prepare the Heat Sink: Ensure the heat sink surface is clean and flat.
2. Faka I-Thermal Paste: Apply a thin, even layer of thermal grease or paste to the back of the LED chip or the contact area on the heat sink.
3. Mount the LED: Securely attach the LED chip to the heat sink. Ensure good contact for optimal heat transfer.
4. Xhuma Izintambo: Identify the anode (+) and cathode (-) terminals on the LED chip. The cathode is marked with a "-". Connect the positive output of the constant current LED driver to the LED's anode and the negative output to the LED's cathode.
5. Qinisekisa Ukuxhumana: Double-check all connections for correct polarity and secure wiring.

Image 4.1: Illustration of the 1W LED chip's internal structure, showing the copper holder, gold wires, and polarity markings (cathode '-' and anode '+').

5. Iziqondiso Zokusebenza

Once properly installed, operating the LED chips is straightforward.

1. Vula: Connect the constant current LED driver to its power source. The LED chips should illuminate.
2. Gada izinga lokushisa: During operation, periodically check the temperature of the heat sink. It should not feel excessively hot to the touch. If it is too hot, the heat sink may be insufficient, or the LED driver might be supplying too much current.
3. Okuphumayo Okukhanyayo: The deep red light (650nm-660nm) is specifically chosen to support plant photosynthesis, particularly during the flowering and fruiting stages.

Image 5.1: The characteristic deep red light emitted by the 660nm LED chip when powered on.

6. Isondlo

Minimal maintenance is required to ensure optimal performance and lifespan of your LED chips.

• Ukuhlanza: Keep the surface of the LED chip and heat sink free from dust and debris. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
• Heat Sink Inspection: Periodically inspect the heat sink for any obstructions that might impede airflow or heat dissipation.
• Ukuhlola Ukuxhumana: Qinisekisa ukuthi zonke izixhumanisi zikagesi zihlala ziphephile futhi azinawo ugesi.

7. Ukuxazulula izinkinga

If you encounter issues with your LED chips, refer to the following troubleshooting guide:

8. Iwaranti kanye Nokusekela

Specific warranty information for this product is not provided in the available product data. For any support inquiries, technical assistance, or questions regarding warranty, please contact CHANZON directly through their official channels or the retailer from whom the product was purchased.
